If a Trunnion Assembly for your rotary table is something that you would like more information about, please find below Trunnion Assembly Order Forms that show the standard trunnion options we offer, as well as the information we would require for custom sized trunnions.

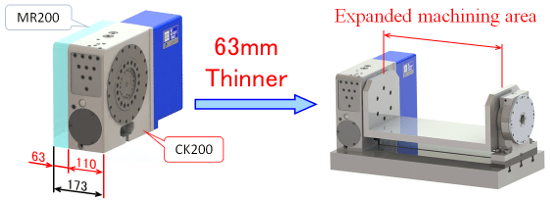

If you are unsure if your machining centre is large enough to support a trunnion assembly, it is worth looking at Kitagawa’s CK range of rotary tables. Currently available with either 160mm or 200mm faceplates, their ultra compact body size makes them uniquely designed for use with a trunnion, giving you a much expanded machining area when compared to a standard rotary table. The CK range are also available with in-built rotary joints, granting the ability to actuate workholding on the trunnion itself without any extraneous piping getting in the way.
If you would like to discuss Kitagawa Rotary Tables any further, you can contact us on 01725 512517 or enquiries@1mta.com to speak to one of our technical engineers, or arrange a FREE visit from one of our technical representatives. We look forward to hearing from you.
