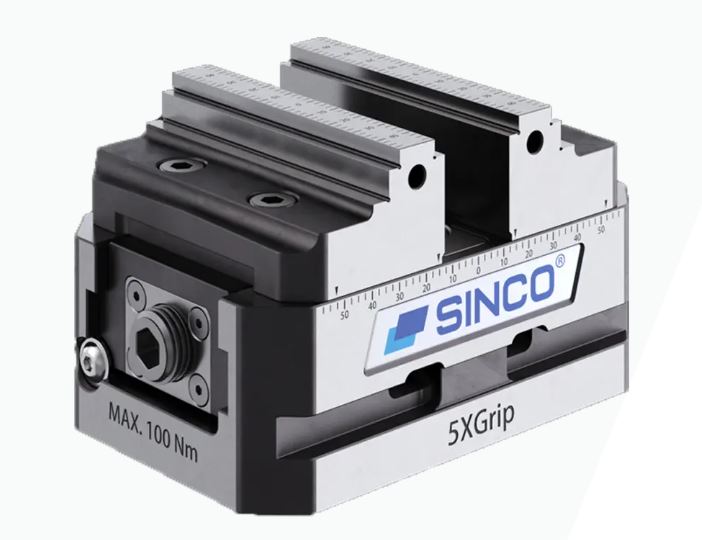

5XGrip Centering Vise
5XGrip Centering Vise
Key Features
- · Special spindle encapsulation system with numerous seals. · Special sealing nuts at the spindle end.
- · Actuation through hexagon nut with a wrench and fine pre-adjustment possible with hexagon socket on the other side. . Two types of jaws: raw grip for the setup of raw material and smooth jaws for the second setup.
- · Four M10 thread holes with recess ɸ12.50 for centering on the underside in pattern 50x50 mm· Two holes ɸ12.50 for dowel pins on the underside, at the longitudinal axis, 100.00 mm over the center.
- · Thread holes M6 available on the jaw sides enable mounting of Workpiece end-stops. · 6 Additional holes can be added on the underside to fit clamping on other systems.
Description
Introducing the 5XGRIP centering Vise - a powerful, precise, and reliable clamping Vise, specially designed for use on multi-axis machining centres, zero-point pallet and automation systems. Boasting a compact yet robust design, the 5XGRIP ensures collision-free 5-axis machining while providing optimal workpiece accessibility. As a centric mechanical clamping Vise, the 5XGRIP does not require a force amplifier and is manually operated for ease of use. It is the ideal tool for high-precision serial production, thanks to its modular reversible jaw design and enclosed spindle, which ensures superior clamping precision and reliability. In addition, the threaded spindle is encapsulated with a unique sealing system, making it highly reliable for use on dirt-intensive machining jobs and ensuring a long serVise life. The 5XGRIP's short and flat design boasts high clamping force, thanks to the integration of a large thread spindle. Furthermore, the Vise’s jaws are designed to be optimally supported with extra wide and sturdy jaw guidance, which allows for unparalleled clamping precision and high clamping forces. With the 5XGRIP centering Vise, you can rest assured that your machining operations will be both efficient and precise.
