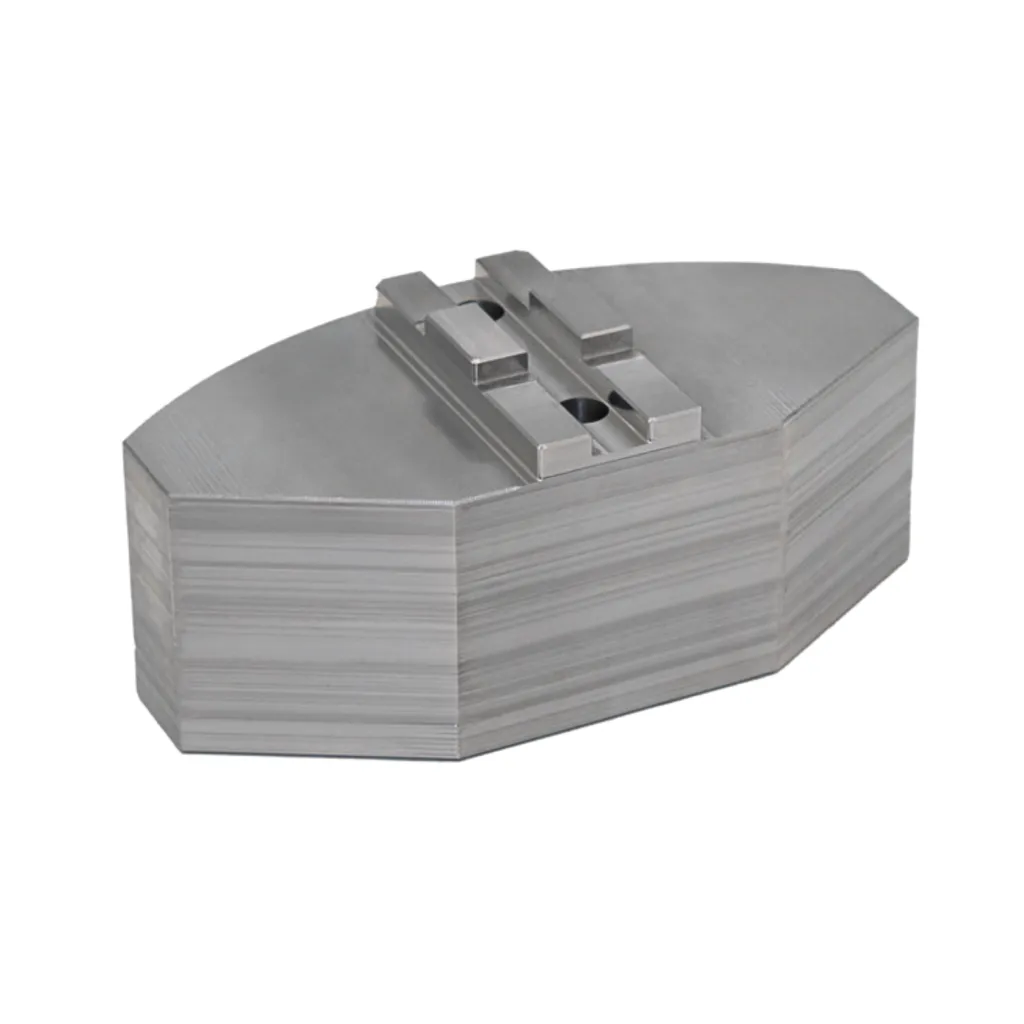

Aluminium Pie Jaws 10 Inch Power Chuck

Set of 3 Pie Jaws Metric Tongue and Groove

Key Features

  • 360 Degree Wrap Around for Distributing Force Evenly
  • Wide range of Heights and Diameters
  • More Lightweight to reduce Centrifugal Force
  • Prevents tri-lobing in thin walled components

Description

Aluminium cross tennon pie jaws to suit a 10 Inch power chuck. Jaws are manufactured from 6061 Aluminium. Pie jaws create a full wrap around to reduce the potential for marking and deformation.

Estimated delivery: 7-10 Working Days (subject to availability)

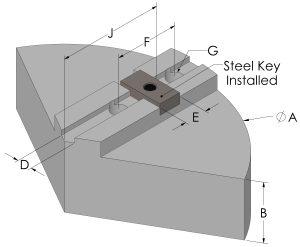

Dimensions

# Part No Diameter (mm) Height (mm) Tennon Slot (mm) Tongue (mm) Pitch (mm) Bolt Size Price
1 3542-A 250 60 12 20 40 M12 £413.00
