B Series (with Adaptor)

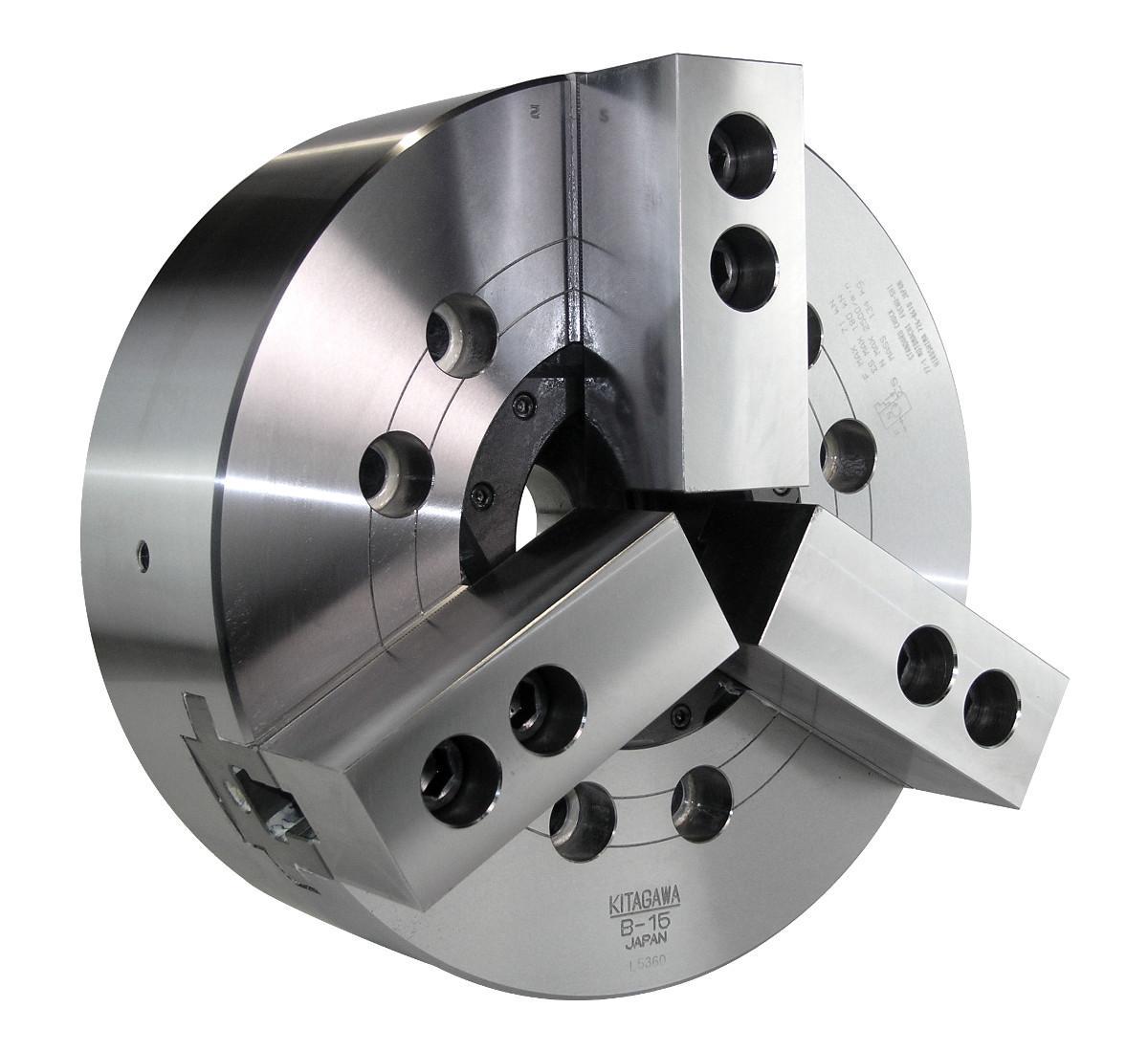

Large 3 Jaw Power Chucks with Adaptor Plates
Key Features
- Compatible with large, readily available, range of jaws
- Allows for holding of larger components
- Upto 20% more speed and grip force than conventional chuck
- Standard Accessories Available
Description
Kitagawa chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks. These larger style chucks provide the higher grip forces required for doing large work. B-A series chucks are supplied with a blank drawnut as standard with a set of T-nuts and adaptor plate.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | B15A8 | A2-8 | 117.5 | 10.6 | 180 | 2500 |
|
£4,773.00 | ||
| 2 | B15A11 | A2-11 | 117.5 | 10.6 | 180 | 2500 |
|
£4,773.00 | ||
| 3 | B18A11 | A2-11 | 117.5 | 10.6 | 180 | 2000 |
|
£7,889.00 | ||
| 4 | B18A15 | A2-15 | 117.5 | 10.6 | 180 | 2000 | £7,877.00 | |||
| 5 | B21A11 | A2-11 | 140 | 10.6 | 234 | 1700 |
|
£10,539.00 | ||
| 6 | B21A15 | A2-15 | 140 | 10.6 | 234 | 1700 | £10,539.00 | |||
| 7 | B24A11 | A2-11 | 165 | 10.6 | 234 | 1400 | £12,121.00 |
