B200 Series (With Adaptor)

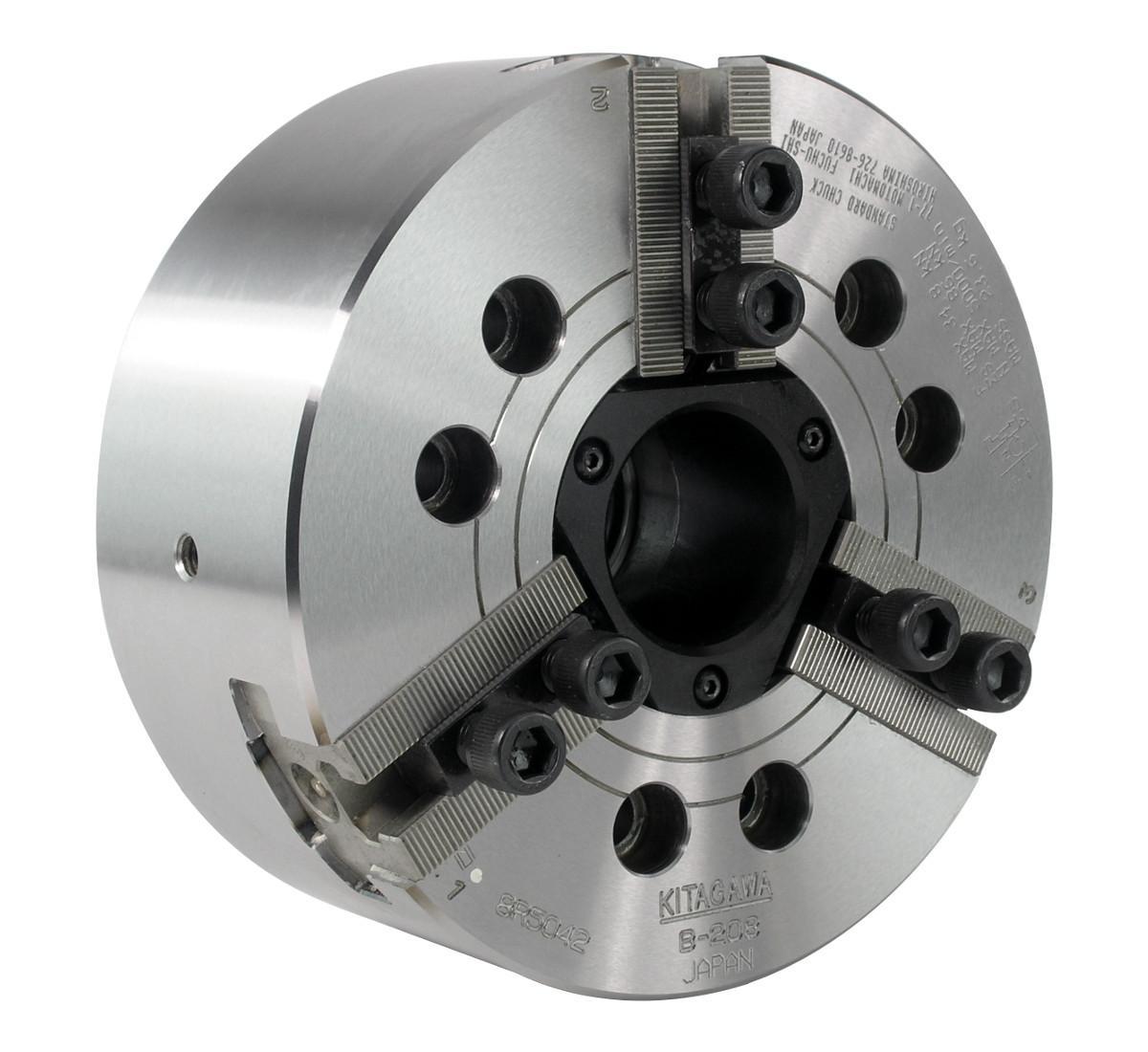

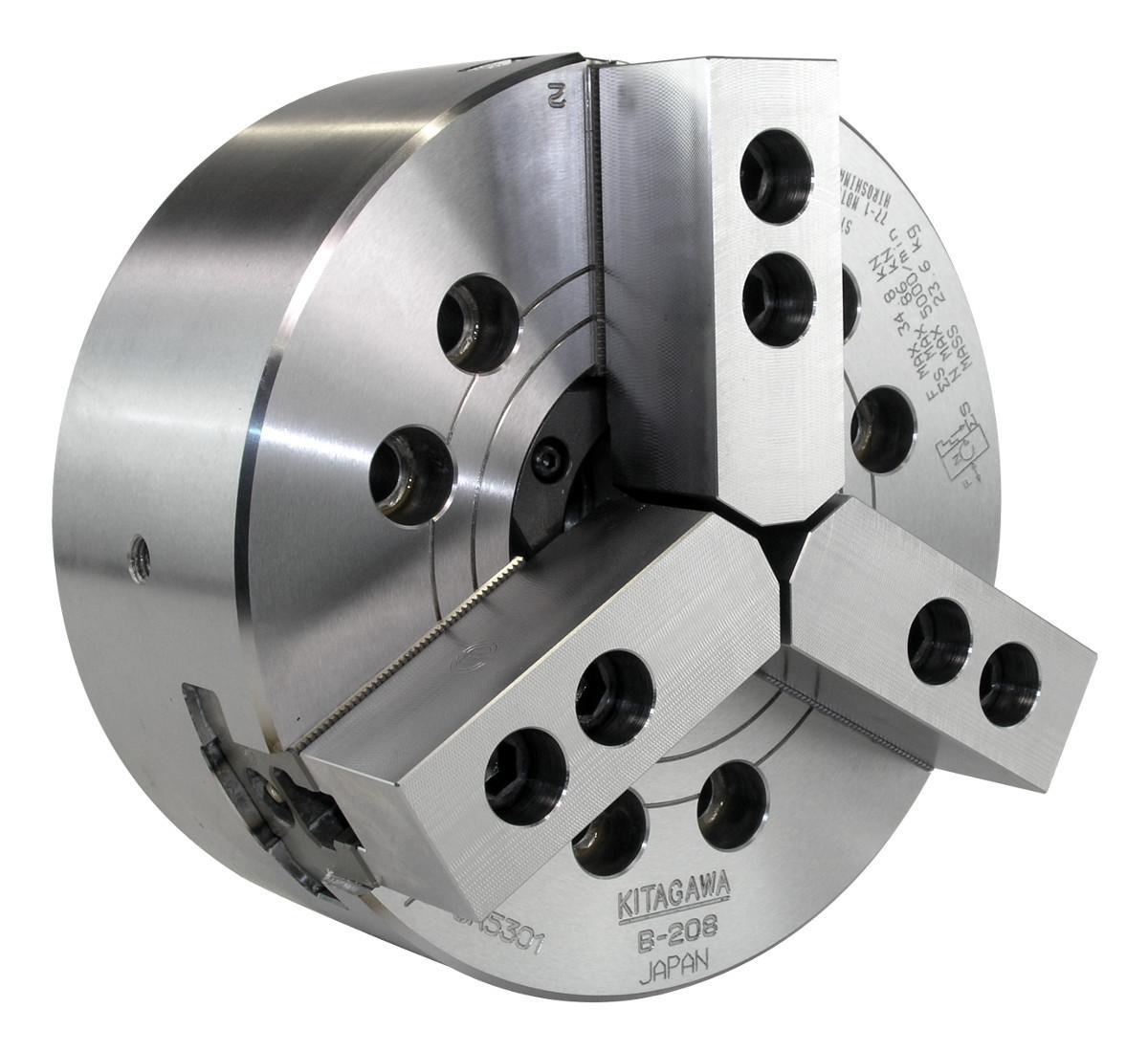

Standard 3 Jaw Power Chuck with Adaptor Plate
Key Features
- The Worlds Most Popular Chuck
- Compatible with large, readily available, range of jaws
- Upto 20% more speed and grip force than conventional chuck
- Standard Accessories Available
Description
Kitagawa's B200 Series (With Adaptor) chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks. These chucks are supplied with a spindle nose adaptor plate. B200A series chucks are supplied with a blank drawnut as standard with a set of T-nuts and an adaptor plate. Jaw Finder
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | B206A5 | A2-5 | 45 | 5.5 | 57 | 6000 |
|
£1,543.00 | ||
| 2 | B208A6 | A2-6 | 52 | 7.4 | 86 | 5000 |
|
£1,650.00 | ||
| 3 | B210A6 | A2-6 | 75 | 8.8 | 111 | 4200 |
|
£1,971.00 | ||
| 4 | B210A8 | A2-8 | 75 | 8.8 | 111 | 4200 |
|
£1,971.00 | ||
| 5 | B212A6 | A2-6 | 91 | 10.6 | 144 | 3300 |
|
£2,621.00 | ||
| 6 | B212A8 | A2-8 | 91 | 10.6 | 144 | 3300 |
|
£2,621.00 | ||
| 7 | B215A11 | A2-11 | 100 | 10.6 | 249 | 2800 | £6,423.00 |
