BB200 Series (With Adaptor)
Large Bore 3 Jaw Power Chuck with Adaptor Plate
Key Features
- Larger Bore to Accept Larger Components down the Spindle
- Compatible with large, readily available, range of jaws
- Upto 20% more speed and grip force than conventional chuck
- Industry Standard Large Bore 3 Jaw Chuck
Description

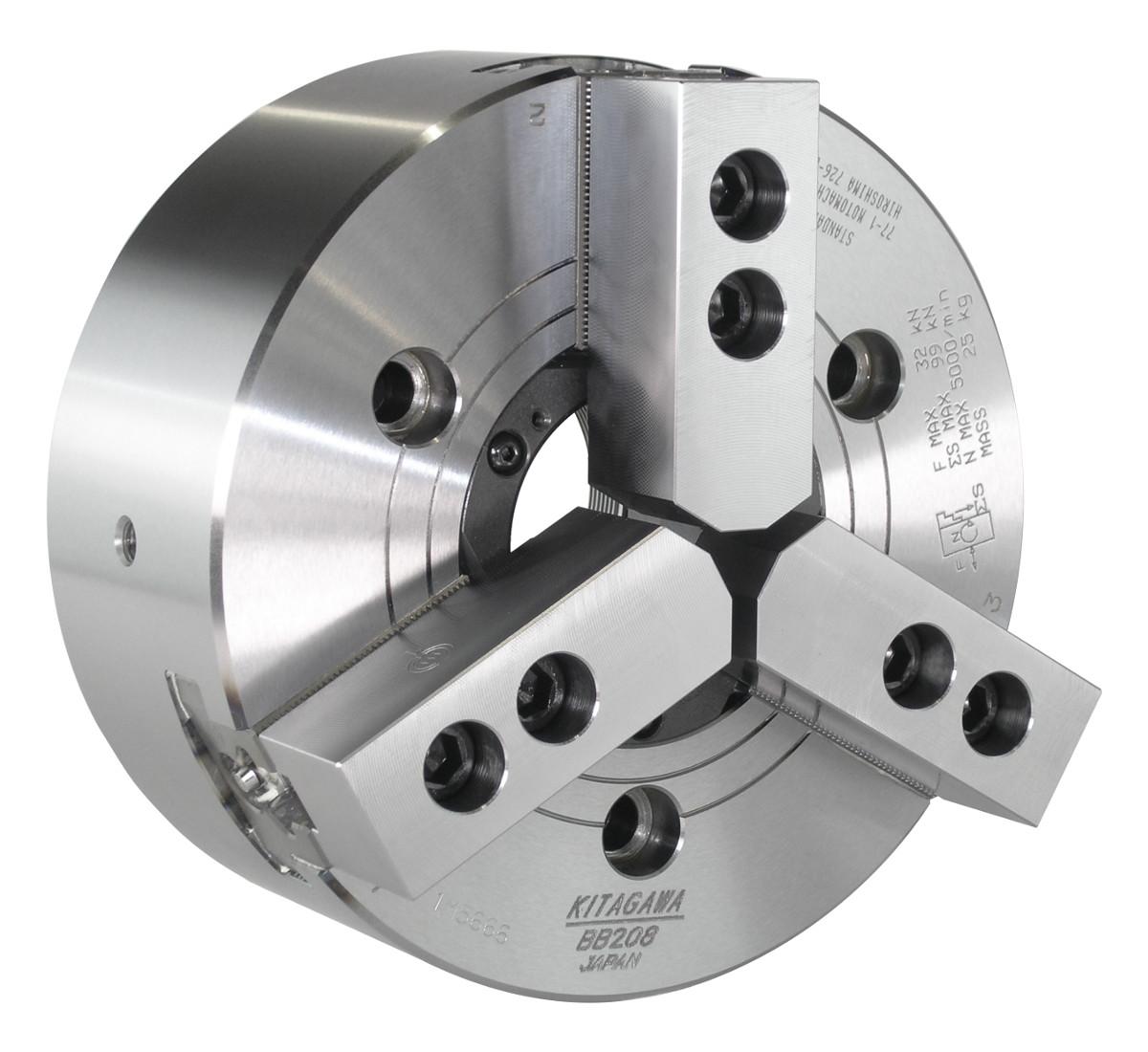

Kitagawa BB200 Series (With Adaptor) chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks. The BB series has a big bore to accept larger components down the Spindle. BB200A series chucks are supplied with a blank drawnut as standard with a set of T-nuts and an adaptor plate. Jaw Finder Kitagawa
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Drawings | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BB206A5 | A2-5 | 53 | 5.5 | 58.5 | 6000 |
|
||
| 2 | BB208A6 | A2-6 | 66 | 7.4 | 99 | 5000 |
|
||
| 3 | BB210A8 | A2-8 | 81 | 8.8 | 126 | 4500 |
|
||
| 4 | BB212A8 | A2-8 | 106 | 10.6 | 153 | 3500 |
|
||
| 5 | BB212A11 | A2-11 | 106 | 10.6 | 153 | 3500 |
