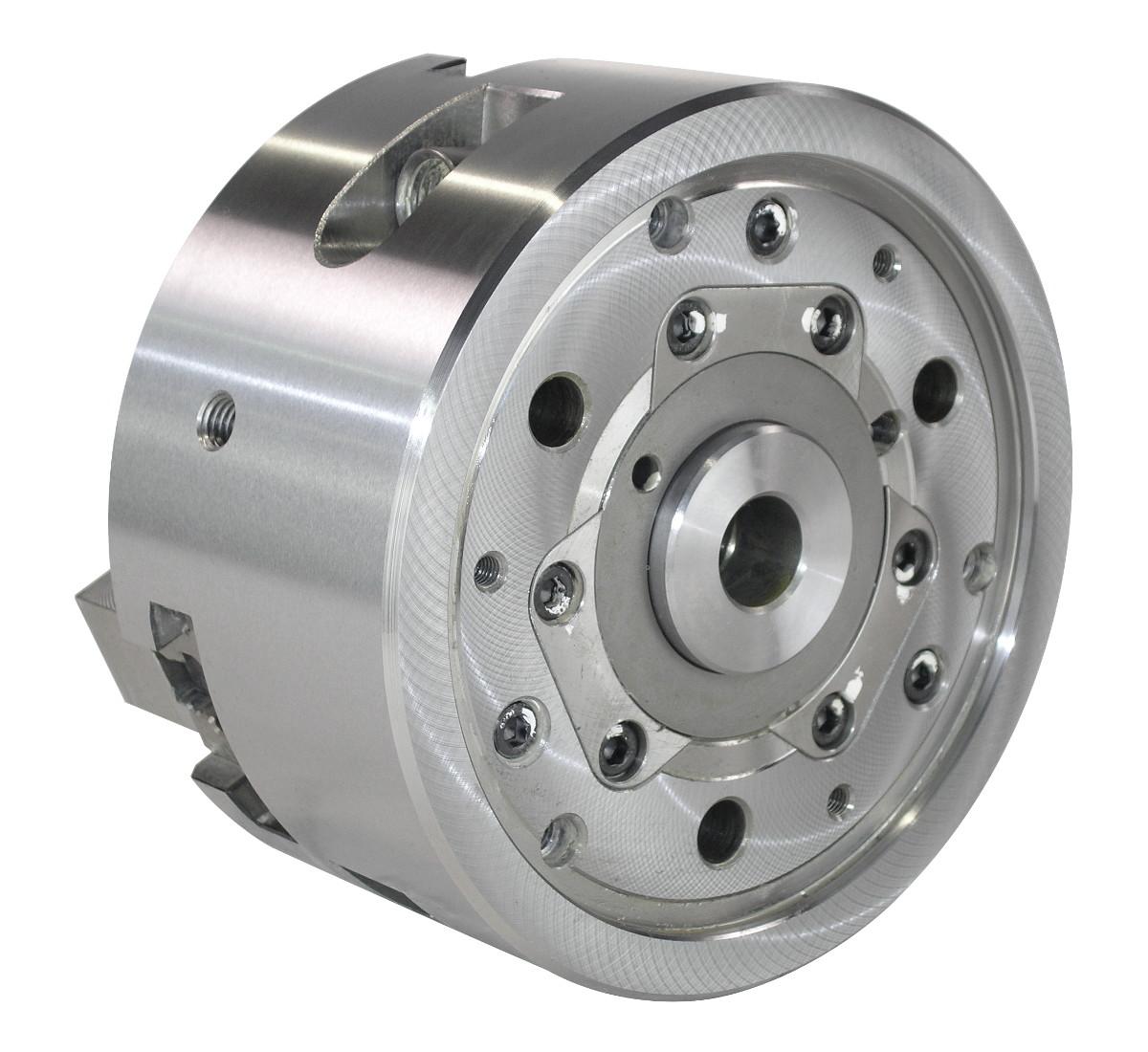

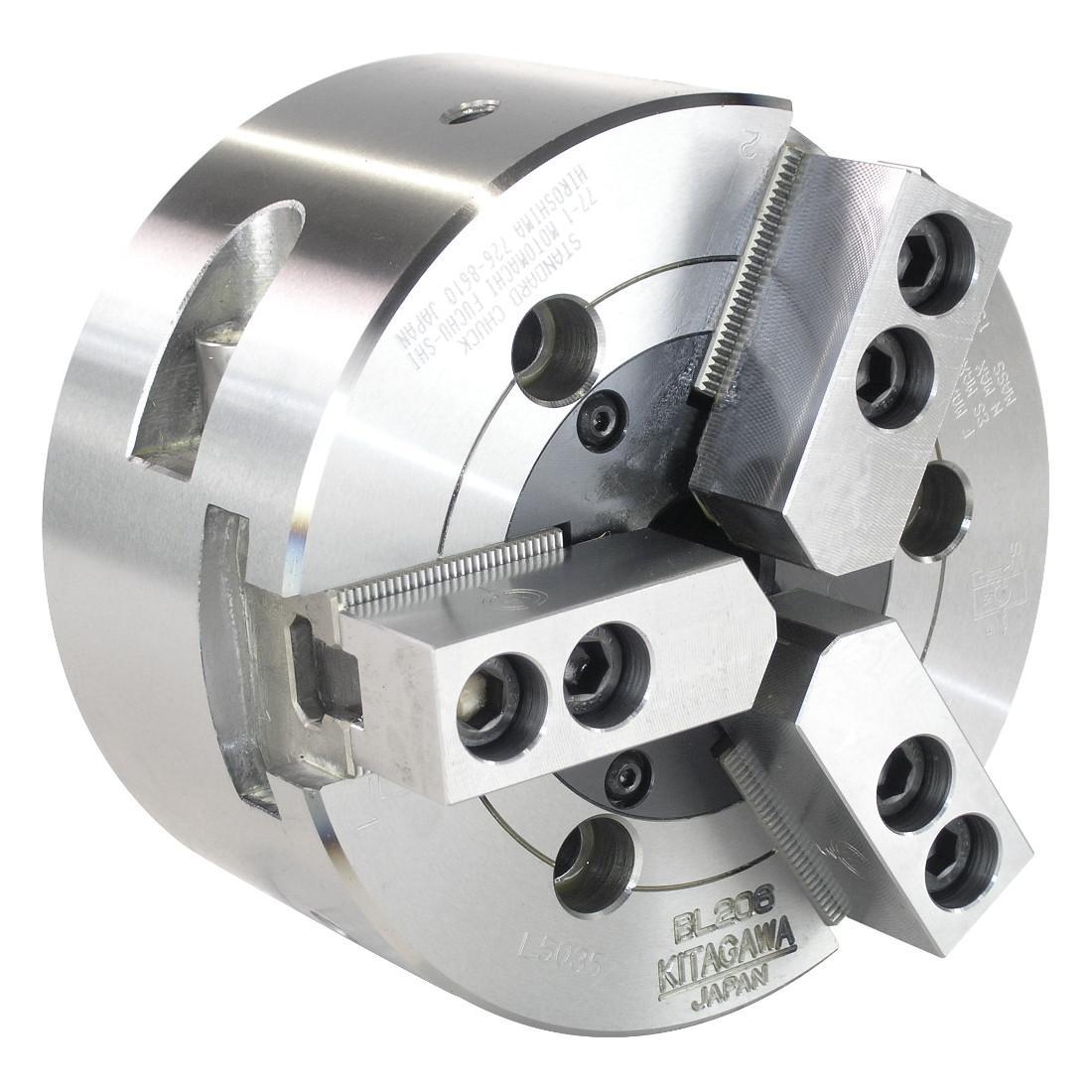

BL200 Series
3 Jaw Long Stroke Power Chuck
Key Features
- Lever style mechanism allows for increased jaw stroke
- Compatible with large, readily available, range of jaws
- Increased jaw stroke allow for flanged workpeices to be loaded past the jaws
- Standard Accessories Available
Description
Kitagawa chucks are manufactured from high grade alloy steel. The BL Series chucks have been designed with a lever style mechanism rather than the standard wedge to allow for increased jaw stroke. The increased jaw stroke allows for larger diameters to pass by the jaws then holding on a smaller diameter. This works well for products with stepped diameters or large flanges. BL200 series chucks are supplied with a blank drawnut as standard with a set of T-nuts
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BL206 | 28 | 20 | 31.2 | 4500 |
|
£4,499.00 | ||
| 2 | BL208 | 45 | 25 | 49 | 3300 |
|
£4,972.00 | ||
| 3 | BL210 | 53 | 30 | 63 | 3000 |
|
£5,802.00 | ||
| 4 | BL212 | 63 | 35 | 80.4 | 2200 |
|
£6,582.00 |
