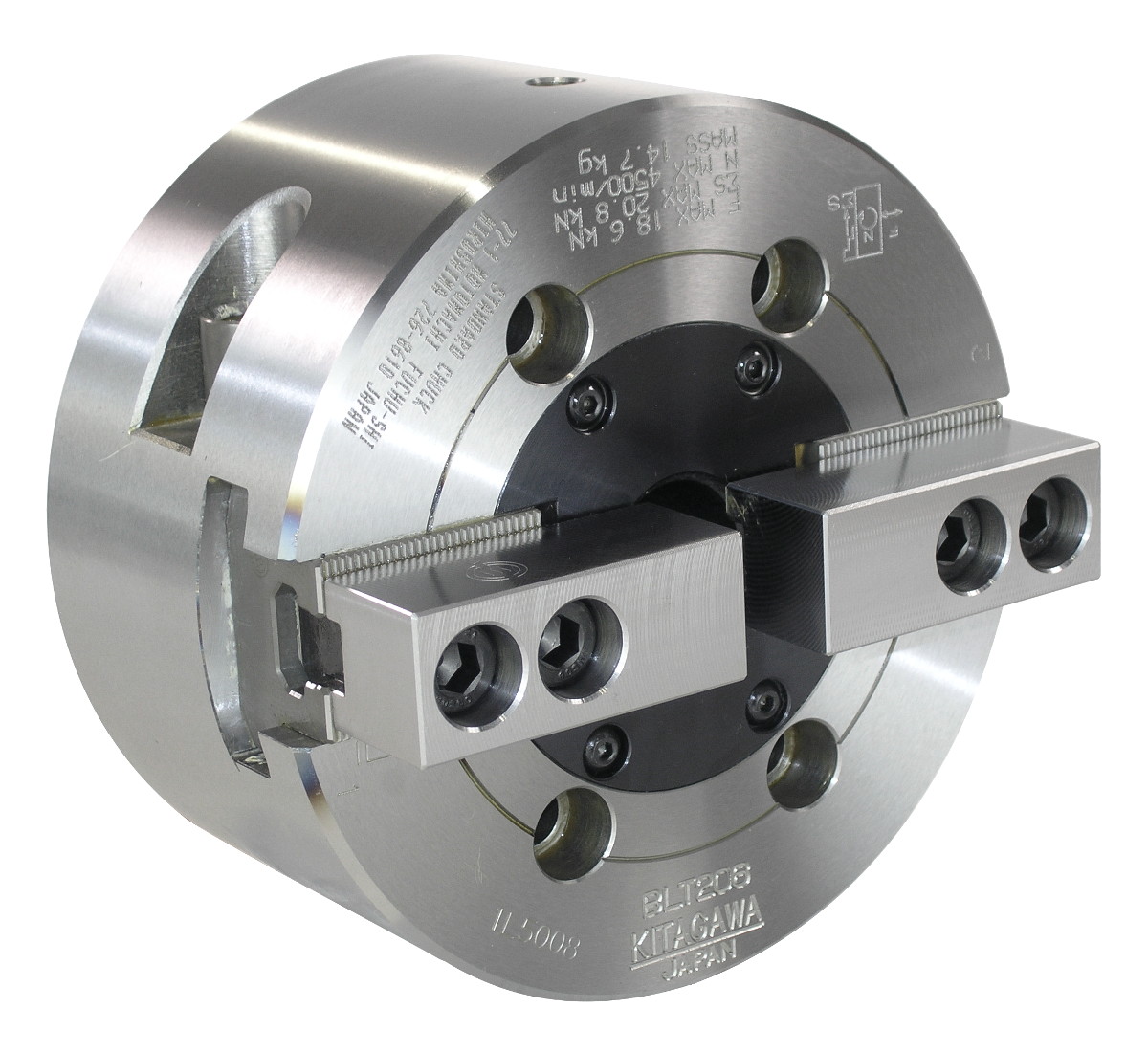

BLT Series (with Adaptor)
Long Stroke 2 Jaw Power Chuck with Adaptor Plate
Key Features
- Usefull for gripping irregular shaped components
- Lever style mechanism allows for increased jaw stroke
- Greater clearance for flanged workpeices
- Compatible with large, readily available, range of jaws
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa BLT series combines the advantages of level style and two jaw chucks, giving a perfect solution to abnormal flange work peices. BLT series chucks are supplied with blank drawnut, adapters and a set of t-nuts as standard.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BLT206A5 | A2-5 | 28 | 20 | 20.8 | 4500 | £4,689.00 | ||
| 1 | BLT208A6 | A2-6 | 45 | 25 | 32.7 | 3300 | £5,203.00 | ||
| 1 | BLT210A6 | A2-6 | 53 | 30 | 42 | 3000 | £6,119.00 | ||
| 1 | BLT210A8 | A2-8 | 53 | 30 | 42 | 3000 | £6,119.00 | ||
| 1 | BLT212A6 | A2-6 | 63 | 35 | 53.6 | 2200 | £6,895.00 | ||
| 1 | BLT212A8 | A2-8 | 63 | 35 | 53.6 | 2200 | £6,895.00 |
