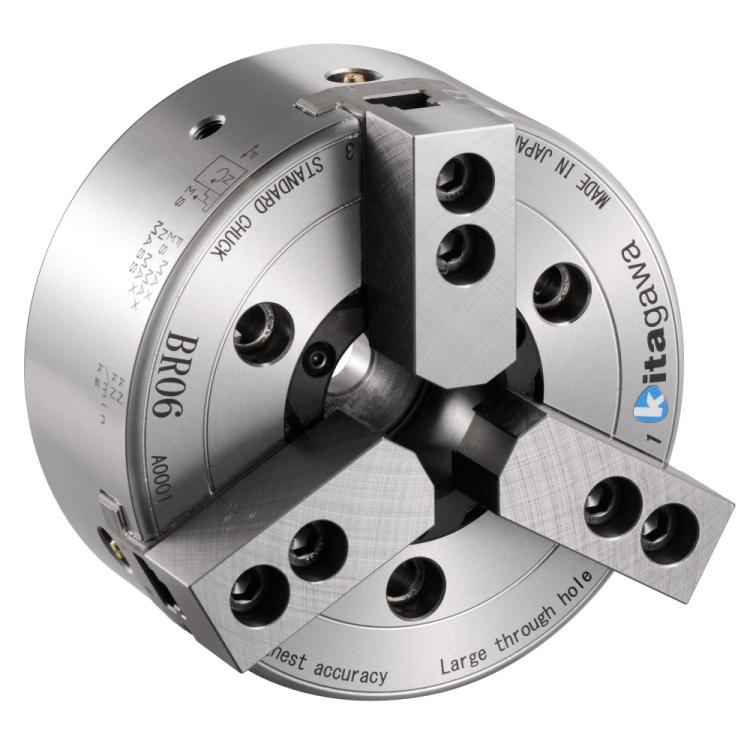

BR Series
High Precision Power Chuck
Key Features
- Gripping accuracy of 0.01 mm T.I.R. or less
- Reduced jaw-lift
- Interchangeable with Kitagawa B-200 and BB200 series

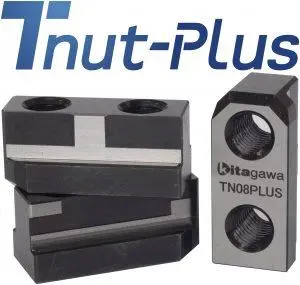

- With Tnut-Plus optional dedicated T-nuts, the repeatability of jaws at detaching and attaching is 0.01 mm T.I.R. or less
Description
The Kitagawa BR series is a large bore three jaw chuck also available with an Adaptor Plate . When coupled with T-nuts Plus a T.I.R of 0.01mm or less can be maintained to reduce setup times. The Chucks are supplied with a blank drawnut. Set of Soft Jaws and a set of standard T-nuts as standard. High Precision, Ultra-large Through-hole High-speed Power Chuck Chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, Gripping force and bore size when compared to conventional chucks. Easy to upgrade from existing chucks, Fully interchangeable with the Kitagawa B-200 and BB-200 series chucks. The only requirement is a new threaded drawtnut. The BR Series uses the same hydraulic cylinder. if changing size for size, allowing you to implement the best performance at the lowest cost also available without a adaptor plate https://www.1mta.com/product/br-series-with-adaptor-plate/ BR Series Chuck https://kitagawa.global/en/products/power-chucks/open-centre/br-high-accuracy-standard.html
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BR05 | 33 | 36 | 8000 |
|
£2,003.00 | ||
| 2 | BR06 | 53 | 58.5 | 6000 |
|
£1,753.00 | ||
| 3 | BR08 | 66 | 90 | 5000 |
|
£2,003.00 | ||
| 4 | BR10 | 81 | 123 | 4500 |
|
£2,270.00 | ||
| 5 | BR12 | 106 | 153 | 3500 | £2,970.00 |
