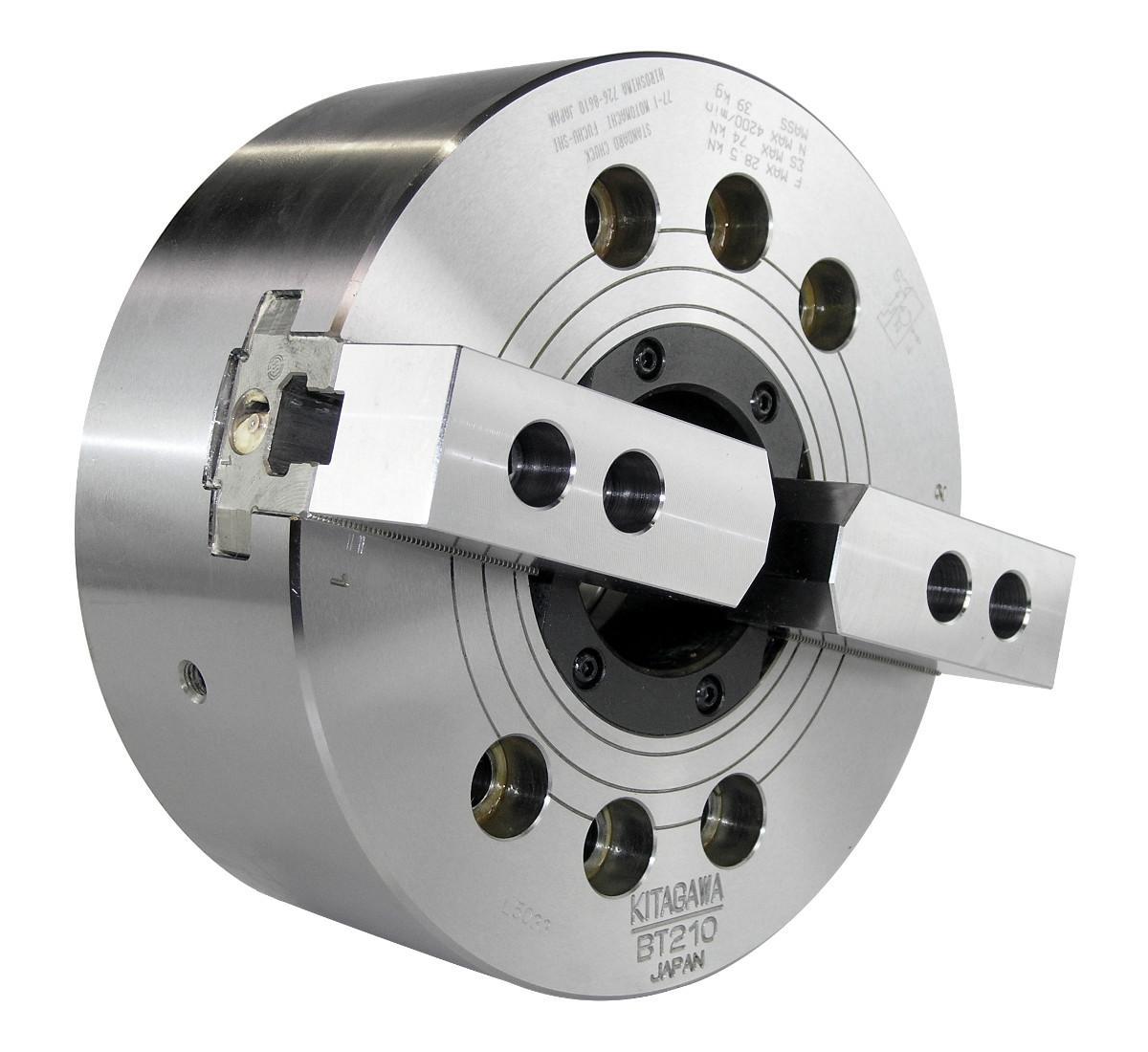

BT200 Series
Standard 2 Jaw Power Chuck
Key Features
- Usefull for gripping irregular shaped components
- Better clearance on speicalist parts
- Easy change over from Kitagawa's standard series chucks
- Compatible with standard accessories
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa BT series are two jaw wedge style power chucks with miniumal reduce gripping force. BT chucks are ideal for irregular compounets, BT series chucks are supplied with blank drawnut and a set of t-nuts as standard.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT204 | 26 | 5.4 | 19 | 8000 |
|
£1,983.00 | ||
| 2 | BT205 | 33 | 5.4 | 24 | 7000 |
|
£2,093.00 | ||
| 3 | BT206 | 45 | 5.5 | 38 | 6000 |
|
£2,274.00 | ||
| 4 | BT208 | 52 | 7.4 | 57.3 | 5000 |
|
£2,162.00 | ||
| 5 | BT210 | 75 | 8.8 | 74 | 4200 |
|
£2,329.00 | ||
| 6 | BT212 | 91 | 10.6 | 96 | 3300 |
|
£3,063.00 | ||
| 7 | BT15 | 117.5 | 10.6 | 120 | 2500 | £3,986.00 |
