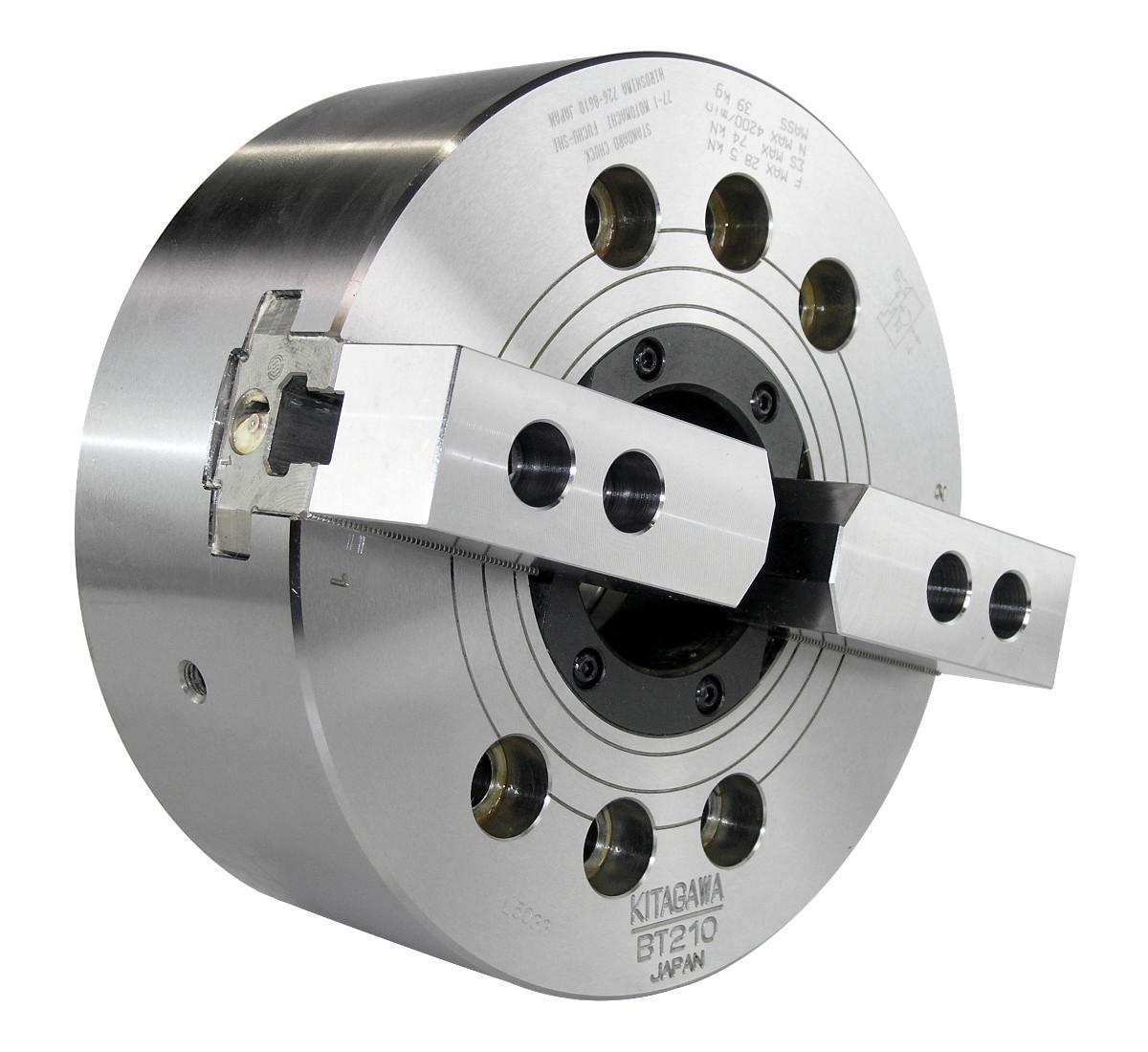

BT200 Series (with Adaptor)

Standard 2 Jaw Power Chuck with Adaptor Plate

Key Features

  • Usefull for gripping irregular shaped components
  • Better clearance on speicalist parts
  • Easy change over from Kitagawa's standard series chucks
  • Compatible with standard accessories

Description

Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa BT series are two jaw wedge style power chucks with miniumal reduce gripping force. BT chucks are ideal for irregular compounets, BT series chucks are supplied with blank drawnut, adapter and a set of t-nuts as standard.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Spindle Nose Chuck Bore Jaw Stroke Max Grip Max Speed Price
1 BT206A5 A2-5 45 5.5 38 6000 £2,465.00
1 BT208A5 A2-5 52 7.4 57.3 5000 n/a
1 BT208A6 A2-6 52 7.4 57.3 5000 £2,392.00
1 BT210A6 A2-6 75 8.8 74 4200 £2,645.00
1 BT210A8 A2-8 75 8.8 74 4200 £2,645.00
1 BT212A6 A2-6 91 10.6 96 3300 £3,378.00
1 BT212A8 A2-8 91 10.6 96 3300 £3,378.00
1 BT15A8 A2-8 117.5 10.6 120 2500 £4,427.00
