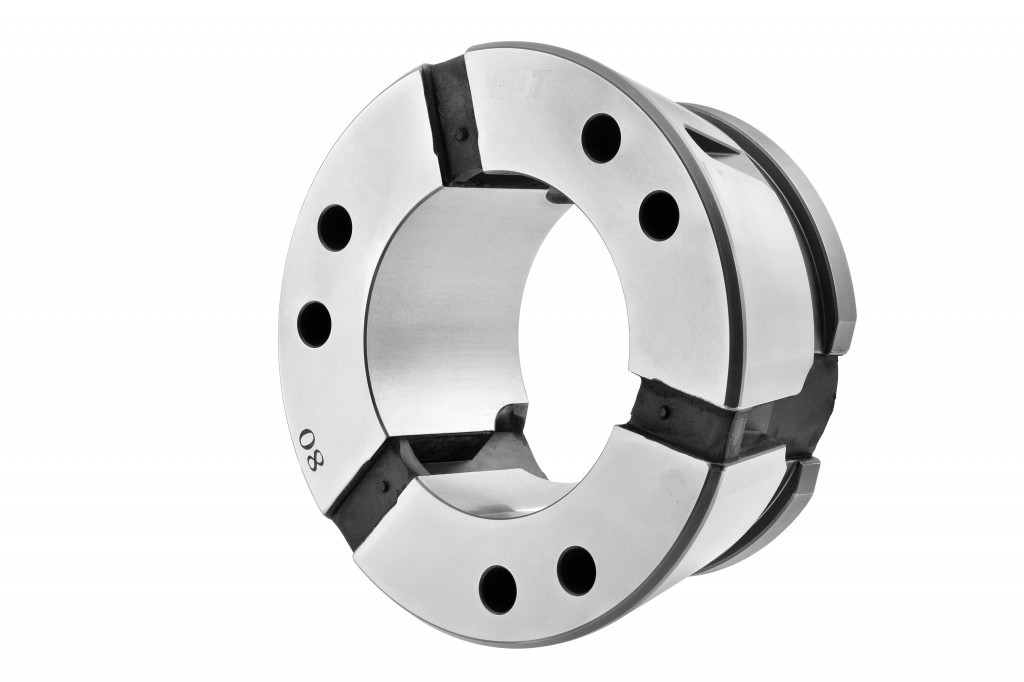

DC80 Round Smooth Collet
80mm Capacity Quick Change Collet
Key Features
- Round, Hexagon, Square or Emergency types available
- Available in Smooth or Serrated
- Clamping tolerance of +/- 0.5mm
- Counter boring and special profile shapes are available upon request
Description
DC Varibore Collets have the same accuracy specification as spring collets whilst maintaining a gripping range of +/- 0.5mm. Supplied with either smooth or serrated gripping surface. Serrated collets are ideal for aggresive first operation gripping of rough bar work.Vulcanized rubber between the hardened steel collet segments provides excellent protection against coolant and chip ingress. Counter boring and special profile shapes are available upon request.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Range (mm) | Price | ||
|---|---|---|---|---|---|---|
| 1 | DC80-RP07 | Smooth | 6.5-7.5 | £304.00 | ||
| 1 | DC80-RP08 | Smooth | 7.5-8.5 | £304.00 | ||
| 1 | DC80-RP09 | Smooth | 8.5-9.5 | £304.00 | ||
| 1 | DC80-RP10 | Smooth | 9.5-10.5 | £304.00 | ||
| 1 | DC80-RP11 | Smooth | 10.5-11.5 | £304.00 | ||
| 1 | DC80-RP12 | Smooth | 11.5-12.5 | £304.00 | ||
| 1 | DC80-RP13 | Smooth | 12.5-13.5 | £304.00 | ||
| 1 | DC80-RP14 | Smooth | 13.5-14.5 | £304.00 | ||
| 1 | DC80-RP15 | Smooth | 14.5-15.5 | £304.00 | ||
| 1 | DC80-RP16 | Smooth | 15.5-16.5 | £304.00 | ||
| 1 | DC80-RP17 | Smooth | 16.5-17.5 | £304.00 | ||
| 1 | DC80-RP18 | Smooth | 17.5-18.5 | £304.00 | ||
| 1 | DC80-RP19 | Smooth | 18.5-19.5 | £304.00 | ||
| 1 | DC80-RP20 | Smooth | 19.5-20.5 | £304.00 | ||
| 1 | DC80-RP21 | Smooth | 20.5-21.5 | £304.00 | ||
| 1 | DC80-RP22 | Smooth | 21.5-22.5 | £304.00 | ||
| 1 | DC80-RP23 | Smooth | 22.5-23.5 | £304.00 | ||
| 1 | DC80-RP24 | Smooth | 23.5-24.5 | £304.00 | ||
| 1 | DC80-RP25 | Smooth | 24.5-25.5 | £304.00 | ||
| 1 | DC80-RP26 | Smooth | 25.5-26.5 | £304.00 | ||
| 1 | DC80-RP27 | Smooth | 26.5-27.5 | £304.00 | ||
| 1 | DC80-RP28 | Smooth | 27.5-28.5 | £304.00 | ||
| 1 | DC80-RP29 | Smooth | 28.5-29.5 | £304.00 | ||
| 1 | DC80-RP30 | Smooth | 29.5-30.5 | £304.00 | ||
| 1 | DC80-RP31 | Smooth | 30.5-31.5 | £304.00 | ||
| 1 | DC80-RP32 | Smooth | 31.5-32.5 | £304.00 | ||
| 1 | DC80-RP33 | Smooth | 32.5-33.5 | £304.00 | ||
| 1 | DC80-RP34 | Smooth | 33.5-34.5 | £304.00 | ||
| 1 | DC80-RP35 | Smooth | 34.5-35.5 | £304.00 | ||
| 1 | DC80-RP36 | Smooth | 35.5-36.5 | £304.00 | ||
| 1 | DC80-RP37 | Smooth | 36.5-37.5 | £304.00 | ||
| 1 | DC80-RP38 | Smooth | 37.5-38.5 | £304.00 | ||
| 1 | DC80-RP39 | Smooth | 38.5-39.5 | £304.00 | ||
| 1 | DC80-RP40 | Smooth | 39.5-40.5 | £304.00 | ||
| 1 | DC80-RP41 | Smooth | 40.5-41.5 | £304.00 | ||
| 1 | DC80-RP42 | Smooth | 41.5-42.5 | £304.00 | ||
| 1 | DC80-RP43 | Smooth | 42.5-43.5 | £304.00 | ||
| 1 | DC80-RP44 | Smooth | 43.5-44.5 | £304.00 | ||
| 1 | DC80-RP45 | Smooth | 44.5-45.5 | £304.00 | ||
| 1 | DC80-RP46 | Smooth | 45.5-46.5 | £304.00 | ||
| 1 | DC80-RP47 | Smooth | 46.5-47.5 | £304.00 | ||
| 1 | DC80-RP48 | Smooth | 47.5-48.5 | £304.00 | ||
| 1 | DC80-RP49 | Smooth | 48.5-49.5 | £304.00 | ||
| 1 | DC80-RP50 | Smooth | 49.5-50.5 | £304.00 | ||
| 1 | DC80-RP51 | Smooth | 50.5-51.5 | £304.00 | ||
| 1 | DC80-RP52 | Smooth | 51.5-52.5 | £304.00 | ||
| 1 | DC80-RP53 | Smooth | 52.5-53.5 | £304.00 | ||
| 1 | DC80-RP54 | Smooth | 53.5-54.5 | £304.00 | ||
| 1 | DC80-RP55 | Smooth | 54.5-55.5 | £304.00 | ||
| 1 | DC80-RP56 | Smooth | 55.5-56.5 | £304.00 | ||
| 1 | DC80-RP57 | Smooth | 56.5-57.5 | £304.00 | ||
| 1 | DC80-RP58 | Smooth | 57.5-58.5 | £304.00 | ||
| 1 | DC80-RP59 | Smooth | 58.5-59.5 | £304.00 | ||
| 1 | DC80-RP60 | Smooth | 59.5-60.5 | £304.00 | ||
| 1 | DC80-RP61 | Smooth | 60.5-61.5 | £304.00 | ||
| 1 | DC80-RP62 | Smooth | 61.5-62.5 | £304.00 | ||
| 1 | DC80-RP63 | Smooth | 62.5-63.5 | £304.00 | ||
| 1 | DC80-RP64 | Smooth | 63.5-64.5 | £304.00 | ||
| 1 | DC80-RP65 | Smooth | 64.5-65.5 | £304.00 | ||
| 1 | DC80-RP66 | Smooth | 65.5-66.5 | £304.00 | ||
| 1 | DC80-RP67 | Smooth | 66.5-67.5 | £304.00 | ||
| 1 | DC80-RP68 | Smooth | 67.5-68.5 | £304.00 | ||
| 1 | DC80-RP69 | Smooth | 68.5-69.5 | £304.00 | ||
| 1 | DC80-RP70 | Smooth | 69.5-70.5 | £304.00 | ||
| 1 | DC80-RP71 | Smooth | 70.5-71.5 | £304.00 | ||
| 1 | DC80-RP72 | Smooth | 71.5-72.5 | £304.00 | ||
| 1 | DC80-RP73 | Smooth | 72.5-73.5 | £304.00 | ||
| 1 | DC80-RP74 | Smooth | 73.5-74.5 | £304.00 | ||
| 1 | DC80-RP75 | Smooth | 74.5-75.5 | £304.00 | ||
| 1 | DC80-RP76 | Smooth | 75.5-76.5 | £304.00 | ||
| 1 | DC80-RP77 | Smooth | 76.5-77.5 | £304.00 | ||
| 1 | DC80-RP78 | Smooth | 77.5-78.5 | £304.00 | ||
| 1 | DC80-RP79 | Smooth | 78.5-79.5 | £304.00 | ||
| 1 | DC80-RP80 | Smooth | 79.5-80.5 | £304.00 |
