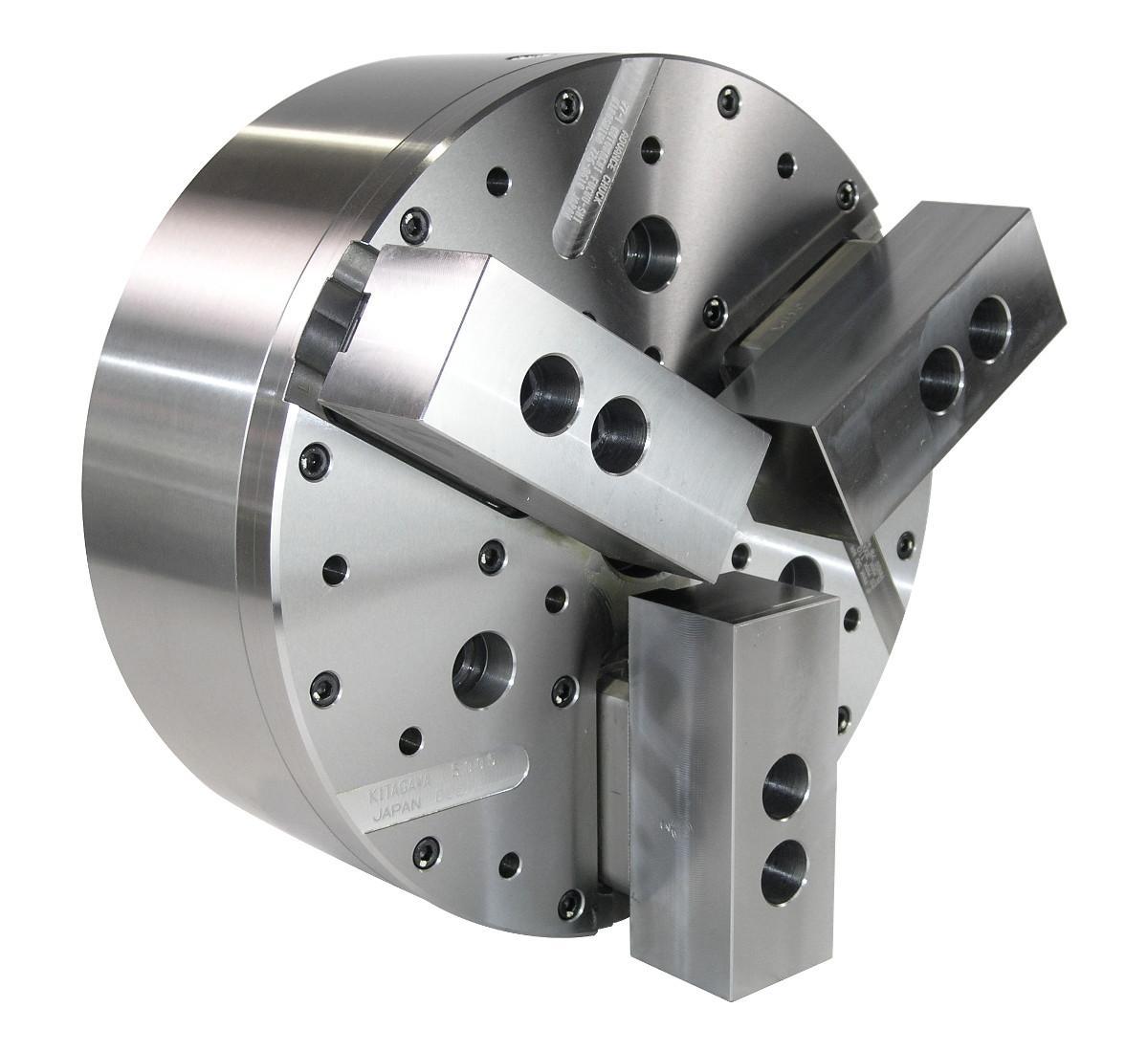

DL Series
Dual Lock Power Chuck
Key Features
- Compatible with large, readily available, range of jaws
- Two stage gripping gives clamping and seating of part
- Base jaws do not protrude on z axis
- Sealed body design
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa DL Series are the 1st chuck with two stage gipping action, firstly parallel clamping then pull back action for work seating.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max External Grip Force (kN) | Max Internal Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DL206 | 5.8 | 54 | 36 | 6000 |
|
£5,346.00 | ||
| 2 | DL208 | 7.2 | 84 | 56 | 5000 |
|
£6,237.00 | ||
| 3 | DL210 | 9 | 110 | 73.3 | 4000 |
|
£7,129.00 | ||
| 4 | DL212 | 9 | 110 | 73.3 | 3000 |
|
£8,143.00 |
