Description

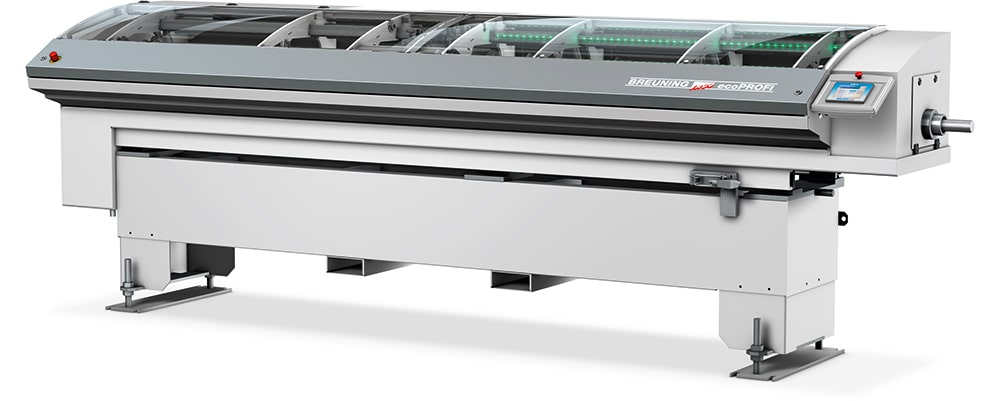

Multi-channel loading magazine

ecoPROFI

Application area:

• Ideal for small and medium-sized batches

Properties:

• Extremely short changeover time at the touch of a button
• Optimal running characteristics: 3 to 6 guide channels, heavy net weight
• Extremely smooth running, hydrodynamic bearing, 360° closed guide channels
• High operating comfort thanks to a 18 cm (7″) widescreen touch display
• Process-reliable supply of rotationally symmetrical profile material
• Suitable for long turners (optional) electronic synchronizing device
• Optimal material guidance up to the clamping device with a telescopic system
• Easy conversion from long to short turning mode at the touch of a button
• Working range: Depending on the selected model, material diameters between 5 and 51 mm
• Bar length 3200 mm, 4200 mm and 6200 mm

Working range:

• Depending on the selected model, material diameters between 5 and 51 mm, bar length 3200 mm, 4200 mm and 6200 mm

Special features:

• Easy replacement of the spindle liner tubes thanks to axial slide of the magazine (optionally radial swivel-out)
• Process-integrated remnant disposal through the machine (optionally by the magazine)
• Machine-protecting, vibration-absorbing design
