Electropermanent Magnetic Chuck for Precise Surface Grinding

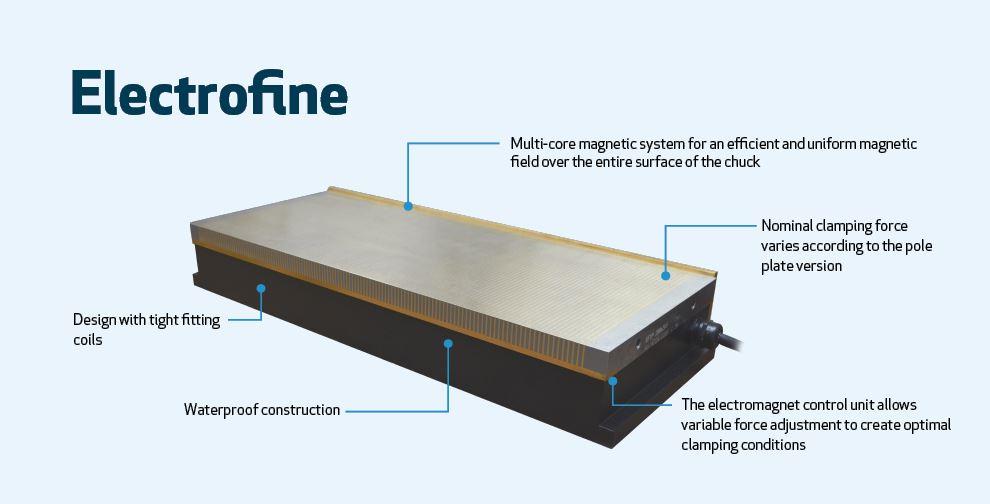

Key Features
- The electromagnet is easily operated by pressing the button on the control unit, which also ensures variable adjustment of the force to create the optimum conditions for clamping
- High nominal holding force 100 or 110 N/cm2 (according to the top plate design)
- Multi core magnetic system generates an efficient and uniform magnetic field over the entire surface of the chuck
- Waterproof design
Description

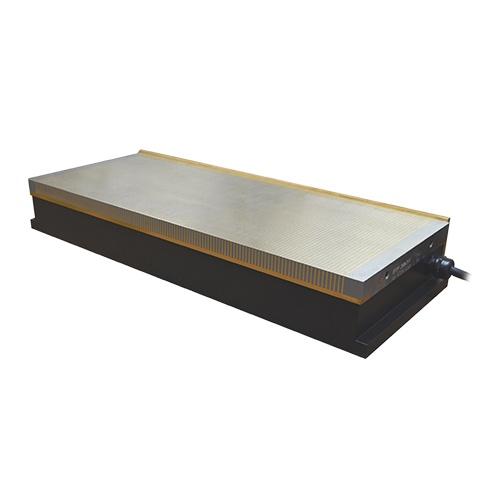

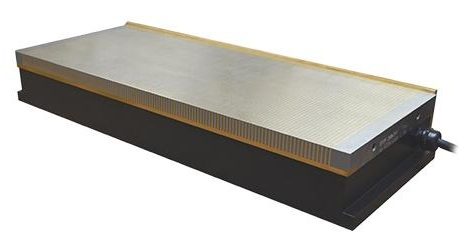

Electrofine is an electromagnetic chuck which, thanks to its design, provides holding force over the entire surface of the top plate. With minimum warming of the working area, you will obtain a unique workpiece clamp for precise grinding.Efficient production is supported by easy operation using the control unit – just press the button or turn the switch to regulate the holding force for ideal conditions in industrial operation. This unit also allows automatic demagnetization so that no residual magnetism remains in the workpiece after unclamping.For efficient clamping of small workpieces during surface grinding, we also offer the Microfine model.Application: GrindingTechnology: ElectromagnetHolding force: 110 N/cm2 (Electrofine), 100 N/cm2 (Microfine)Min. workpiece size: 25 x 25 x 3 mm (Electrofine), 15 x 15 x 1 mm (Microfine)Poles: Transverse/LongitudinalRegrinding limit: 6 mmPole pitch: T4 3+1 mm - steel/brass (Electrofine), T1.9 1.4+0.5 mm - steel/brass (Microfine)
Estimated delivery: On Request

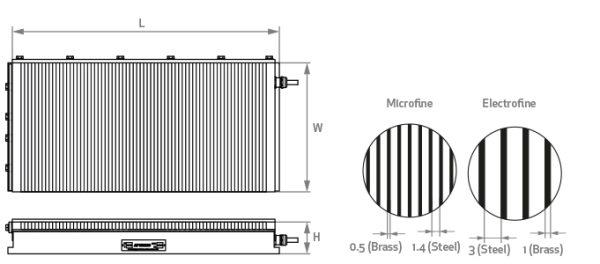

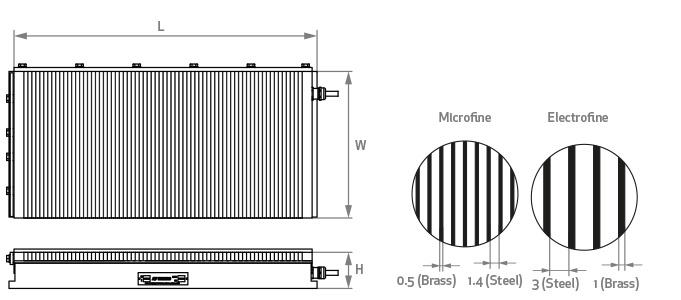

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Minimum Workpiece Size (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | ELEC150250T31 | 150 | 250 | 74 | 25x25x3 | £2,277.00 | ||
| 1 | ELEC150300T31 | 150 | 300 | 74 | 25x25x3 | £2,322.00 | ||
| 1 | ELEC150350T31 | 150 | 350 | 74 | 25x25x3 | £2,721.00 | ||
| 1 | ELEC150400T31 | 150 | 400 | 74 | 25x25x3 | £3,043.00 | ||
| 1 | ELEC150450T31 | 150 | 450 | 74 | 25x25x3 | £2,666.00 | ||
| 1 | ELEC200400T31 | 200 | 400 | 74 | 25x25x3 | £3,029.00 | ||
| 1 | ELEC200450T31 | 200 | 450 | 74 | 25x25x3 | £3,096.00 | ||
| 1 | ELEC200500T31 | 200 | 500 | 74 | 25x25x3 | £3,308.00 | ||
| 1 | ELEC200600T31 | 200 | 600 | 74 | 25x25x3 | £3,638.00 | ||
| 1 | ELEC250500T31 | 250 | 500 | 76 | 25x25x3 | £3,410.00 | ||
| 1 | ELEC250600T31 | 250 | 600 | 76 | 25x25x3 | £4,041.00 | ||
| 1 | ELEC300600T31 | 300 | 600 | 76 | 25x25x3 | £4,777.00 | ||
| 1 | ELEC300700T31 | 300 | 700 | 76 | 25x25x3 | £5,288.00 | ||
| 1 | ELEC300800T31 | 300 | 800 | 76 | 25x25x3 | £6,085.00 | ||
| 1 | ELEC150250T1405 | 150 | 250 | 72 | 15x15x1 | £2,235.00 | ||
| 1 | ELEC150300T1405 | 150 | 300 | 72 | 15x15x1 | £2,366.00 | ||
| 1 | ELEC200400T1405 | 200 | 400 | 72 | 15x15x1 | £2,700.00 | ||
| 1 | ELEC200500T1405 | 200 | 500 | 72 | 15x15x1 | £2,922.00 | ||
| 1 | ELEC200600T1405 | 200 | 600 | 72 | 15x15x1 | £3,197.00 | ||
| 1 | ELEC300600T1405 | 300 | 600 | 72 | 15x15x1 | £3,843.00 |
