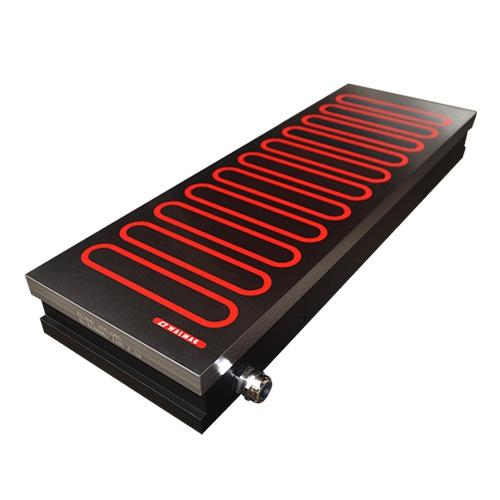

Elmag Compact
Compact Electromagnetic Chuck for Surface Grinding

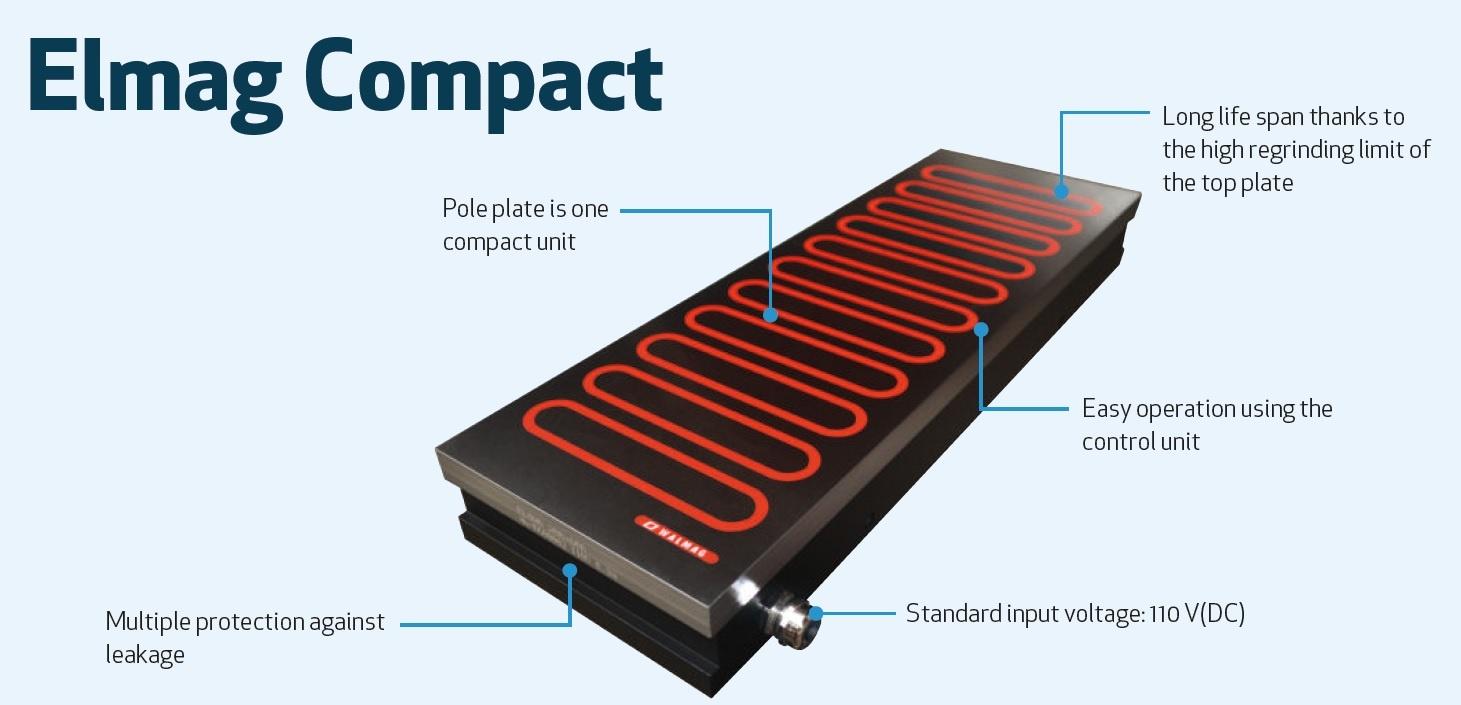

Key Features
- Long life span thanks to the high regrinding limit of the top plate
- Multiple protection against leakage – the body from one piece of steel, coils fully moulded in epoxy resin, high-quality galvanized foil between the body and the top plate of the magnet
- Pole plate is one compact unit
- Easy operation using the control unit
Description
The Elmag Compact is a powerful electromagnetic chuck suitable for flat grinding. The top plate is made of a single compact unit. The insulation between the poles is made of hard epoxy resin filler. The Elmag Compact chuck is delivered with stop bars and a power supply cable as standard.Application: Grinding Technology: Electromagnet Holding force: 130 N/cm2Min. workpiece size: 22 x 144 x 48 mm Poles: Oval Pole pitch: T48 mm Regrinding limit: 8 mm Power supply cable length: 6 m Walmag Walmag.com
Estimated delivery: On Request

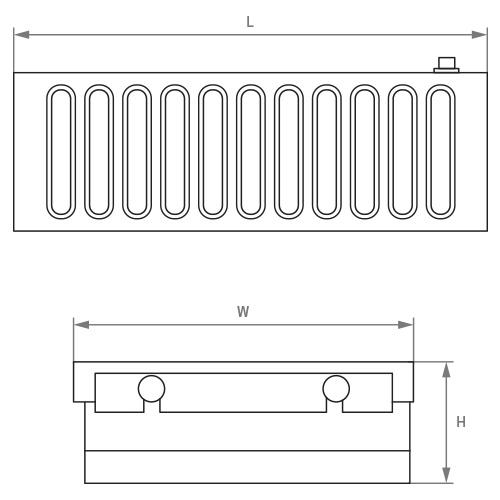

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | ELMG200600 | 200 | 600 | 70 | £2,597.00 | ||
| 1 | ELMG2001000 | 200 | 1000 | 80 | £3,724.00 | ||
| 1 | ELMG2501000 | 250 | 1000 | 79 | £4,366.00 | ||
| 1 | ELMG300500 | 300 | 500 | 70 | £2,919.00 | ||
| 1 | ELMG300600 | 300 | 600 | 70 | £3,468.00 | ||
| 1 | ELMG300800 | 300 | 800 | 70 | £4,191.00 | ||
| 1 | ELMG3001000 | 300 | 1000 | 80 | £4,968.00 | ||
| 1 | ELMG3001500 | 300 | 1500 | 80 | £6,524.00 | ||
| 1 | ELMG400600 | 400 | 600 | 70 | £4,191.00 | ||
| 1 | ELMG400700 | 400 | 700 | 70 | £4,654.00 | ||
| 1 | ELMG400800 | 400 | 800 | 70 | £5,113.00 | ||
| 1 | ELMG4001000 | 400 | 1000 | 80 | £6,069.00 | ||
| 1 | ELMG4001500 | 400 | 1500 | 80 | £7,693.00 | ||
| 1 | ELMG4002000 | 400 | 2000 | 80 | £10,258.00 | ||
| 1 | ELMG500600 | 500 | 600 | 70 | £4,968.00 | ||
| 1 | ELMG500800 | 500 | 800 | 70 | £6,069.00 | ||
| 1 | ELMG5001000 | 500 | 1000 | 80 | £6,410.00 | ||
| 1 | ELMG5001500 | 500 | 1500 | 80 | £9,616.00 | ||
| 1 | ELMG5002000 | 500 | 2000 | 80 | £14,452.00 | ||
| 1 | ELMG6001000 | 600 | 1000 | 80 | £7,693.00 | ||
| 1 | ELMG6001500 | 600 | 1500 | 80 | £11,540.00 | ||
| 1 | ELMG6002000 | 600 | 2000 | 80 | £17,341.00 |
