Elmag Wave

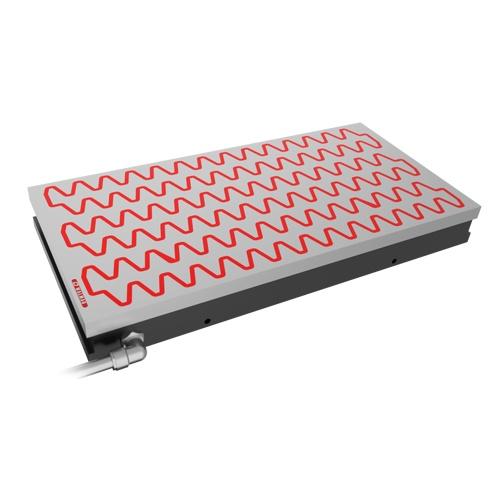

Electromagnetic Chuck for Surface Grinding
Key Features

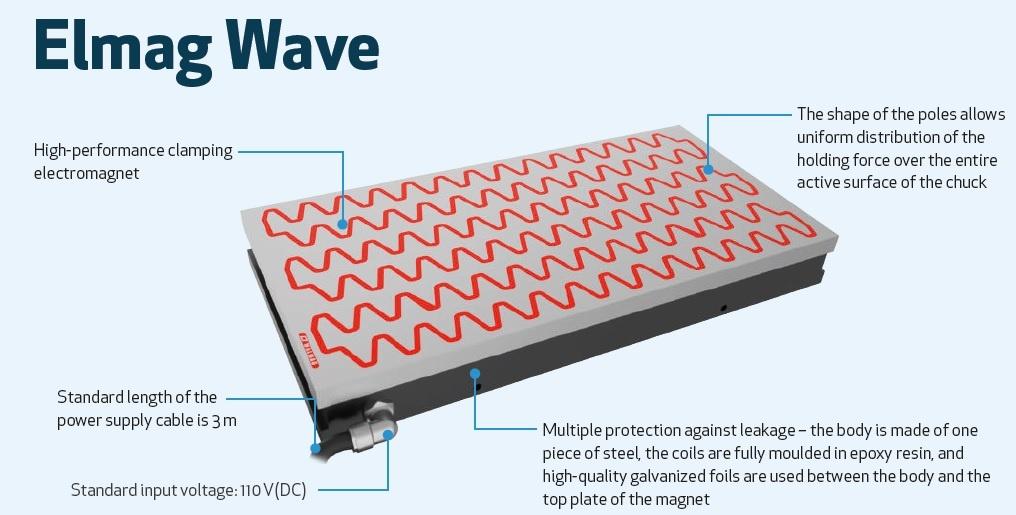

- High-performance clamping electromagnet
- Multiple protection against leakage – the body is made of one piece of steel, the coils are fully moulded in epoxy resin, and high-quality galvanized foils are used between the body and the top plate of the magnet
- The shape of the poles allows uniform distribution of the holding force over the entire active surface of the chuck
- Holding force: 130 N/cm2
Description
The Elmag Wave electromagnetic chuck is designed for heavy duty use The shifted layout of the poles (WAVE form) creates uniform distribution of the holding force both in longitudinal and transverse directions, which helps reduce shear forces during active grinding. During use, this electromagnet chuck demonstrates high stability, variability, accuracy, and a long lifespan. Application: Grinding Technology: Electromagnet Holding force: 130 N/cm 2 Min. workpiece size: 120 x 40 x 20 mm Poles: Wave type Pole pitch: T40 Regrinding limit: 8 mm
Estimated delivery: On Request

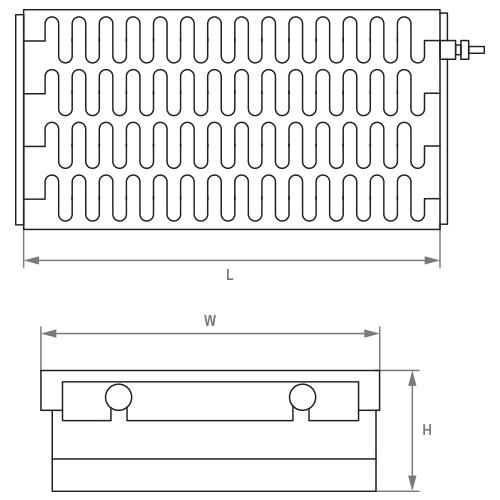

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | ELMGW200600 | 200 | 600 | 70 | £3,347.00 | ||
| 1 | ELMGW2001000 | 200 | 1000 | 80 | £4,488.00 | ||
| 1 | ELMGW2501000 | 250 | 1000 | 79 | £5,307.00 | ||
| 1 | ELMGW300500 | 300 | 500 | 70 | £3,911.00 | ||
| 1 | ELMGW300600 | 300 | 600 | 70 | £4,204.00 | ||
| 1 | ELMGW300800 | 300 | 800 | 70 | £5,094.00 | ||
| 1 | ELMGW3001000 | 300 | 1000 | 80 | £6,004.00 | ||
| 1 | ELMGW3001500 | 300 | 1500 | 80 | £8,079.00 | ||
| 1 | ELMGW400600 | 400 | 600 | 70 | £5,094.00 | ||
| 1 | ELMGW400700 | 400 | 700 | 70 | £5,604.00 | ||
| 1 | ELMGW400800 | 400 | 800 | 70 | £6,016.00 | ||
| 1 | ELMGW4001000 | 400 | 1000 | 80 | £7,180.00 | ||
| 1 | ELMGW4001500 | 400 | 1500 | 80 | £10,516.00 | ||
| 1 | ELMGW4002000 | 400 | 2000 | 80 | £14,797.00 | ||
| 1 | ELMGW500600 | 500 | 600 | 70 | £7,577.00 | ||
| 1 | ELMGW500800 | 500 | 800 | 70 | £7,180.00 | ||
| 1 | ELMGW5001000 | 500 | 1000 | 80 | £8,763.00 | ||
| 1 | ELMGW5001500 | 500 | 1500 | 80 | £13,190.00 | ||
| 1 | ELMGW5002000 | 500 | 2000 | 80 | £18,525.00 | ||
| 1 | ELMGW6001000 | 600 | 1000 | 80 | £10,516.00 | ||
| 1 | ELMGW6001500 | 600 | 1500 | 80 | £16,372.00 | ||
| 1 | ELMGW6002000 | 600 | 2000 | 80 | £22,230.00 |
