Fixar Compound
Magnetic Sine Table for Accurate Angular Grinding and EDM

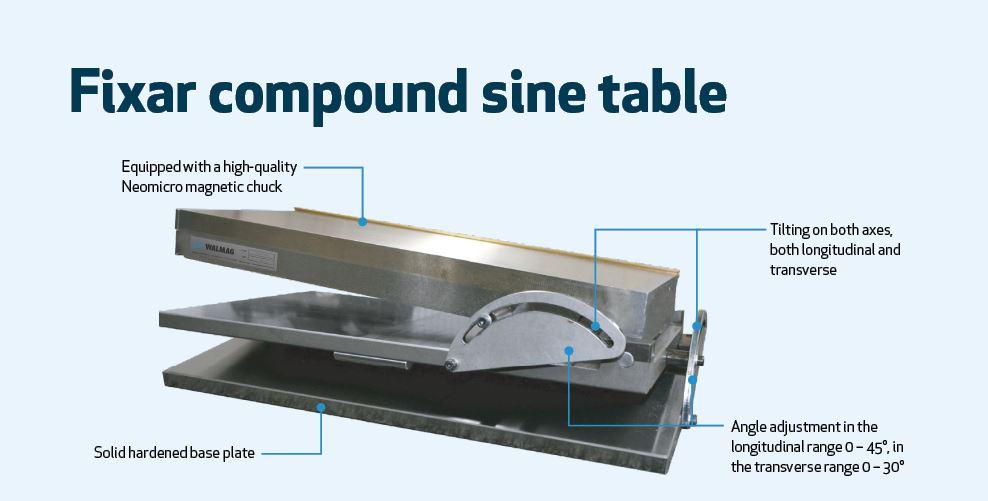

Key Features
- Tilting is possible on both axes, longitudinal and transverse
- Excellent accuracy +/- 5 seconds of arc even after a longer period of use
- Parallelism (paralleling): +/- 5 micrometres per 100 mm
- Equipped with a high-quality Neomicro magnetic chuck with fine pole layout (optionally, the table can be equipped with a different chuck, e.g. Neomill or Electrofine)
Description

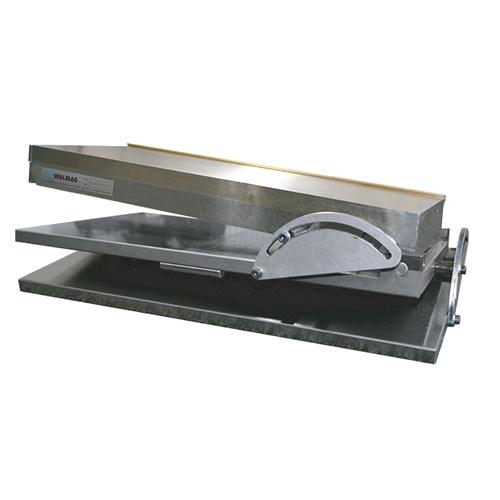

The Fixar compound sine table is a high precise device designed for workpiece clamping during precise angle grinding, electrical discharge machining and measuring. It enhances the efficiency of work during machining because it offers the possibility to tilt the workpiece on both axes with high accuracy.You set the angles simply by using the end gauges based on the sine principle. Unique design of the bearing along with the hardened base plate and the side guidance provide extreme accuracy even after a long period of use. The Neomicro magnetic chuck is part of the transverse sine table as it is stable and has a high holding force without deformation of the workpiece up to 100 N/cm2.Application: Grinding, measuring, EDMTechnology: PermanentHolding force: 100 N/cm2Min. workpiece size: 4 x 4 x 1 mmPoles: TransverseRegrinding limit: 7 mmPole pitch: T1.9 1.4+0.5 mm (steel/brass)
Estimated delivery: On Request

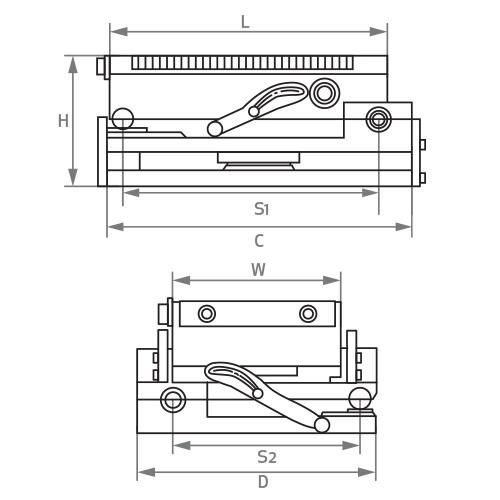

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Price | |
|---|---|---|---|---|---|---|
| 1 | SINEC100175 | 100 | 175 | 104 | ||
| 1 | SINEC130255 | 130 | 255 | 120 | ||
| 1 | SINEC150300 | 150 | 300 | 123 | ||
| 1 | SINEC150350 | 150 | 350 | 123 | ||
| 1 | SINEC200400 | 200 | 400 | 124 |
