Fixar Simple

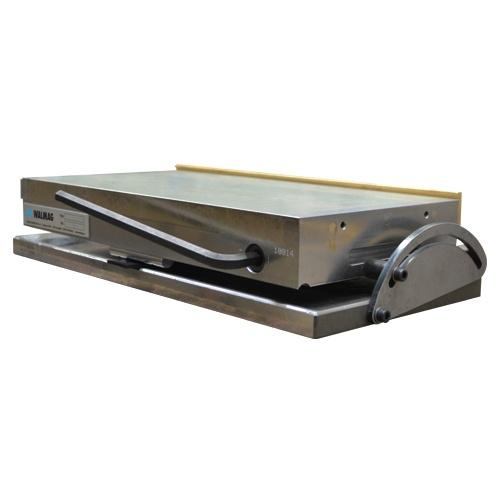

Magnetic Sine Table for Accurate Angular Grinding and EDM

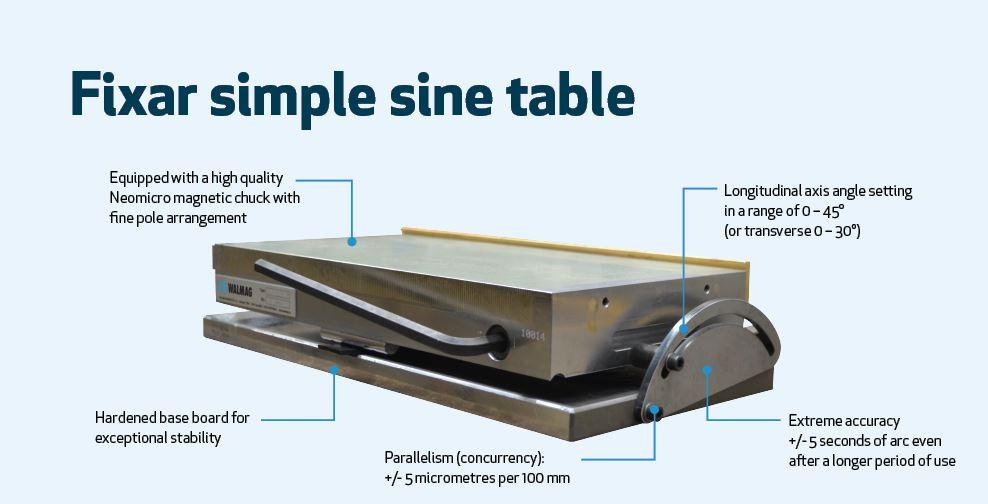

Key Features
- Longitudinal angle setting in a range of 0 – 45° (or transverse 0 – 30°)
- Extraordinary accuracy +/- 5 seconds of arc even after a longer period of use
- Parallelism (paralleling): +/- 5 micrometres per 100 mm

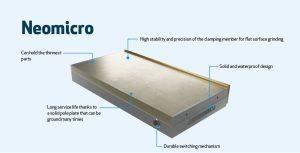

- Equipped with a high-quality Neomicro magnetic chuck with fine pole layout (optionally, the table can be equipped with a different chuck, e.g. Neomill or Electrofine)

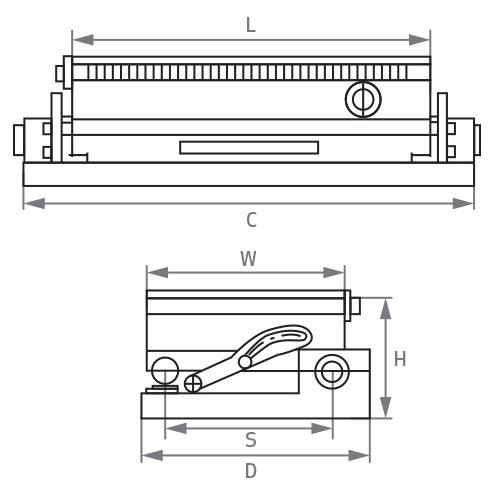

Description

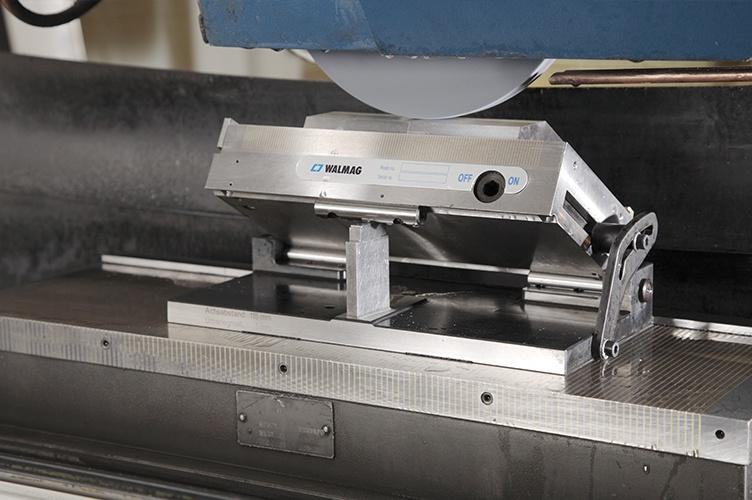

The Fixar simple sine table is a highly precise tool, which is intended for reliable workpiece clamping during precise angle grinding, electrical discharge machining and for measuring purposes. It allows the setting of angles using a gauge in the range of 0 – 45° with high accuracy. You set angles using end gauges based on the sine principle. The unique design of the bearing along with the hardened base plate and side guidance provide extreme precision even after a long period of use. The sine table is equipped with a Neomicro permanent magnetic chuck, which is simple and low maintenance.Application: Grinding, measuring, EDMTechnology: PermanentHolding force: 100 N/cm2Min. workpiece size: 4 x 4 x 1 mmPoles: TransverseRegrinding limit: 7 mmPole pitch: T1.9 1.4+0.5 mm (steel/brass)
Estimated delivery: On Request
