Fixed Soft Jaw (SVF-S01)
Fixed soft jaws for SVF flexible vices
Key Features
- Easy machining of irregular workpieces
- High precision and high clamping force
- Wide range of accessories for flexibility
- Maximise your machining envelope
Description
Fixed soft jaws for the SVF range of flexible vices. There are bolt-on soft jaws to fit all types of fixed jaw in the SVF range including wedge type and non-wedge type. These soft jaws have a centre key for accurate repositioning and do not require re-skimming every time they are used.
Estimated delivery: On Request

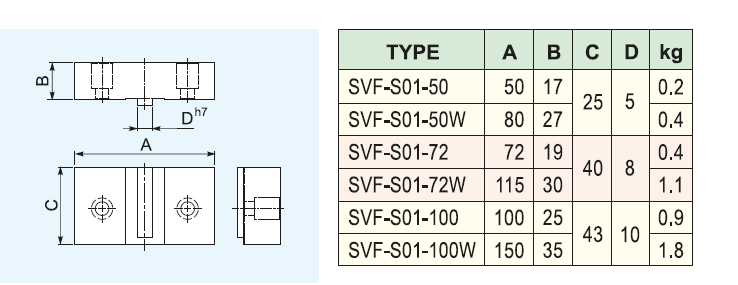

Dimensions
| # | Part No | Width (mm) | Height (mm) | Thickness (mm) | Used on | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-S01-50 | 50 | 25 | 17 | All SVF 50mm |
|
£35.00 | ||
| 2 | SVF-S01-50W | 80 | 25 | 27 | All SVF 50mm |
|
£ Price on application | n/a | |
| 3 | SVF-S01-72 | 72 | 40 | 19 | All SVF 72mm |
|
£43.17 | ||
| 4 | SVF-S01-72W | 115 | 40 | 30 | All SVF 72mm |
|
£ Price on application | n/a | |
| 5 | SVF-S01-100 | 100 | 43 | 25 | All SVF 100mm |
|
£47.84 | ||
| 6 | SVF-S01-100W | 150 | 43 | 35 | All SVF 100mm |
|
£ Price on application | n/a |
