Gridded Fixture Plate
50mm Grid Base Plate to suit VMC
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Locating Holes for easy Location
Description

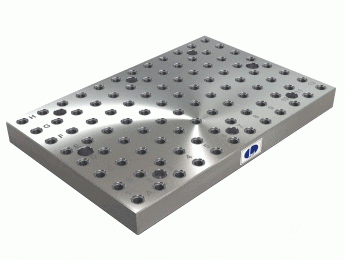

Cast iron fixture plate with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Two dowel holes allow for precise loading and setting up of the fixture plate.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Thread | Pitch of Holes (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP02-50400-0600-12 | 400 | 600 | 50 | M12 | 50 |
|
£2,478.00 | ||
| 2 | BP02-50500-0600-12 | 500 | 600 | 50 | M12 | 50 |
|
£2,886.34 | ||
| 3 | BP02-50600-0600-12 | 600 | 600 | 50 | M12 | 50 |
|
£3,440.50 | ||
| 4 | BP02-50400-0800-12 | 400 | 800 | 50 | M12 | 50 |
|
£3,129.00 | ||
| 5 | BP02-50450-0900-12 | 450 | 900 | 50 | M12 | 50 |
|
£3,825.50 | ||
| 6 | BP02-50500-1000-12 | 500 | 1000 | 50 | M12 | 50 |
|
£4,574.50 | ||
| 7 | BP02-50600-1200-12 | 600 | 1200 | 50 | M12 | 50 |
|
£6,673.34 | ||
| 8 | BP02-50400-0600-16 | 400 | 600 | 50 | M16 | 50 |
|
£2,529.34 | ||
| 9 | BP02-50500-0600-16 | 500 | 600 | 50 | M16 | 50 |
|
£2,950.50 | ||
| 10 | BP02-50600-0600-16 | 600 | 600 | 50 | M16 | 50 |
|
£3,517.50 | ||
| 11 | BP02-50400-0800-16 | 400 | 800 | 50 | M16 | 50 |
|
£3,197.84 | ||
| 12 | BP02-50450-0900-16 | 450 | 900 | 50 | M16 | 50 |
|
£3,911.84 | ||
| 13 | BP02-50500-1000-16 | 500 | 1000 | 50 | M16 | 50 |
|
£4,680.67 | ||
| 14 | BP02-50600-1200-16 | 600 | 1200 | 50 | M16 | 50 |
|
£6,826.17 |
