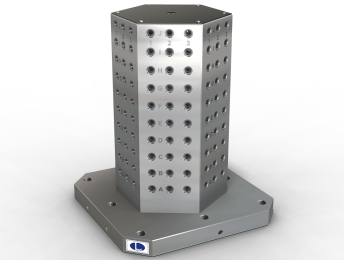

Gridded Hexagonal Tooling Column
50mm Grid Cast Iron Hex Shaped Tombstone
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Threaded Holes for Side-Location
- Hexagonal Shape allows for more parts to be mounted
Description
Cast iron gridded Hex profile Tooling Column with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Height (A)(mm) | Width of Pallet (B)(mm) | Length per Side (H) (mm) | Width Across Flats (C) (mm) | Thread | Pitch of Holes (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP32-400400-0500-12 | 500 | 400 | 144 | 250 | M12 | 50 | £3,460.34 | ||
| 1 | BP32-400400-0650-12 | 650 | 400 | 144 | 250 | M12 | 50 | £4,246.67 | ||
| 1 | BP32-500500-0600-12 | 600 | 500 | 173 | 300 | M12 | 50 | £6,037.50 | ||
| 1 | BP32-500500-0750-12 | 750 | 500 | 173 | 300 | M12 | 50 | £7,156.34 | ||
| 1 | BP32-630630-0700-12 | 700 | 630 | 202 | 350 | M12 | 50 | £7,886.67 | ||
| 1 | BP32-630630-0850-12 | 850 | 630 | 202 | 350 | M12 | 50 | £10,417.17 | ||
| 1 | BP32-800800-0800-12 | 800 | 800 | 289 | 500 | M12 | 50 | £12,972.17 | ||
| 1 | BP32-800800-1000-12 | 1000 | 800 | 289 | 500 | M12 | 50 | £15,670.67 | ||
| 1 | BP32-400400-0500-16 | 500 | 400 | 144 | 250 | M16 | 50 | £3,524.50 | ||
| 1 | BP32-400400-0650-16 | 650 | 400 | 144 | 250 | M16 | 50 | £4,312.00 | ||
| 1 | BP32-500500-0600-16 | 600 | 500 | 173 | 300 | M16 | 50 | £6,127.34 | ||
| 1 | BP32-500500-0750-16 | 750 | 500 | 173 | 300 | M16 | 50 | £7,273.00 | ||
| 1 | BP32-630630-0700-16 | 700 | 630 | 202 | 350 | M16 | 50 | £8,003.34 | ||
| 1 | BP32-630630-0850-16 | 850 | 630 | 202 | 350 | M16 | 50 | £10,558.34 | ||
| 1 | BP32-800800-0800-16 | 800 | 800 | 289 | 500 | M16 | 50 | £13,165.84 | ||
| 1 | BP32-800800-1000-16 | 1000 | 800 | 289 | 500 | M16 | 50 | £15,954.17 |
