Gridded Rectangular Cast Section

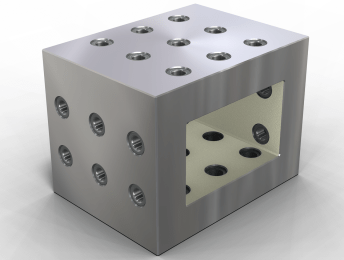

50mm Grid Cast Iron Box Section
Key Features
- Allignment Busing and Threaded Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Locating Holes for easy Set-Up
Description
Cast iron gridded rectangular box section .Grid pattern with alignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. To suit verticle or horizontal machining centre applications.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
# | Part No | Height (mm)(C) | Length (mm)(D) | Thread Size | Width (E) | Price | ||
---|---|---|---|---|---|---|---|---|
1 | BP26-200150-0150-12 | 150 | 200 | M12 | 150 | £711.67 | ||
1 | BP26-250150-0200-12 | 200 | 250 | M12 | 150 | £746.67 | ||
1 | BP26-200150-0150-16 | 150 | 200 | M16 | 150 | £808.50 | ||
1 | BP26-250150-0200-16 | 200 | 250 | M16 | 150 | £831.84 |
