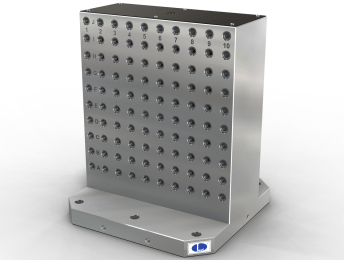

Gridded Rectangular Tooling Column
50mm Grid Cast Iron Tombstone
Key Features
- Alignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description
Gridded Rectangular Tooling Column with mounting holes. Grid pattern with alignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Pallet Size (mm) | Width of Column (mm) | Thickness of Column (mm) | Height (mm) | Thread | Pitch of Holes (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP11-300300-0500-12 | 300 | 300 | 80 | 500 | M12 | 50 |
|
£3,048.50 | ||
| 2 | BP11-400400-0500-12 | 400 | 400 | 150 | 500 | M12 | 50 |
|
£3,650.50 | ||
| 3 | BP11-400400-0650-12 | 400 | 400 | 150 | 650 | M12 | 50 |
|
£5,143.84 | ||
| 4 | BP11-500500-0600-12 | 500 | 500 | 200 | 600 | M12 | 50 |
|
£4,939.67 | ||
| 5 | BP11-500500-0750-12 | 500 | 500 | 200 | 750 | M12 | 50 |
|
£7,364.00 | ||
| 6 | BP11-630630-0700-12 | 630 | 630 | 250 | 700 | M12 | 50 |
|
£7,653.34 | ||
| 7 | BP11-630630-0850-12 | 630 | 630 | 250 | 850 | M12 | 50 |
|
£10,586.34 | ||
| 8 | BP11-800800-0800-12 | 800 | 800 | 300 | 800 | M12 | 50 |
|
£11,036.67 | ||
| 9 | BP11-800800-1000-12 | 800 | 800 | 300 | 1000 | M12 | 50 |
|
£15,218.00 | ||
| 10 | BP11-10001000-1000-12 | 1000 | 1000 | 350 | 1000 | M12 | 50 |
|
£18,375.00 | ||
| 11 | BP11-10001000-1250-12 | 1000 | 1000 | 350 | 1250 | M12 | 50 |
|
£22,569.17 | ||
| 12 | BP11-300300-0500-16 | 300 | 300 | 80 | 500 | M16 | 50 |
|
£3,048.50 | ||
| 13 | BP11-400400-0500-16 | 400 | 400 | 150 | 500 | M16 | 50 |
|
£3,719.34 | ||
| 14 | BP11-400400-0650-16 | 400 | 400 | 150 | 650 | M16 | 50 |
|
£5,258.17 | ||
| 15 | BP11-500500-0600-16 | 500 | 500 | 200 | 600 | M16 | 50 |
|
£5,514.84 | ||
| 16 | BP11-500500-0750-16 | 500 | 500 | 200 | 750 | M16 | 50 |
|
£7,508.67 | ||
| 17 | BP11-630630-0700-16 | 630 | 630 | 250 | 700 | M16 | 50 |
|
£8,039.50 | ||
| 18 | BP11-630630-0850-16 | 630 | 630 | 250 | 850 | M16 | 50 |
|
£10,759.00 | ||
| 19 | BP11-800800-0800-16 | 800 | 800 | 300 | 800 | M16 | 50 |
|
£11,259.50 | ||
| 20 | BP11-800800-1000-16 | 800 | 800 | 300 | 1000 | M16 | 50 |
|
£15,505.00 | ||
| 21 | BP11-10001000-1000-16 | 1000 | 1000 | 350 | 1000 | M16 | 50 |
|
£18,707.50 | ||
| 22 | BP11-10001000-1250-16 | 1000 | 1000 | 350 | 1250 | M16 | 50 |
|
£22,972.84 |
