Gridded Square Tooling Column
50mm Grid Cast Iron Tombstone
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description

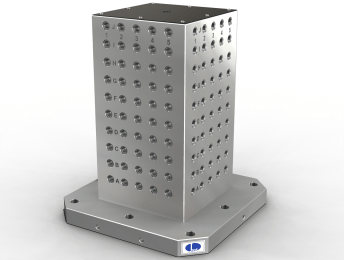

Cast iron gridded cube with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Pallet Size (mm) | Profile of Column (mm) | Height (mm) | Thread | Pitch of Holes (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP08-300300-0500-12 | 300 | 150 | 500 | M12 | 50 |
|
£2,488.50 | ||
| 2 | BP08-400400-0500-12 | 400 | 250 | 500 | M12 | 50 |
|
£3,638.84 | ||
| 3 | BP08-400400-0650-12 | 400 | 250 | 650 | M12 | 50 |
|
£5,149.67 | ||
| 4 | BP08-500500-0600-12 | 500 | 300 | 600 | M12 | 50 |
|
£5,395.84 | ||
| 5 | BP08-500500-0750-12 | 500 | 300 | 750 | M12 | 50 |
|
£7,277.67 | ||
| 6 | BP08-630630-0700-12 | 630 | 350 | 700 | M12 | 50 |
|
£7,520.34 | ||
| 7 | BP08-630630-0850-12 | 630 | 350 | 850 | M12 | 50 |
|
£10,384.50 | ||
| 8 | BP08-800800-0800-12 | 800 | 500 | 800 | M12 | 50 |
|
£11,739.00 | ||
| 9 | BP08-800800-1000-12 | 800 | 500 | 1000 | M12 | 50 |
|
£16,339.17 | ||
| 10 | BP08-10001000-1000-12 | 1000 | 600 | 1000 | M12 | 50 |
|
£19,120.50 | ||
| 11 | BP08-10001000-1250-12 | 1000 | 600 | 1250 | M12 | 50 |
|
£23,646.00 | ||
| 12 | BP08-300300-0500-16 | 300 | 150 | 500 | M16 | 50 |
|
£2,665.84 | ||
| 13 | BP08-400400-0500-16 | 400 | 250 | 500 | M16 | 50 |
|
£3,707.67 | ||
| 14 | BP08-400400-0650-16 | 400 | 250 | 650 | M16 | 50 |
|
£5,264.00 | ||
| 15 | BP08-500500-0600-16 | 500 | 300 | 600 | M16 | 50 |
|
£5,502.00 | ||
| 16 | BP08-500500-0750-16 | 500 | 300 | 750 | M16 | 50 |
|
£7,422.34 | ||
| 17 | BP08-630630-0700-16 | 630 | 350 | 700 | M16 | 50 |
|
£7,659.17 | ||
| 18 | BP08-630630-0850-16 | 630 | 350 | 850 | M16 | 50 |
|
£10,586.34 | ||
| 19 | BP08-800800-0800-16 | 800 | 500 | 800 | M16 | 50 |
|
£12,008.50 | ||
| 20 | BP08-800800-1000-16 | 800 | 500 | 1000 | M16 | 50 |
|
£16,684.50 | ||
| 21 | BP08-10001000-1000-16 | 1000 | 600 | 1000 | M16 | 50 |
|
£19,507.84 | ||
| 22 | BP08-10001000-1250-16 | 1000 | 600 | 1250 | M16 | 50 |
|
£24,066.00 |
