Grindmaster
Electropermanent Magnetic Chuck for Grinding

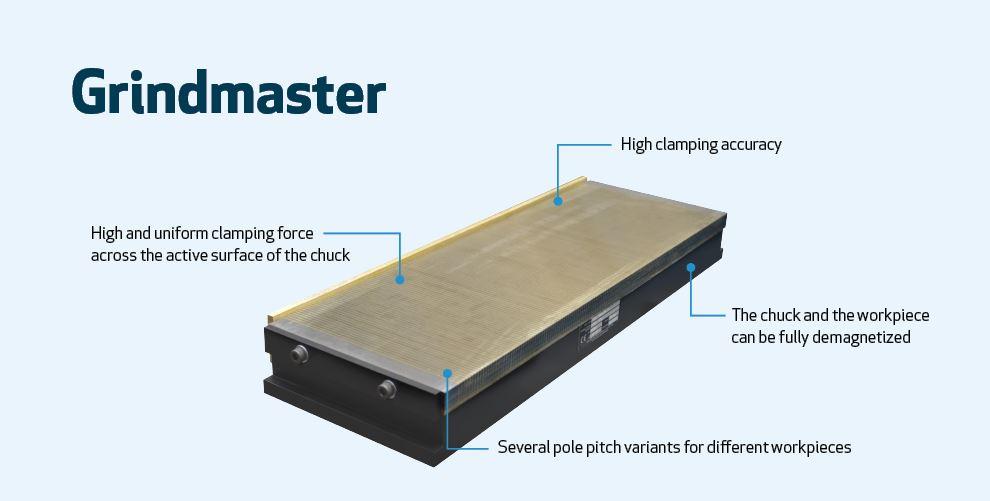

Key Features
- High clamping accuracy (“cold” magnetic system with permanent magnets)
- Minimum operating costs - only a short electric pulse
- High operational safety (the workpiece is fixed by permanent magnets even in case of power failure)
- High and uniform holding force across the active surface of the chuck
Description

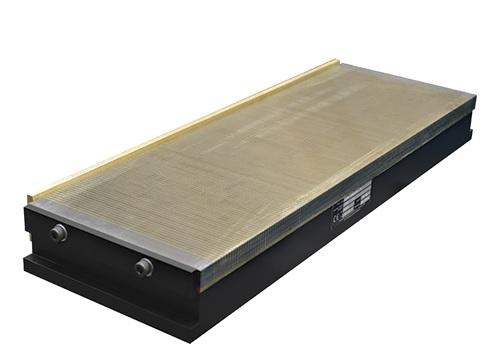

The Grindmaster electro-permanent magnetic chuck is highly accurate and can hold both small and thin parts as well as larger workpieces. A short electrical pulse is sufficient to turn it on and off and thus very economical. It has a high level of safety, where workpieces are still held by means of strong permanent magnets in the event of a sudden power failure. We can offer you several pole pitch variants. The chuck has a holding force of up to 120 N/cm2 evenly distributed across the surface of the chuck.Application: GrindingTechnology: Electro-permanentPole pitch: T5 4+1 mm or T18 15+3 mmHolding force: up to 120 N/cm2Poles: Transverse
Estimated delivery: On Request

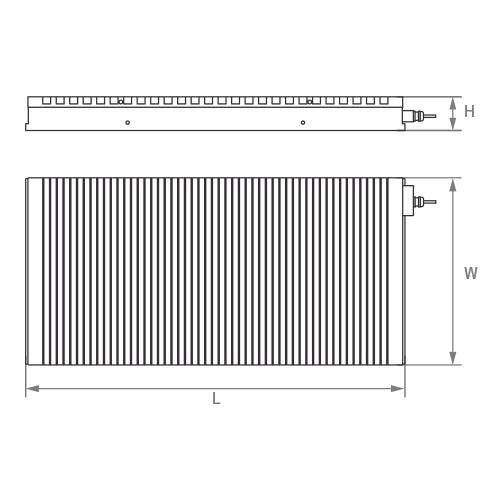

Dimensions
| # | Part No | Width (mm) | Length (mm) | Price | |
|---|---|---|---|---|---|
| 1 | GM200400T5 | 200 | 400 | ||
| 1 | GM200500T5 | 200 | 500 | ||
| 1 | GM200600T5 | 200 | 600 | ||
| 1 | GM300600T5 | 300 | 600 | ||
| 1 | GM400600T5 | 400 | 600 | ||
| 1 | GM400800T5 | 400 | 800 | ||
| 1 | GM200500T18 | 200 | 500 | ||
| 1 | GM200600T18 | 200 | 600 | ||
| 1 | GM300600T18 | 300 | 600 | ||
| 1 | GM400600T18 | 400 | 600 | ||
| 1 | GM400800T18 | 400 | 800 | ||
| 1 | GM3001000T18 | 300 | 1000 | ||
| 1 | GM5001000T18 | 500 | 1000 | ||
| 1 | GM6001000T18 | 600 | 1000 | ||
| 1 | GM6001500T18 | 600 | 1500 |
