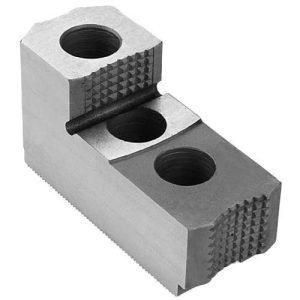

Gripper Jaws to suit 21 Inch Chuck
Set of 3 Jaws - 3mm X 60° Serrations
Key Features
- Bites into the Component for more Secure Gripping
- Stops Push Back or Movement in Jaws
- Screws can be used to Adjust Grip Length
- Case Handened for Longevity
Description
Gripper jaws can be a great way of getting round part movement in roughing operations, this is by use of teeth in the jaw which bite into the material. This biting can also be a great way to get round problems using black bar or other rough material. The depth of the backstop on the jaw can be adjusted by using screws, these screws are ground and hardened to give you a good backstop for the component.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Gripping Range (mm) | To Suit | Height (mm) | Tennon (mm) | Pitch (mm) - Bolt Size | Backstop Screw | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3065 | 250-380 | Billet | 100 | 25 | 60 - M20 | M10 | £1,036.00 | ||
| 1 | 3066 | 380-510 | Billet | 100 | 25 | 60 - M20 | M10 | £1,143.00 | ||
| 1 | 3067 | 510-640 | Billet | 115 | 25 | 60 - M20 | M10 | £1,393.00 | ||
| 1 | 3068 | 640-760 | Billet | 115 | 25 | 60 - M20 | M10 | £1,519.00 |
