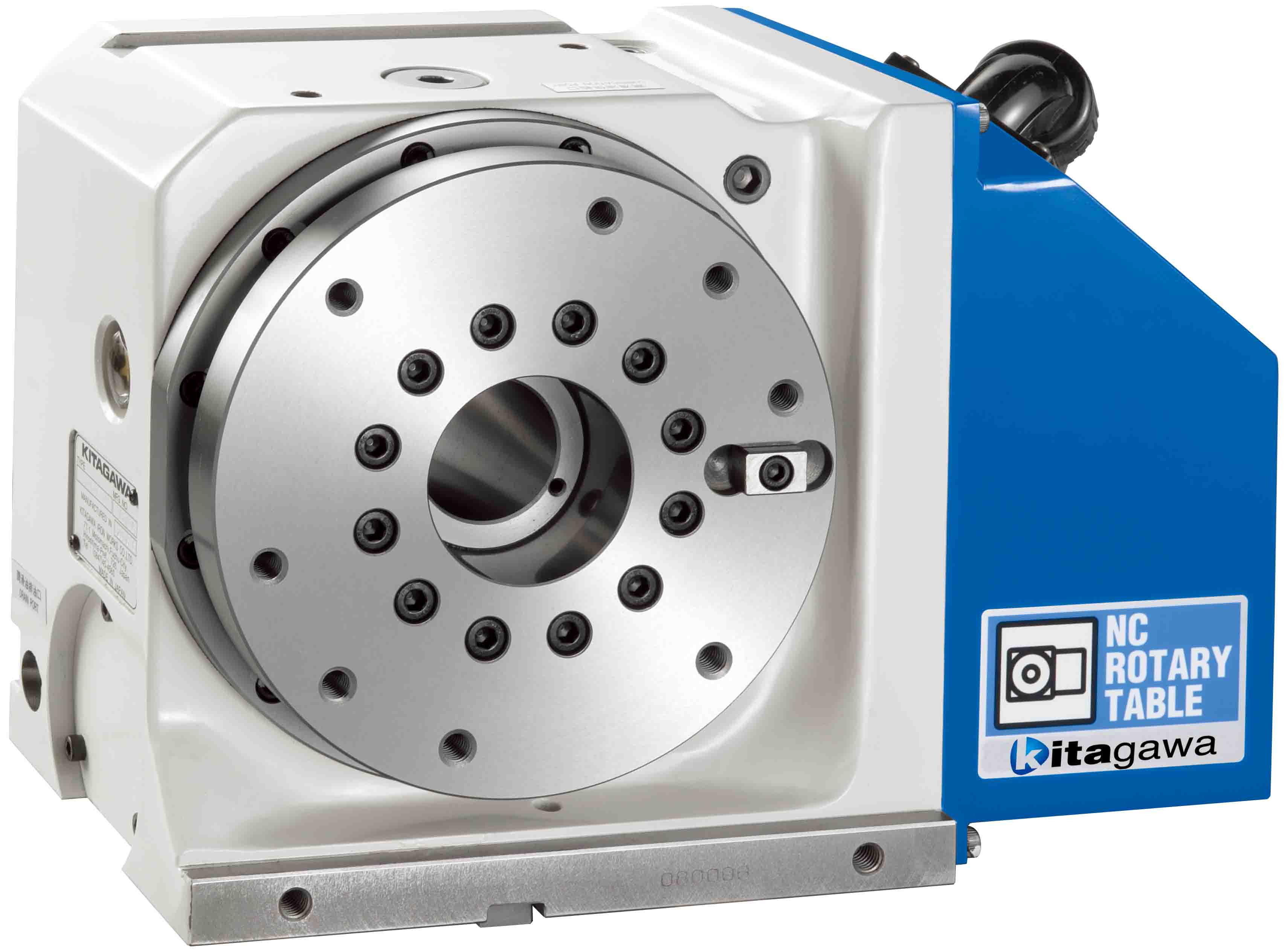

GT Series
High Clamping Torque 4th Axis Rotary Table
Key Features
- High clamping torque for heavy machining
- High speed and accuracy
- Rotary joint as an option
- Compact Design
Description
Kitagawa GT series rotary tables are high clamping torque tables to allow for heavy duty machining, useful for large trunnion setups or larger part holding. Available with all motor types in right or left hand configurations to suit a variety of machine models. Price excludes motor and interface cables. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | GT200 | 200 | 45 | 140 | 820 | 1 | 4 |
|
£10,651.00 | ||
| 2 | GT250 | 250 | 70 | 180 | 1600 | 1.95 | 4 |
|
£11,308.00 | ||
| 3 | GT320 | 320 | 105 | 225 | 2800 | 4.49 | 4 |
|
£13,057.00 | ||
| 4 | GT200RAV00 | 200 | 45 | 140 | 820 | 1 | 4 | £17,142.00 | |||
| 5 | GT250RAV00 | 250 | 70 | 180 | 1600 | 1.95 | 4 | £17,800.00 | |||
| 6 | GT320RAV00 | 320 | 105 | 225 | 2800 | 4.49 | 4 | £19,533.00 |
