Halter Turnstacker
Halter Turnstacker
Key Features
- Complete plug-and-play solution for each brand of CNC machine – new or existing.
- Set-up in under 5 minutes.
- No robotics experience required.
- Move easily from one CNC machine to another.
Description

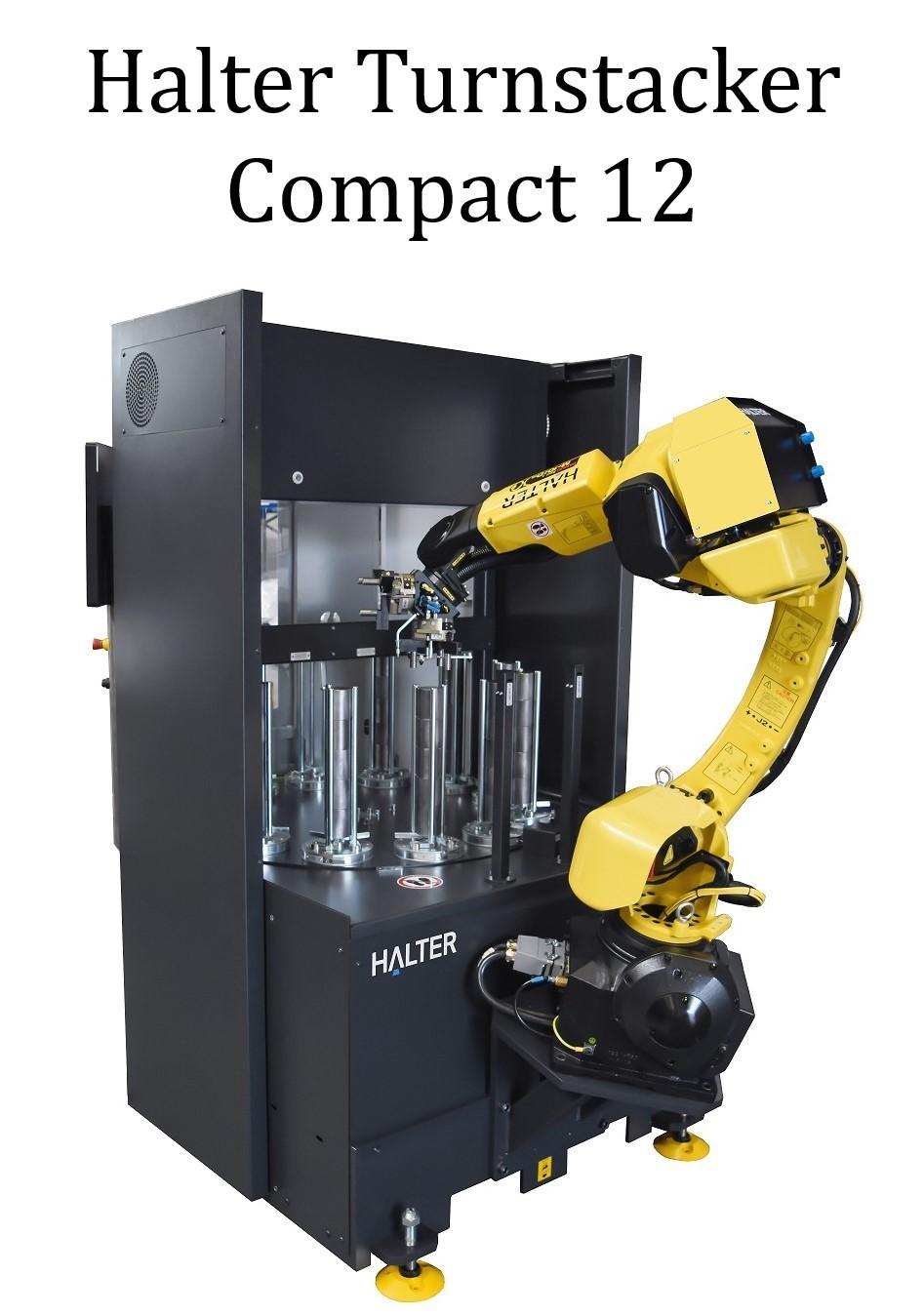

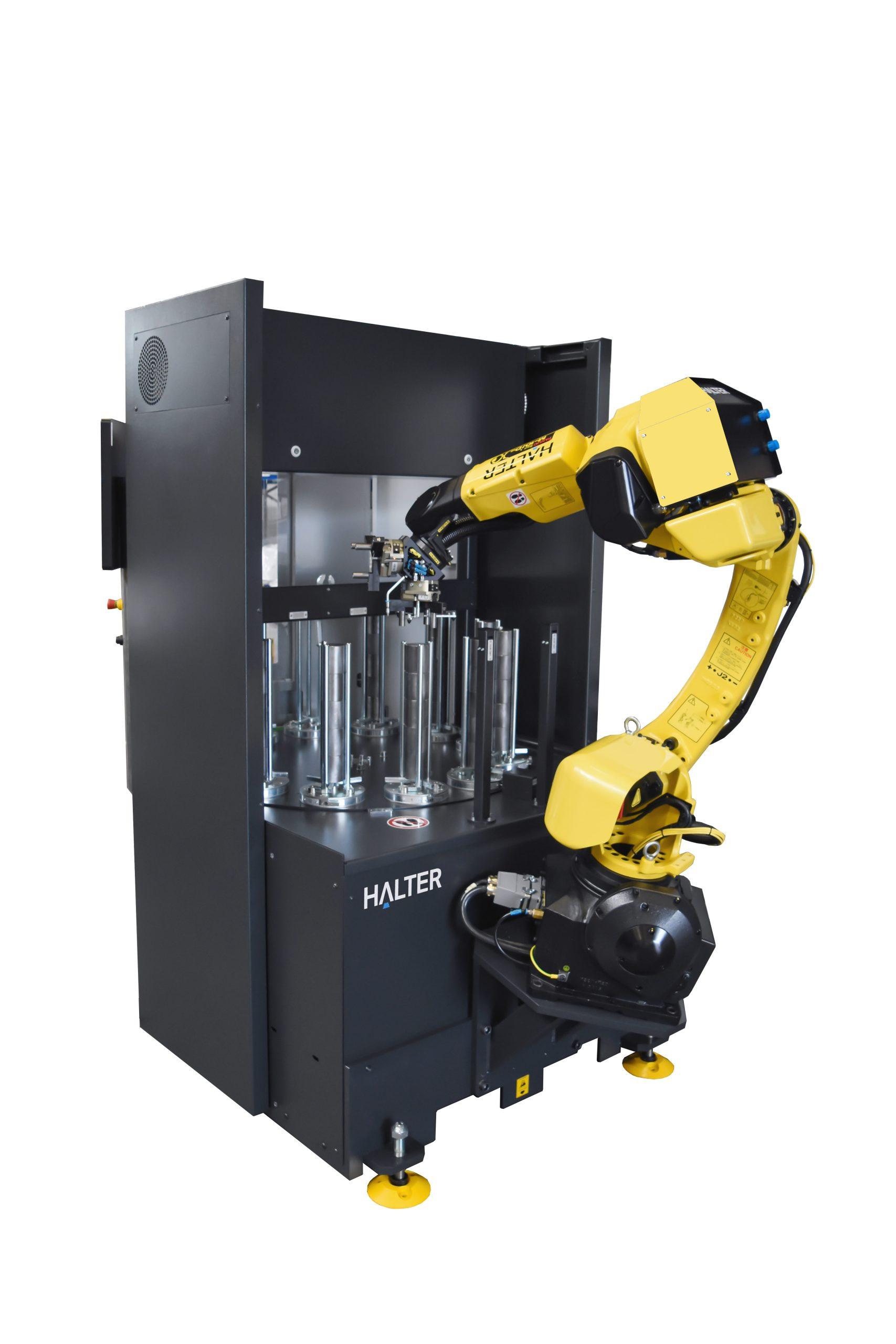

Halter Turnstacker HALTER CNC Automation has developed the HALTER LoadAssistants, based on its many years of experience in the machining industry and production automation: The all-in-one Universal (for turning and milling), the TurnStacker and the MillStacker. Compact, Premium and Big. Available with a 12kg, 25kg, 35kg or 70kg robot arm. All Halter loading robots can be configured individually according to customer requirements Complete Plug & play solutions for every brand of CNC machine, New or existing The Halter Turnstacker Compact 12 is a robotic loading solution for turning with the smallest footprint in our TurnStacker product range. Great for loading flanges and gears. It has a high capacity for diameters up to 160 mm. The TurnStacker Premium 25/35 is a robotic loading solution for turning. Great for loading flanges and gears. It has a high capacity for diameters up to 230 mm. The TurnStacker Big 35/70 is a robotic loading solution for turning and is designed especially for loading heavy workpieces. It also has a high capacity for diameters up to 300 mm. Please contact 1MTA for more details
Universal
Millstacker
Halter Automation
Estimated delivery: On Request
Dimensions
| # | Part No | Payload | Workpiece diameter (min-max) | Max stacking height | Max height of workpiece | Price | |
|---|---|---|---|---|---|---|---|
| 1 | HalterTurnstackerCompact12 | 12Kg | Ø 35-160mm | 350mm | 175mm | ||
| 1 | HalterTurnstackerPremium25 | 25Kg | Ø 43-230mm | 350mm | 175mm | ||
| 1 | HalterTurnstackerPremium35 | 35Kg | Ø 43-230mm | 350mm | 175mm | ||
| 1 | HalterTurnstackerBig35 | 35Kg | Ø 43-300mm | 450mm | 225mm | ||
| 1 | HalterTurnstackerBig70 | 70Kg | Ø 43-300mm | 450mm | 225mm |
