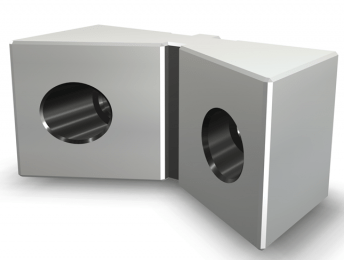

Hard V Jaw (SVF-S03)
Hard v-jaws for all types of SVF flexible vices
Key Features
- Easy machining of round workpieces
- High precision and high clamping force
- Wide range of accessories for flexibility
- Maximise your machining envelope
Description
Fixed v-jaws for the SVF range of flexible vices. There are bolt-on hard v-jaws to fit all types of fixed jaw in the SVF range including wedge type and non-wedge type. These v-jaws have a centre key for accurate positioning.
Estimated delivery: On Request

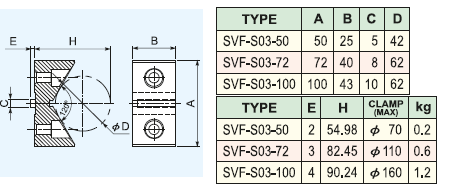

Dimensions
| # | Part No | Max Dia. (mm) | Width (mm) | Height (mm) | Used on | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-S03-50 | 70 | 50 | 25 | All SVF 50mm |
|
£84.00 | ||
| 2 | SVF-S03-72 | 110 | 72 | 40 | All SVF 72mm |
|
£108.50 | ||
| 3 | SVF-S03-100 | 160 | 100 | 43 | All SVF 100mm |
|
£117.84 |
