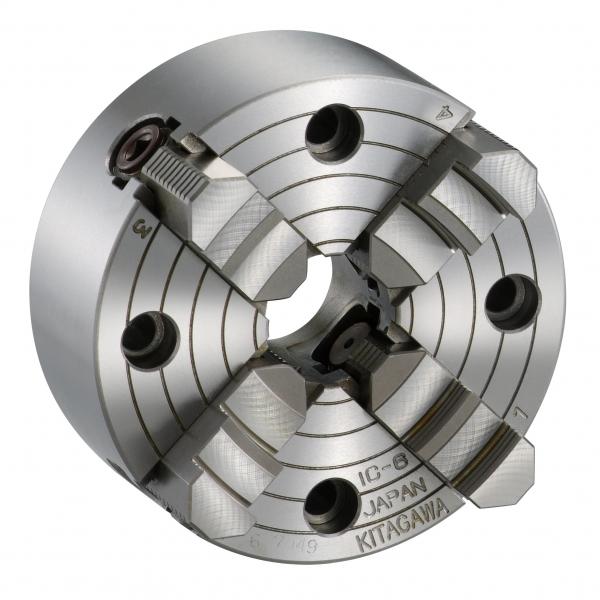

IC Series
Standard 4 Jaw Independent Chuck with Straight Recess
Key Features
- Cross guide reduces runout and distortion
- Ideal for irregular shaped components
- Independent jaws allow for off centre holding
Description
Kitagawa chucks are manufactured from high grade alloy steel. The IC series are four jaw independent chucks with front mount holes. IC series chucks are supplied with a set of hard jaws.
Estimated delivery: On Request
Dimensions
| # | Part No | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | IC-4 | 30 | 5 | 2000 | £947.00 | |||
| 2 | IC-6 | 40 | 6 | 1600 |
|
£1,017.00 | ||
| 3 | IC-8 | 50 | 10 | 1600 |
|
£1,335.00 | ||
| 4 | IC-10 | 55 | 14 | 1600 | £1,661.00 | |||
| 5 | IC-12 | 65 | 16 | 1400 | £2,042.00 | |||
| 6 | IC-14 | 75 | 17 | 1400 | £2,360.00 | |||
| 7 | IC-16 | 90 | 20 | 1200 | £3,018.00 | |||
| 8 | IC-18 | 100 | 20 | 1200 | £3,429.00 |
