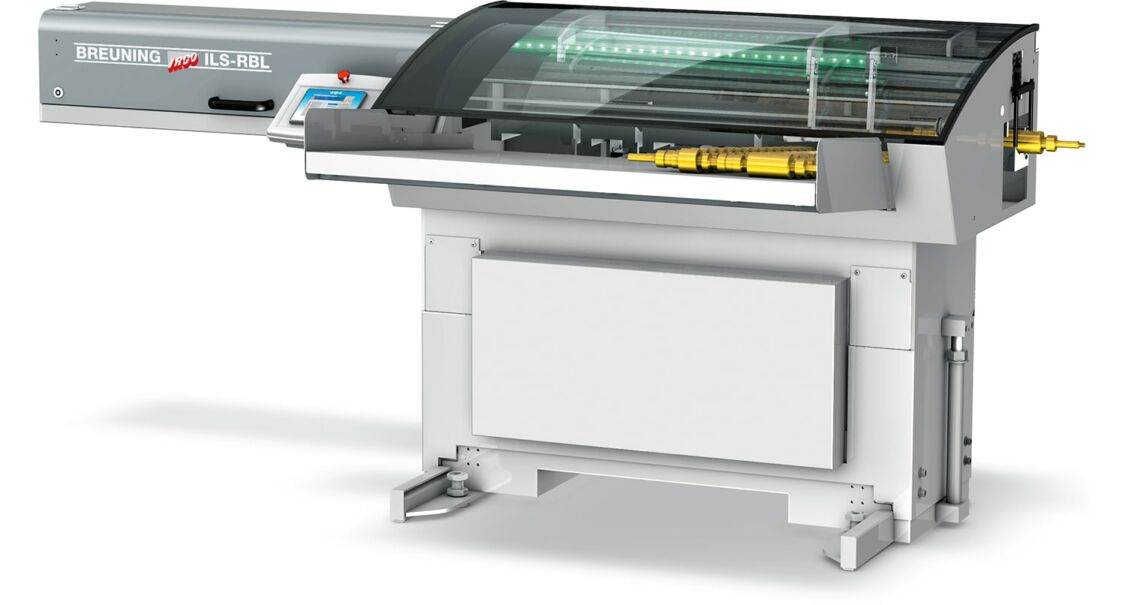

ILS-RBL Automatic workpiece loader

Automatic workpiece loader

Description

Automatic workpiece loader

ILS-RBL

Automatic workpiece loader with chute



Application area:

  • Ideal for medium to large batch sizes and semi-finished parts

Properties:

  • Short reloading times due to a single-piece pusher system and high traverse speeds
  • High degree of operating comfort thanks to a 14.5-cm (5.7″) graphic touch display
  • Process-reliable feeding of semi-finished parts with work-piece specific adaptation of the feeding mechanism
  • Minimal energy consumption; no compressed air supply required
  • Large storage capacity

Working range:

  • Round material diameters: maximum 80 mm / 105 mm
  • Profile material enveloping circle: maximum 80 mm /105 mm only possible with ILS-TBL
  • Bar lengths: maximum 800 mm /1200 mm (other lengths available upon request)

Special features:

  • Easy replacement of the spindle liner tubes thanks to radial slide of the magazine (optionally axial slide)
