Description

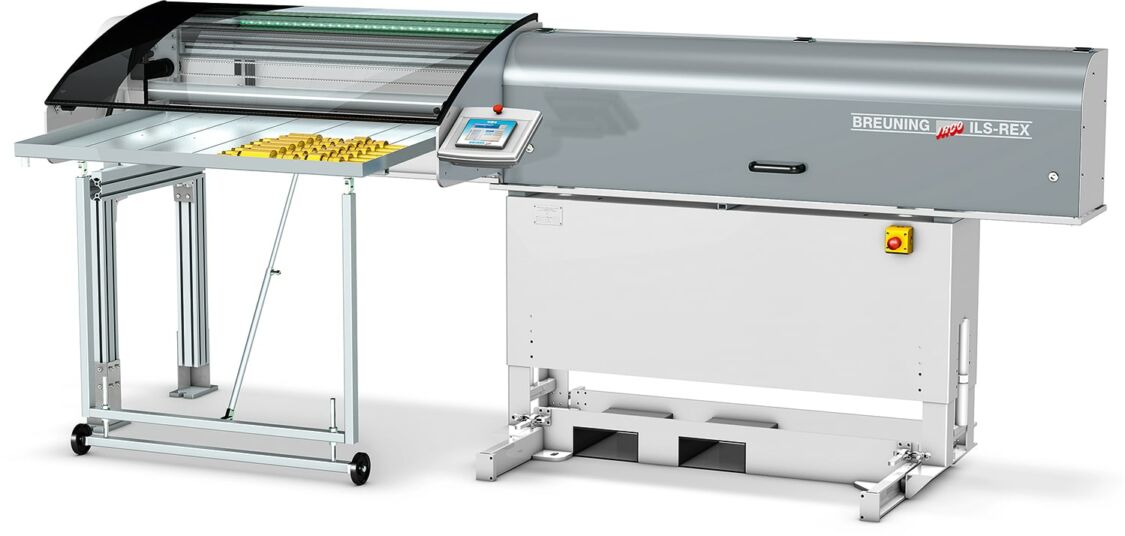

Automatic lathe unloading system

ILS-REX

Completely automatic precision unloading

Application area:

• Ideal for medium to large-sized batches

Properties:

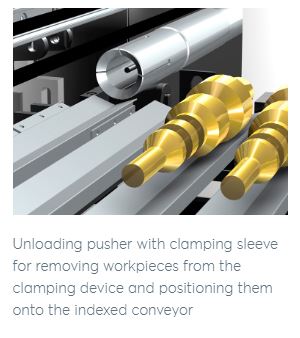

• Gentle reloading of the workpieces by the machine spindle
• High degree of operating comfort thanks to a 14.5-cm (5.7″) graphic touch display
• Large storage capacity

​Working range:

• Round material diameters: maximum 80 mm / 100 mm

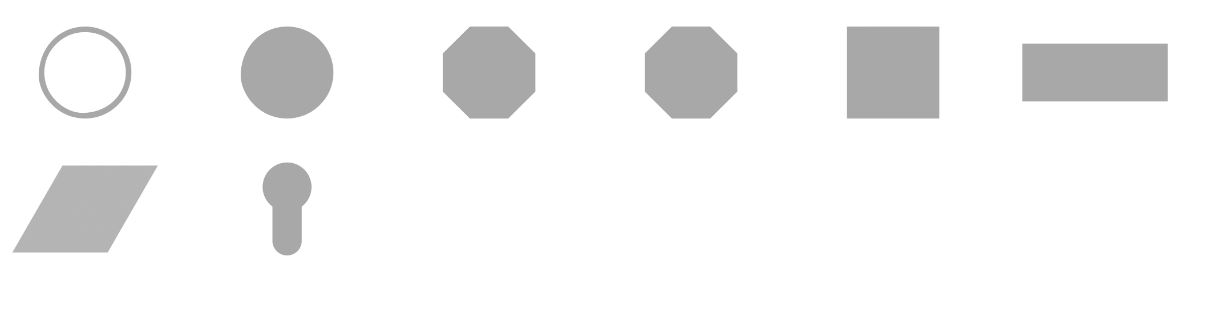

• Profile material: enveloping circle from 80 mm / 100 mm only possible with ILS-TEX
• Bar lengths: maximum 800 mm / 1200 mm (other lengths available upon request)

​Special features:

• Easy replacement of the spindle liner tubes thanks to radial slide of the magazine (optionally axial slide)
