Automated loading of workpieces

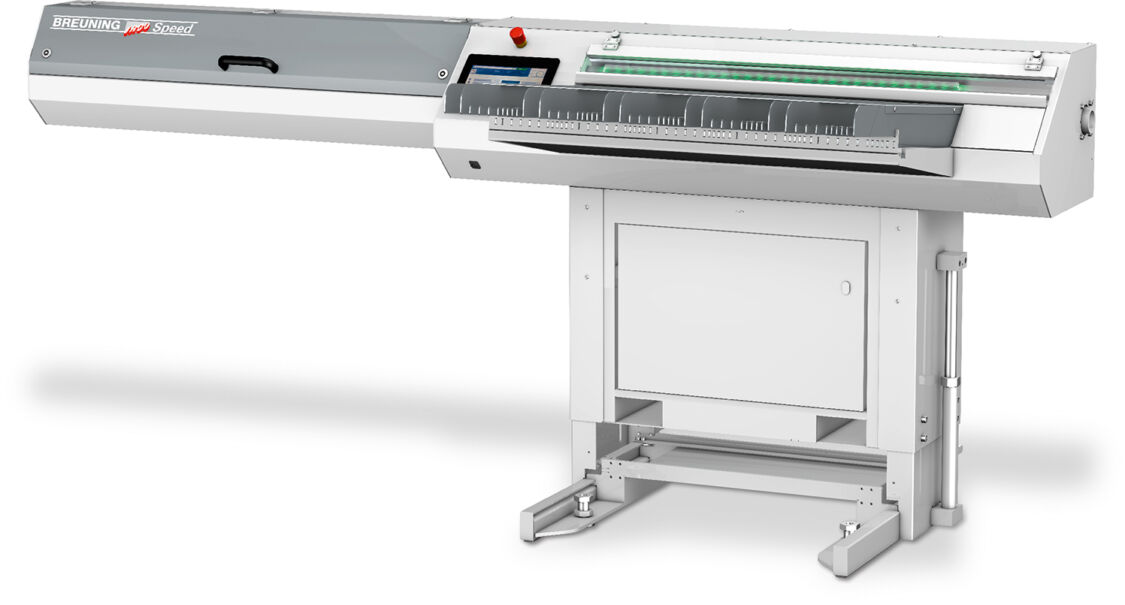

ILS-Speed

Workpiece quick-loading machine

Application area:

• For quick loading of saw cuttings and blanks

Properties:

• Insertion time approx. 3-4 sec (depending on signal exchange)
• Freely configurable shaft loading, max. 4 shafts possible
• With LED status display, glass cover and transverse displacement, with controlled drive
• Single-stage feed system
• Motorised adjustment of material guide and centring device
• IRCO standard loader interface
• PLC control, integrated terminal with touch screen
• *** without push rod ***

Working range:

• Saw cuttings Ø 6 – 50 mm, blanks on request
• Shaft depth: 1000 mm, max. load 90 kg
• with shaft loading in basic version: Bar length: min. 50 – max. 1000 mm length
• for shaft loading with extension: Saw sections: min. 50 – max. 200 mm length Shaft width max. 210 mm, max. extension 4 shafts
