Automated loading of workpieces

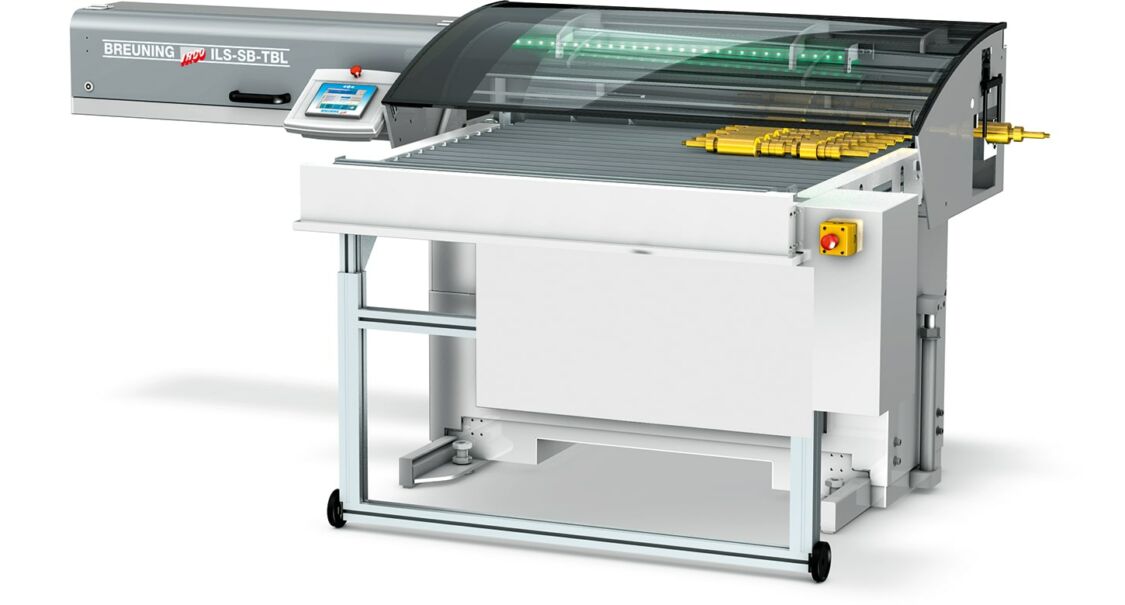

ILS-TBL

Automatic workpiece loader

Application area:

• Ideal for medium to large batch sizes and semi-finished parts

Properties:

• Short reloading times due to a single-piece pusher system and high traverse speeds
• High degree of operating comfort thanks to a 14.5-cm (5.7″) graphic touch display
• Process-reliable feeding of semi-finished parts with work-piece specific adaptation of the feeding mechanism
• Minimal energy consumption; no compressed air supply required
• Large storage capacity

​Working range:

• Round material diameters: maximum 80 mm / 105 mm
• Profile material enveloping circle: maximum 80 mm /105 mm only possible with ILS-TBL
• Bar lengths: maximum 800 mm /1200 mm (other lengths available upon request)

Special features:

• Easy replacement of the spindle liner tubes thanks to radial slide of the magazine (optionally axial slide)
