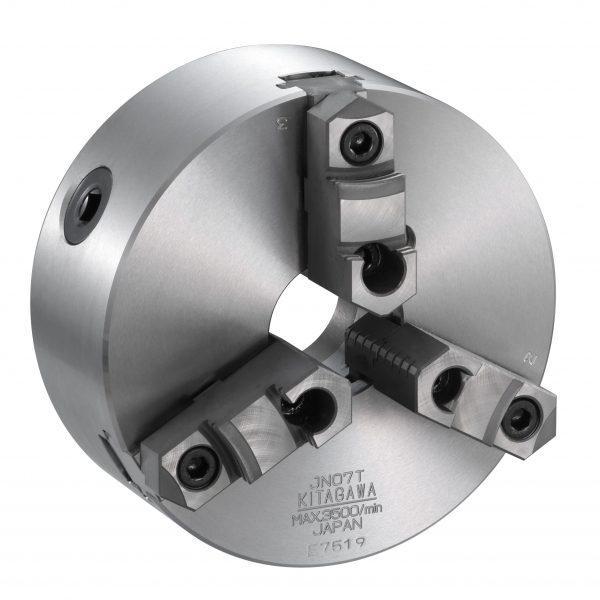

JN..T Series
Standard Scroll Chuck with Two Piece Jaw
Key Features
- Quality steel use for corrosion resistance
- High Rigidity, durability and rotational speed
- Cross guide reduces runout and distortion
- Two piece jaws for quicker and easier jaw change over
Description
Scroll chuck with 2 piece Jaw (Straight Recess) - 3 Jaw Scroll Chuck featuring steel body construction to increase body rigidity and improved durability.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions

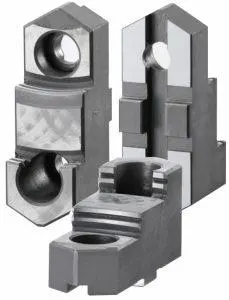

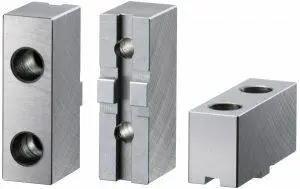

| # | Part No | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Matching Hard Jaws | Matching Soft Jaws | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | JN06T | 45 | 31 | 4000 | HBS06C | SBS06 |
|
£785.00 | ||
| 2 | JN06TN | 45 | 31 | 4000 | HBS06C | SBS06 |
|
£838.00 | ||
| 3 | JN07T | 55 | 31 | 3500 | HBS07C | SBS07 |
|
£876.00 | ||
| 4 | JN07TN | 55 | 31 | 3500 | HBS07C | SBS07 |
|
£1,010.00 | ||
| 5 | JN07T109 | 55 | 31 | 3500 | HBS07C | SBS07 | £1,010.00 | |||
| 6 | JN09T | 70 | 37 | 2900 | HBS09C | SBS09 |
|
£1,111.00 | ||
| 7 | JN09TN | 70 | 37 | 2900 | HBS09C | SBS09 |
|
£1,246.00 | ||
| 8 | JN10T | 85 | 46 | 2500 | HBS10C | SBS10 |
|
£1,481.00 | ||
| 9 | JN10TN | 85 | 46 | 2500 | HBS10C | SBS10 |
|
£1,687.00 | ||
| 10 | JN12T | 96 | 55 | 2200 | HBS12C | SBS12 |
|
£2,022.00 | ||
| 11 | JN12TN | 96 | 55 | 2200 | HBS12C | SBS12 |
|
£2,271.00 |
