JS Series
Standard Four Jaw Scroll Chuck
Key Features
- Usefull for thin wall parts
- High Rigidity, durability and rotational speed
- Quality steel use for corrosion resistance
- Cross guide reduces runout and distortion
Description

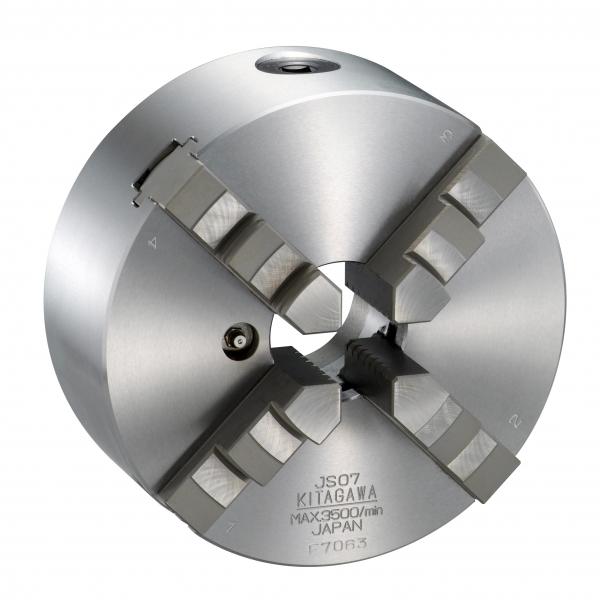

Kitagawa JS07 4-Jaw Scroll Chuck. The JS series scroll chuck provides the optimum solution for gripping valves, pipe joints and other irregularly shaped components.
Estimated delivery: On Request
Dimensions
| # | Part No | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Internal Gripping Jaw | External Gripping Jaw | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | JS07 | 55 | 31 | 3500 | 9710700200 | 9710701200 | £1,126.00 | ||
| 1 | JS09 | 70 | 37 | 2900 | 9710700210 | 9710701210 | £1,629.00 |
