KFJB 4 Jaw Large Bore Series
4 Jaw Large Bore Power Chucks
Description
The KFJB Series of Four jaw wedge style power chucks suitable for irregular work pieces All four-jaws move at once in a single actuation to enable gripping of square, rectangular or irregular work pieces . All sliding control surfaces are hardened and ground for accuracy and long service life with good repeatability. Mounting: Recess mount, requires additional adaptor. Standard Equipment: Chuck includes mounting bolts, T-nuts and jaw mounting bolts. Also included blank Drawnut and mounting wrench. KFJ Series
Dimensions
| # | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|

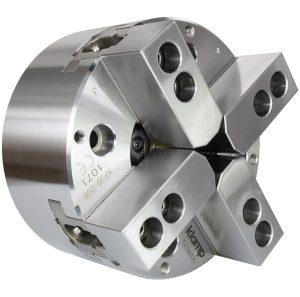

| 1 | KFJB-206 | 52 | 5.5 | 42.5 | 4500 | £2,042.00 | ||

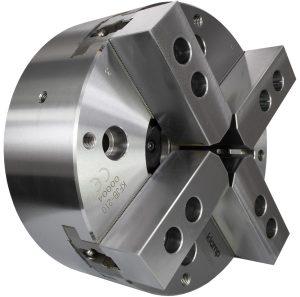

| 1 | KFJB-210 | 81 | 8.8 | 80 | 3200 | £2,840.00 | ||

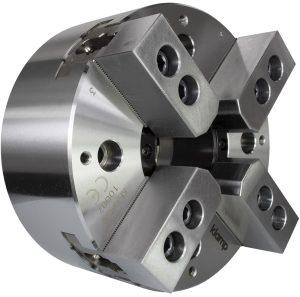

| 1 | KFJB-208 | 66 | 7.4 | 63 | 3600 | £2,113.00 | ||
| 1 | KFJB-210A8 | 81 | 8.8 | 80 | 3200 | £3,097.00 | ||
| 1 | KFJB-208A6 | 66 | 7.4 | 63 | 3600 | £2,141.00 | ||
| 1 | KFJB-206A5 | 52 | 5.5 | 42.5 | 4500 | £2,064.00 |
