Kopal Mini Clamps
Low Profile Edge Clamps
Key Features
- low profile cam action clamps
- Fingers pull the workpiece down
- Suitable for regular and irregular shaped parts
- 3900N clamping force at 2.5mm high
Description

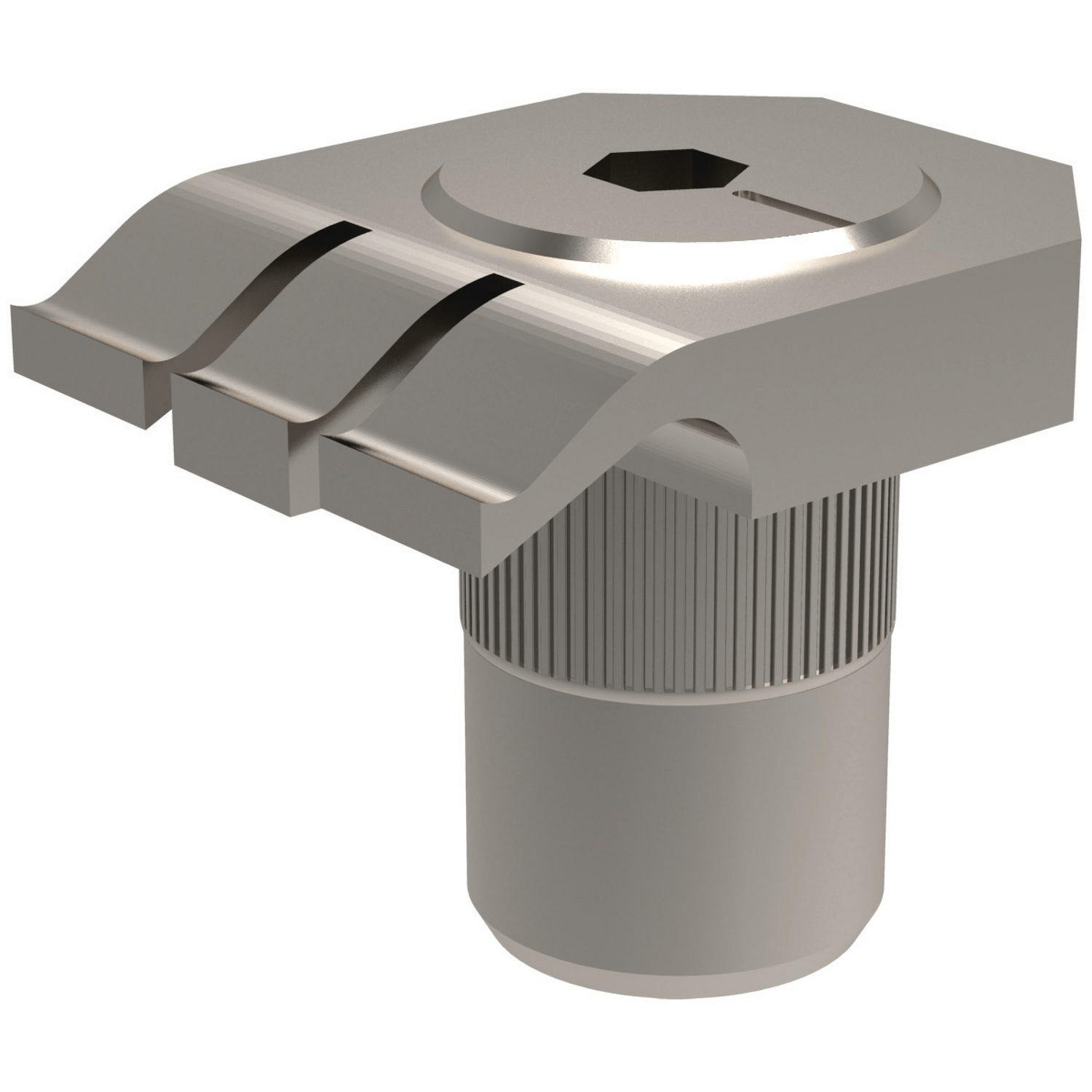

These low profile cam action clamps and stops have a holding force of 3900N and have fingers that push the workpiece down before clamping, even on castings that have negative draft! The stops are mounted with special screws to ensure high precision locating. The spring steel clamping element rotates around an eccentric insert that provides 1.2mm of clamping in all directions. Stops and clamps are available in low profile and raised versions. The single stop with only one rigid stop is used for pieces over 44.5mm long. The double stop with 2 rigid stops is used for small size pieces.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Construction | Clamping height (mm) | Max torque (Nm) | Price | |
|---|---|---|---|---|---|---|
| 1 | 25210 | Low Profile Clamp | 2.5 | 8.95 | £ Price on application | |
| 1 | 25215 | Raised Clamp | 7.5 | 8.95 | £ Price on application | |
| 1 | 25105 | Single Stop | 2.5 | N/A | £ Price on application | |
| 1 | 25110 | Double Stop | 2.5 | N/A | £ Price on application | |
| 1 | 25115 | Raised Single Stop | 7.5 | N/A | £ Price on application | |
| 1 | 25120 | Raised Double Stop | 7.5 | N/A | £ Price on application | |
| 1 | 25125 | Swivel Stop | 2.5 | N/A | £ Price on application | |
| 1 | 25130 | Raised Swivel Stop | 7.5 | N/A | £ Price on application |
