KPC Series
High Precision Pneumatic Power Chuck
Key Features
- High Repeatability
- Ideal for finishing or high precision processes
- Built-in Pneumatic Cylinder
Description

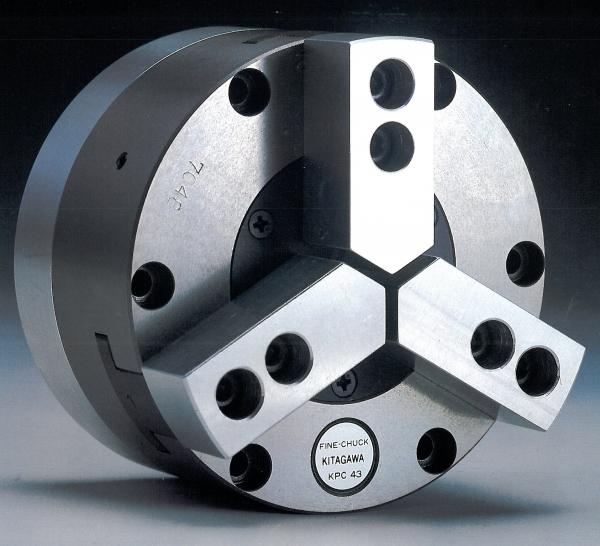

Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa KPC series are chucks with built-in cylinders, the KPC units have very high repeatability making them ideal for finishing and precision processes.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Max. Pressure (Mpa) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | KPC803C100P | 2.5 | 4.3 | 6000 | 0.7 |
|
£2,058.00 | ||
| 2 | KPC803C100EP | 2.5 | 4.3 | 6000 | 0.7 |
|
£2,467.00 | ||
| 3 | KPC803C100EP1 | 2.5 | 4.3 | 6000 | 0.7 |
|
£4,028.00 | ||
| 4 | KPC43C048P | 1.2 | 7.6 | 6000 | 0.7 |
|
£3,105.00 | ||
| 5 | KPC43C048EP | 1.2 | 7.6 | 6000 | 0.7 |
|
£3,561.00 | ||
| 6 | KPC43C048EP1 | 1.2 | 7.6 | 6000 | 0.7 |
|
£4,028.00 | ||
| 7 | KPC43C100P | 2.5 | 7.6 | 6000 | 0.7 |
|
£2,058.00 | ||
| 8 | KPC43C100EP | 2.5 | 7.6 | 6000 | 0.7 |
|
£2,467.00 | ||
| 9 | KPC43C100EP1 | 2.5 | 7.6 | 6000 | 0.7 |
|
£4,028.00 | ||
| 10 | KPC63C100P | 2.5 | 11.6 | 4000 | 0.7 |
|
£2,560.00 | ||
| 11 | KPC63C100EP | 2.5 | 11.6 | 4000 | 0.7 |
|
£3,065.00 | ||
| 12 | KPC63C100EP1 | 2.5 | 11.6 | 4000 | 0.7 |
|
£6,018.00 |
