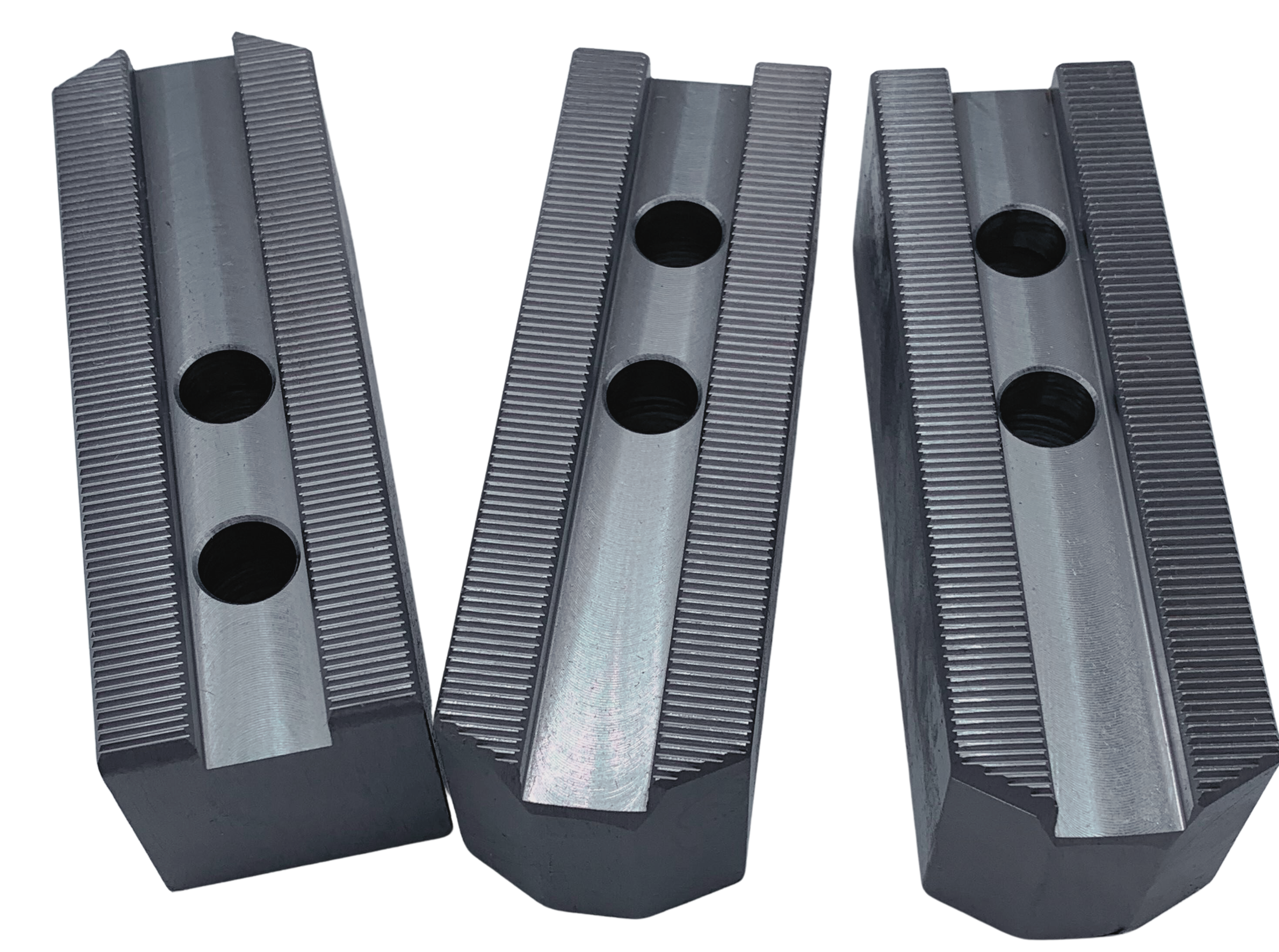

KSJ-08L Steel Soft Jaws 8 Inch
Set of 3 Jaws 1.5 x 60°
Key Features
- Material can be Case Hardened
- Wide range of Heights and Lengths
- Custom Jaws also Available
Description
KSJ-08L Steel serrated soft jaws to suit a 8 Inch power chuck. Jaws are manufactured from 080M15 Steel. Good Quality of of material allows for machining with a good finish.
- KSJ-08L-102-P
- Chuck Diameter: 210mm
- Length: 102mm
- Width: 35mm
- Height: 37mm
- Slot: 14mm
- Hole Spacing: 25mm
- Bolt Size: M12
- Pointed Jaws
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Length (mm) | Height (mm) | Width (mm) | Tennon (mm) | Pitch (mm) + Bolt Size | End Style | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | KSJ-08L | 102 | 37 | 35 | 14 | 25 - M12 | Pointed | £40.53 |
