Laminated Blocks
Silver brazed laminated blocks for circular and rectangular chucks
Key Features

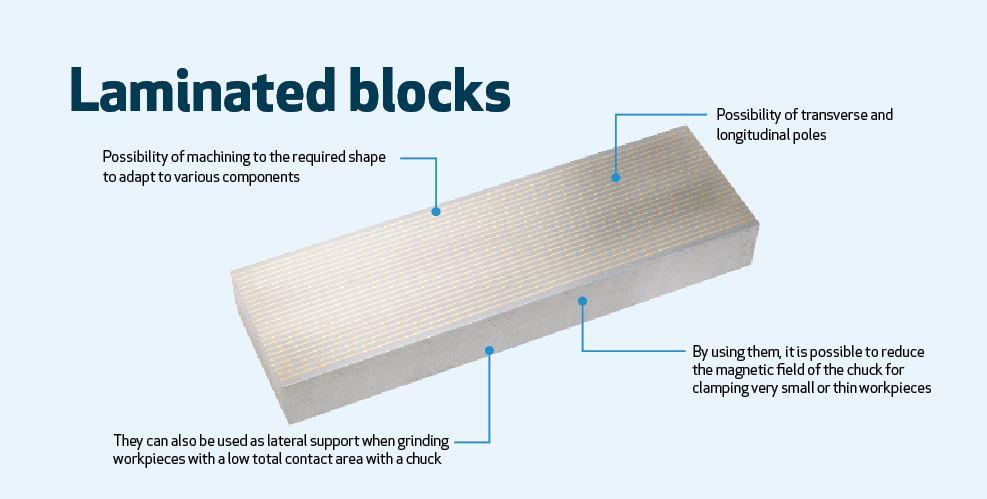

- Possibility of machining to the required shape to adapt to various components
- Possibility of transverse and longitudinal poles
- By using them, it is possible to reduce magnetic field of the chuck for clamping of too small or thin workpieces

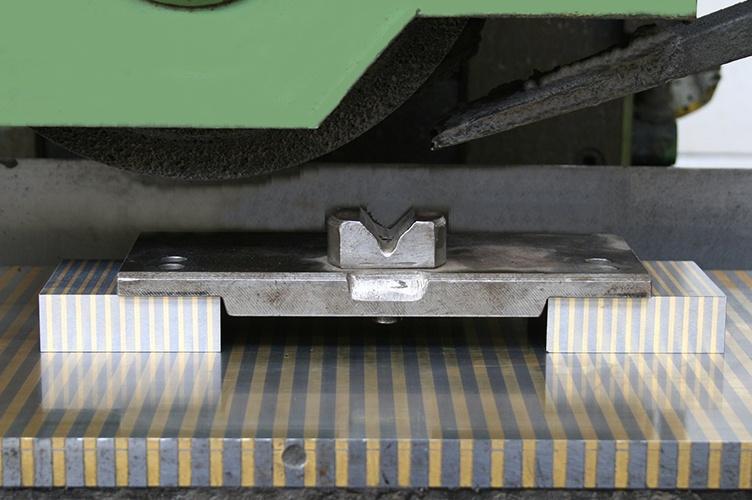

- They can be used also as a lateral support when grinding workpieces with a low total contact area with a chuck ( e.g. hollow thin-walled sections)
Description

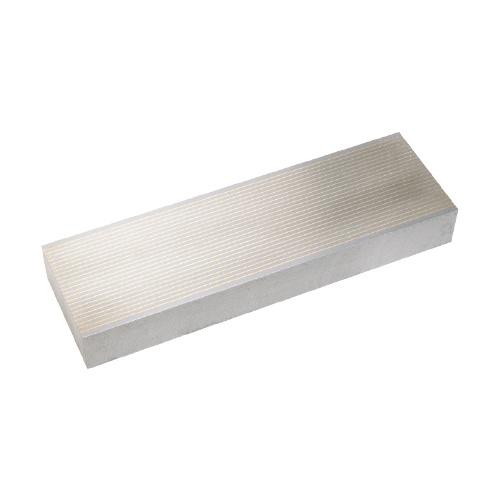

These laminated blocks are made of a magnetically highly conductive material. They are composed of a combination of steel and brass laminations. For grinding, they are placed on the top pole plate of the magnetic chuck and after its activation, magnetic flux can enter freely into the workpiece. The blocks have a very stable construction, whereas individual laminations are not joined with bolts or screws. This allows modification of these laminated blocks according to individual customer requirements.
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Dimensions (mm) | Height (mm) | Price | |
|---|---|---|---|---|---|
| 1 | LB25100150TP | 100x150 | 25 | ||
| 1 | LB25100200LP | 100x200 | 25 | ||
| 1 | LB25100600LP | 100x600 | 25 | ||
| 1 | LB25100650LP | 100x650 | 25 | ||
| 1 | LB2510075TP | 75x100 | 25 | ||
| 1 | LB25150200LP | 150x200 | 25 | ||
| 1 | LB25150350LP | 150x350 | 25 | ||
| 1 | LB25200100TP | 200x100 | 25 | ||
| 1 | LB25200300LP | 200x300 | 25 | ||
| 1 | LB25200400LP | 200x400 | 25 | ||
| 1 | LB25300200TP | 300x200 | 25 | ||
| 1 | LB25300250TP | 300x250 | 25 | ||
| 1 | LB25300400LP | 300x400 | 25 | ||
| 1 | LB25400300TP | 400x300 | 25 | ||
| 1 | LB25400400LP | 400x400 | 25 | ||
| 1 | LB2575320LP | 75x320 | 25 | ||
| 1 | LB2575400LP | 75x400 | 25 | ||
| 1 | LB2575600LP | 75x600 | 25 | ||
| 1 | LB2575650LP | 75x650 | 25 |
