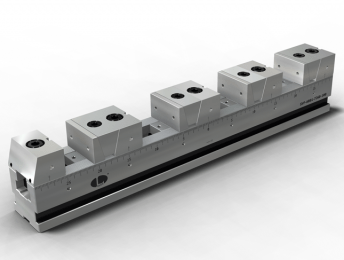

Leave Flexible Vice (SVF-A)
Single Piece Clamping
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
The SVF-A range of flexible vices from Leave are an effortless way of clamping multiple workpieces in your milling machine. Simply position the moving and fixed jaws to suit the size of the workpieces and clamp as many parts in your workspace as you can fit. The SVF-A range of vices use single directional clamping wedges so each component has its own clamping screw. This allows for easy loading in vertical or horizontal orientations. The SVF series of vices are all manufactured from tool steel treated to HRC 55 and fully ground. A range of jaws, parallels, workstops and other accessories is available to maximise the flexibility of this system and allow for regular and irregular shaped workpieces. All SVF-A vices come equipped to clamp 3 or 4 parts but additional jaws can be purchased to clamp additional workpieces.
Estimated delivery: On Request

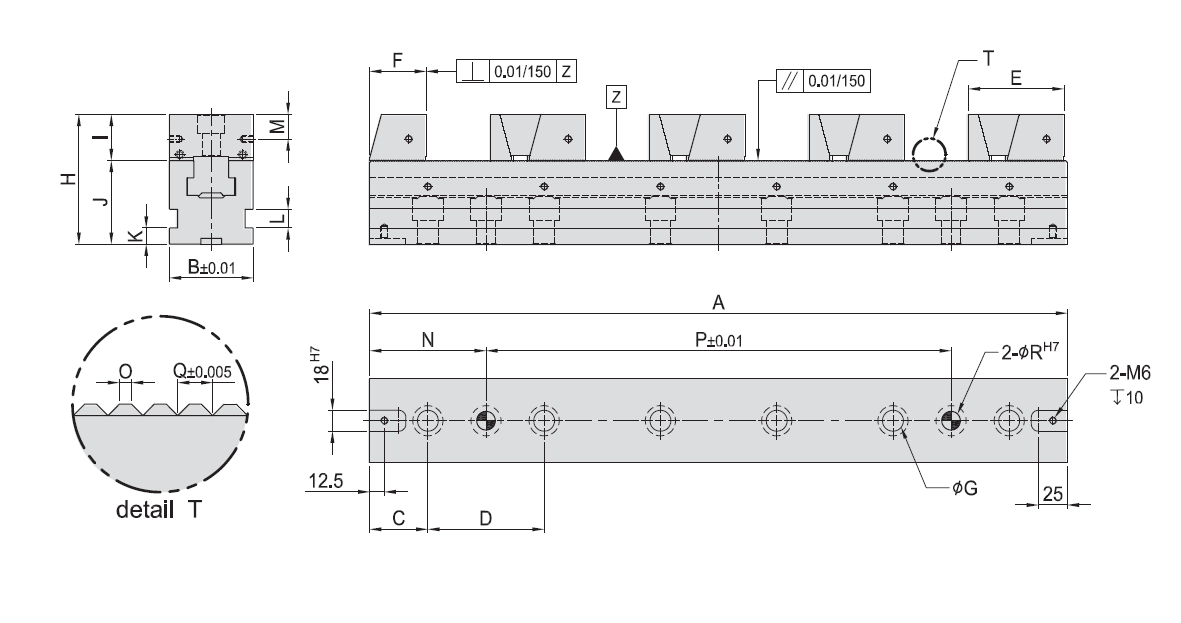

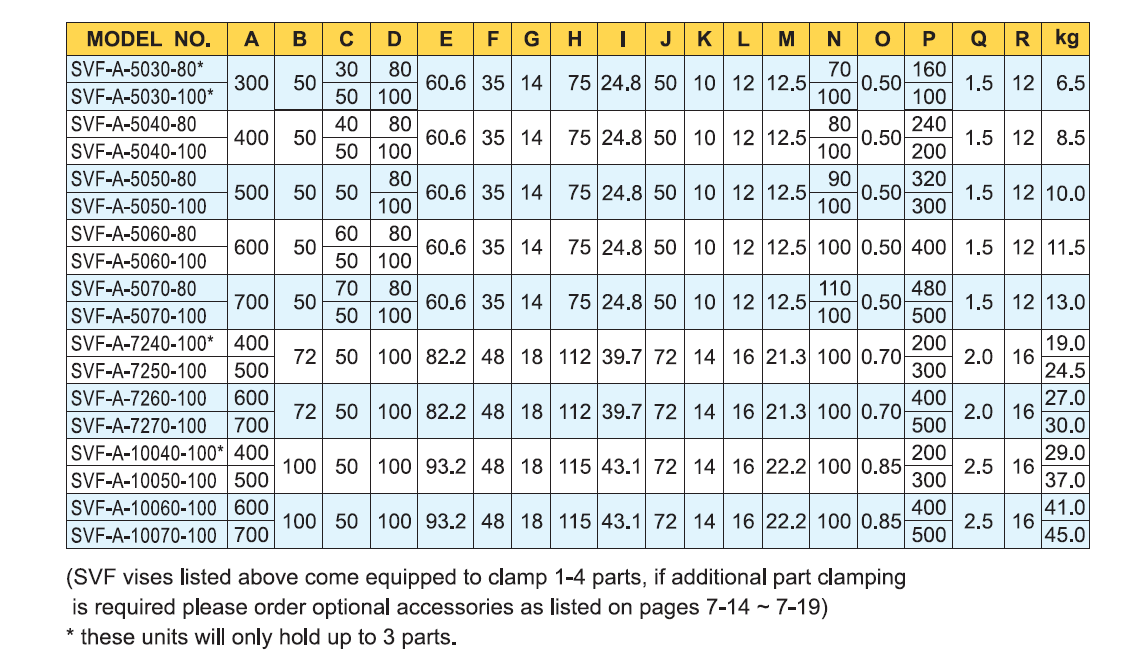

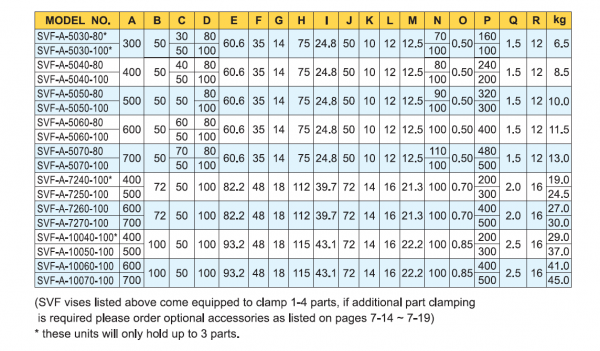

Dimensions
| # | Part No | Length (mm) | Width (mm) | Height of Clamp (mm) | Clamp Force (kN) | Equipped to Hold (pcs) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-A-5030-80 | 300 | 50 | 24.8 | 10 | 3 |
|
£1,124.67 | ||
| 2 | SVF-A-5030-100 | 300 | 50 | 24.8 | 10 | 3 |
|
£1,124.67 | ||
| 3 | SVF-A-5040-80 | 400 | 50 | 24.8 | 10 | 4 |
|
£1,387.17 | ||
| 4 | SVF-A-5040-100 | 400 | 50 | 24.8 | 10 | 4 |
|
£1,387.17 | ||
| 5 | SVF-A-5050-80 | 500 | 50 | 24.8 | 10 | 4 |
|
£1,495.67 | ||
| 6 | SVF-A-5050-100 | 500 | 50 | 24.8 | 10 | 4 |
|
£1,495.67 | ||
| 7 | SVF-A-5060-80 | 600 | 50 | 24.8 | 10 | 4 |
|
£1,584.34 | ||
| 8 | SVF-A-5060-100 | 600 | 50 | 24.8 | 10 | 4 |
|
£1,584.34 | ||
| 9 | SVF-A-5070-80 | 700 | 50 | 24.8 | 10 | 4 |
|
£1,731.34 | ||
| 10 | SVF-A-5070-100 | 700 | 50 | 24.8 | 10 | 4 |
|
£1,731.34 | ||
| 11 | SVF-A-7240-100 | 400 | 72 | 39.7 | 20 | 3 |
|
£1,634.50 | ||
| 12 | SVF-A-7250-100 | 500 | 72 | 39.7 | 20 | 4 |
|
£2,047.50 | ||
| 13 | SVF-A-7260-100 | 600 | 72 | 39.7 | 20 | 4 |
|
£2,129.17 | ||
| 14 | SVF-A-7270-100 | 700 | 72 | 39.7 | 20 | 4 |
|
£2,245.84 | ||
| 15 | SVF-A-10040-100 | 400 | 100 | 43.1 | 30 | 3 |
|
£3,067.17 | ||
| 16 | SVF-A-10050-100 | 500 | 100 | 43.1 | 30 | 4 |
|
£3,323.84 | ||
| 17 | SVF-A-10060-100 | 600 | 100 | 43.1 | 30 | 4 |
|
£3,460.34 | ||
| 18 | SVF-A-10070-100 | 700 | 100 | 43.1 | 30 | 4 |
|
£3,649.34 |
