Leave Flexible Vice (SVF-C)
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description

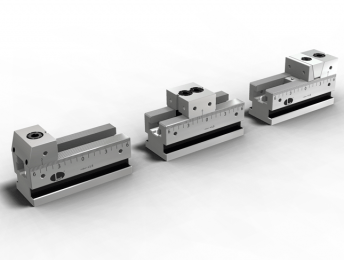

The SVF-C range of flexible vices from Leave are an effortless way of clamping multiple workpieces in your milling machine. Simply position the moving and fixed jaws to suit the size of the workpieces and clamp as many parts in your workspace as you can fit. The SVF-C range of vices use completely separated fixed and movable jaws that can be positioned as required for maxumum flexibility. This removes all constraints on the size of the workpiece. The SVF series of vices are all manufactured from tool steel treated to HRC 55 and fully ground. A range of jaws, parallels, workstops and other accessories is available to maximise the flexibility of this system and allow for regular and irregular shaped workpieces.
Estimated delivery: On Request
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height of Clamp (mm) | Height of base (mm) | Type | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-C-10015-100-A | 148 | 100 | 43 | 72 | Fixed End Jaw |
|
£701.17 | ||
| 2 | SVF-C-10015-100-B | 148 | 100 | 43 | 72 | Fixed Centre Jaw |
|
£782.84 | ||
| 3 | SVF-C-10015-100-C | 148 | 100 | 43 | 72 | Movable wedge Jaw |
|
£941.50 | ||
| 4 | SVF-C-5013-100-A | 130 | 50 | 25 | 50 | Fixed End Jaw |
|
£397.84 | ||
| 5 | SVF-C-5013-100-B | 130 | 50 | 25 | 50 | Fixed Centre Jaw |
|
£410.67 | ||
| 6 | SVF-C-5013-100-C | 130 | 50 | 25 | 50 | Movable wedge Jaw |
|
£473.67 | ||
| 7 | SVF-C-7214-100-A | 140 | 72 | 40 | 72 | Fixed End Jaw |
|
£508.67 | ||
| 8 | SVF-C-7214-100-B | 140 | 72 | 40 | 72 | Fixed Centre Jaw |
|
£548.34 | ||
| 9 | SVF-C-7214-100-C | 140 | 72 | 40 | 72 | Movable wedge Jaw |
|
£663.84 |
