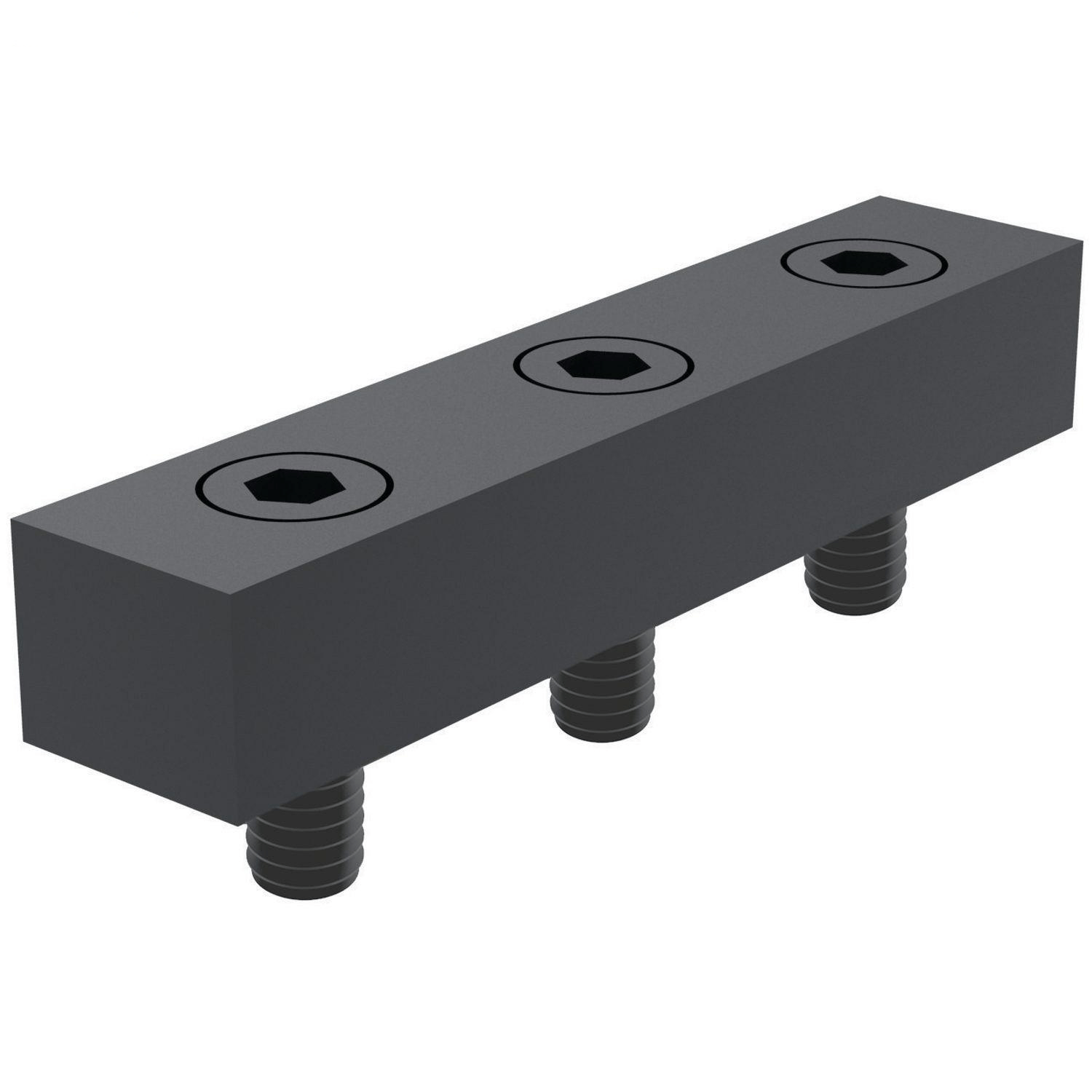

Locating Rails for Jigs and Fixtures
Machinable Stops
Key Features
- Low carbon steel
- Ground and square
- Carbinite coating can add to holding force
Description

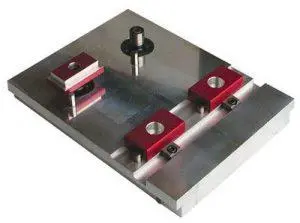

Mitee-bite location rails are ideal for use in conjunction with miteebite clamps for simpler setup of work holding stations.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Depth (mm) | No. of Holes | Pitch (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 83200 | 50 | 15 | 12 | 2 | 20 | £30.10 | ||
| 1 | 83210 | 100 | 15 | 12 | 3 | 30 | £46.64 | ||
| 1 | 83220 | 150 | 15 | 12 | 4 | 30 | £63.33 | ||
| 1 | 83240 | 250 | 15 | 12 | 5 | 50 | £83.13 | ||
| 1 | 83260 | 75 | 24 | 18 | 2 | 35 | £53.19 | ||
| 1 | 83280 | 150 | 24 | 18 | 4 | 30 | £86.57 | ||
| 1 | 83300 | 250 | 24 | 18 | 5 | 50 | £103.10 | ||
| 1 | 33100 | 0.75 | 0.48 | 0.35 | 1 | N/A | £47.54 | ||
| 1 | 33120 | 2 | 0.48 | 0.35 | 2 | 1 | £ Price on application | n/a | |
| 1 | 33140 | 4 | 0.48 | 0.35 | 3 | 1 | £ Price on application | n/a | |
| 1 | 33160 | 6 | 0.48 | 0.35 | 4 | 1.5 | £ Price on application | n/a | |
| 1 | 33180 | 10 | 0.48 | 0.35 | 5 | 2 | £ Price on application | n/a | |
| 1 | 33200 | 3 | 0.73 | 0.48 | 2 | 1.5 | £ Price on application | n/a | |
| 1 | 33220 | 6 | 0.73 | 0.48 | 4 | 1.5 | £ Price on application | n/a | |
| 1 | 33240 | 10 | 0.73 | 0.48 | 5 | 2 | £ Price on application | n/a | |
| 1 | 33260 | 3 | 0.98 | 0.73 | 2 | 1.5 | £ Price on application | n/a | |
| 1 | 33280 | 6 | 0.98 | 0.73 | 3 | 2 | £ Price on application | n/a | |
| 1 | 33300 | 10 | 0.98 | 0.73 | 5 | 2 | £ Price on application | n/a | |
| 1 | 33320 | 6 | 1.23 | 0.98 | 3 | 2 | £ Price on application | n/a | |
| 1 | 33340 | 10 | 1.23 | 0.98 | 4 | 2.5 | £ Price on application | n/a | |
| 1 | 33360 | 6 | 1.98 | 1.48 | 3 | 2 | £ Price on application | n/a | |
| 1 | 33380 | 10 | 1.98 | 1.48 | 4 | 2.5 | £ Price on application | n/a |
