Long Length Machinable Uniforce Clamps
Channel and Wedge
Key Features
- Easy to design and build fixtures
- Holds two parts with equilateral clamping action
- Ideal for clamping irregular shaped work pieces
- Can be cut to desired length
Description

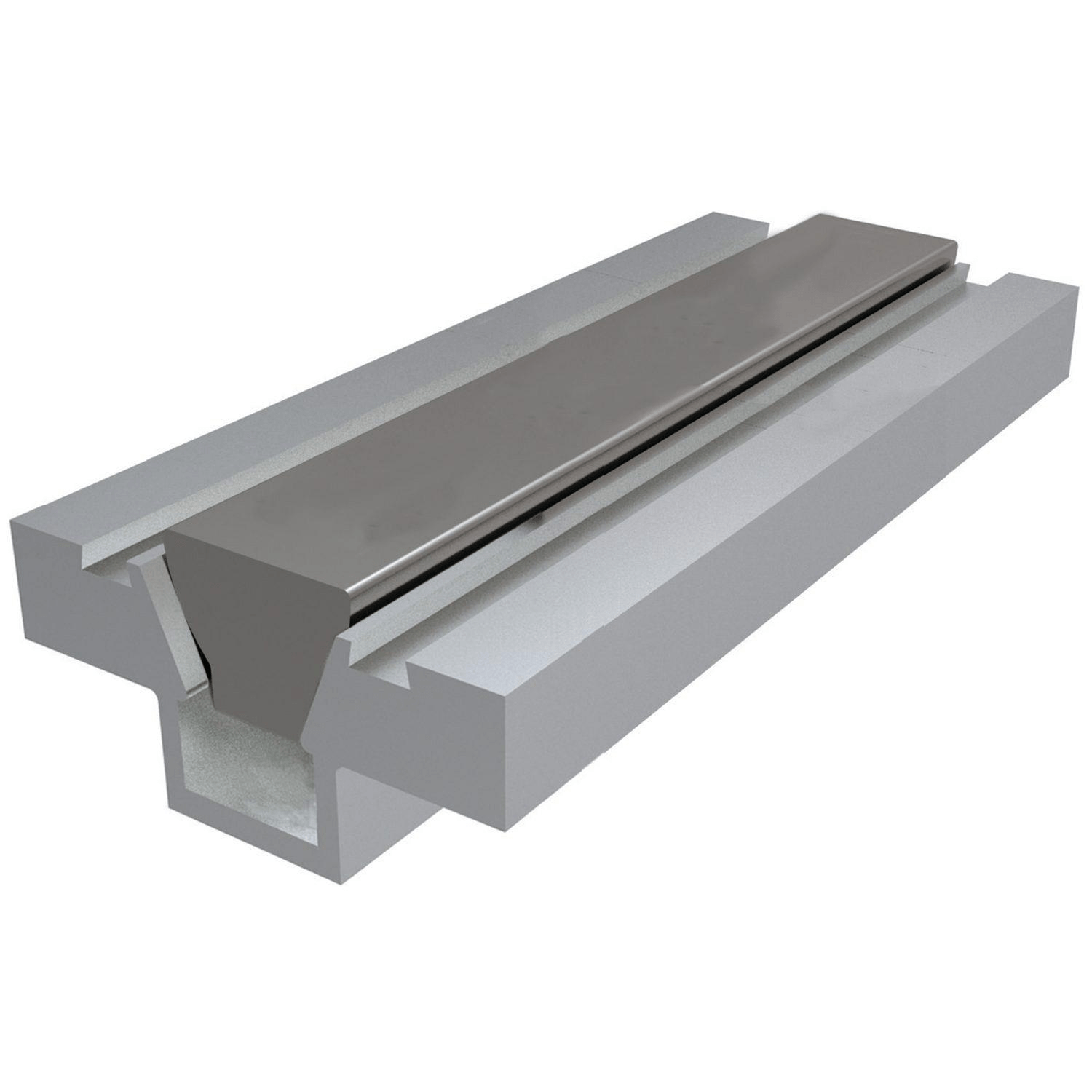

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece, enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. A unique locking plate properly expands the clamp while making it rigid for machining the jaws to your specifications. This form of Uniforce is supplied as seperate channel and wedge in undrilled lengths of 190mm and can be cut to length to suit the workpiece. The specifications in the table are for the assembled clamp and not individual components.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm/inch) | Height (mm) | Length (mm) | Holding force (N) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
