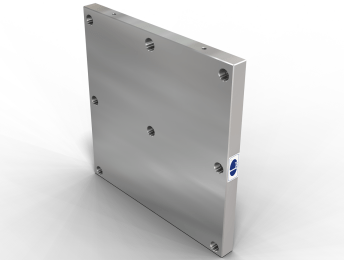

Machinable Sub-Plate
To Suit Modular Tooling Column
Key Features
- Sturdy Cast Iron Design
- Ground Flat and Parallel
Description
Modular quick change subplate to suit the BP13 modular cube. This plate is fully machinable to accept custom fixture designs.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Column | Thckness (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | BP14-40400-0400 | BP13-400400-0450 | 40 |
|
£1,024.34 | ||
| 2 | BP14-40500-0500 | BP13-500500-0555 | 40 |
|
£1,303.17 | ||
| 3 | BP14-40630-0630 | BP13-630630-0690 | 40 |
|
£1,848.00 | ||
| 4 | BP14-50800-0800 | BP13-800800-0860 | 50 |
|
£3,038.00 |
