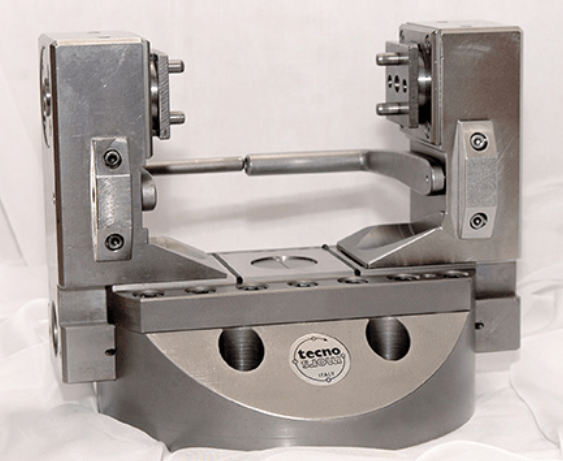

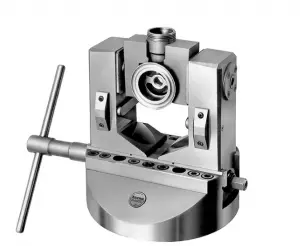

MADT Indexing Chuck
With Draw Bar Clamping and Manual Indexing
Key Features
- big clamping capacity
- good tool clearance thanks to the chuck shape
- versions with long arms for workpieces that need a large area of rotation
- indexing device allowing a quick change between the multiple working axes
Description
MADT chucks series are self-centering. Jaws are actuated through use of the machine drawbar and is indexed manually.• made in special, high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree of precision, reliability and quality• High precision jaw slide ways• indexing movement simple and reliable: a conical shutter guarantees the mechanical indexing. Indexing precision ±1’30”• sealed against coolant, swarf and dust• constant and long lasting precision• easy installation to the machine• standard includes four 90° indexing positions and one at 45°.• On request special indexing positions are available (8×45°, 6×60°)
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Diameter (mm) | Max. Closing Force (N) | Max. Traction Force (N) | Chuck Opening (mm) | Chuck Closing (mm) | Max. Rotation (rpm) | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MADT165C | 160 | 9000 | 14700 | 75 | 59 | 1800 | £ Price on application | |
| 1 | MADT195C | 195 | 14000 | 23000 | 95 | 78 | 1600 | £ Price on application | |
| 1 | MADT220C | 220 | 14000 | 23000 | 120 | 102 | 1500 | £ Price on application | |
| 1 | MADT220L | 220 | 14000 | 23000 | 120 | 102 | 1500 | £ Price on application | |
| 1 | MADT230C | 230 | 13000 | 29000 | 140 | 115 | 1400 | £ Price on application | |
| 1 | MADT230L | 230 | 13000 | 29000 | 140 | 115 | 1400 | £ Price on application | |
| 1 | MADT250C | 250 | 16500 | 36200 | 150 | 123 | 1300 | £ Price on application | |
| 1 | MADT250L | 250 | 16500 | 36200 | 150 | 123 | 1300 | £ Price on application | |
| 1 | MADT275C | 275 | 16500 | 36200 | 175 | 147 | 1200 | £ Price on application | |
| 1 | MADT275L | 275 | 16500 | 36200 | 175 | 147 | 1200 | £ Price on application | |
| 1 | MADT315C | 315 | 16500 | 36200 | 210 | 180 | 1000 | £ Price on application | |
| 1 | MADT315L | 315 | 16500 | 36200 | 210 | 180 | 1000 | £ Price on application | |
| 1 | MADT350C | 350 | 22000 | 45500 | 230 | 198 | 800 | £ Price on application | |
| 1 | MADT350L | 350 | 22000 | 45500 | 230 | 198 | 800 | £ Price on application |
