Manual Actuators for Mills and Lathes
For Use with Xpansion Clamps
Key Features
- Adapt standard expanding mandrels for blind holes
- Compatible with metric ID Xpansion clamps
- Milling and turning versions available
Description

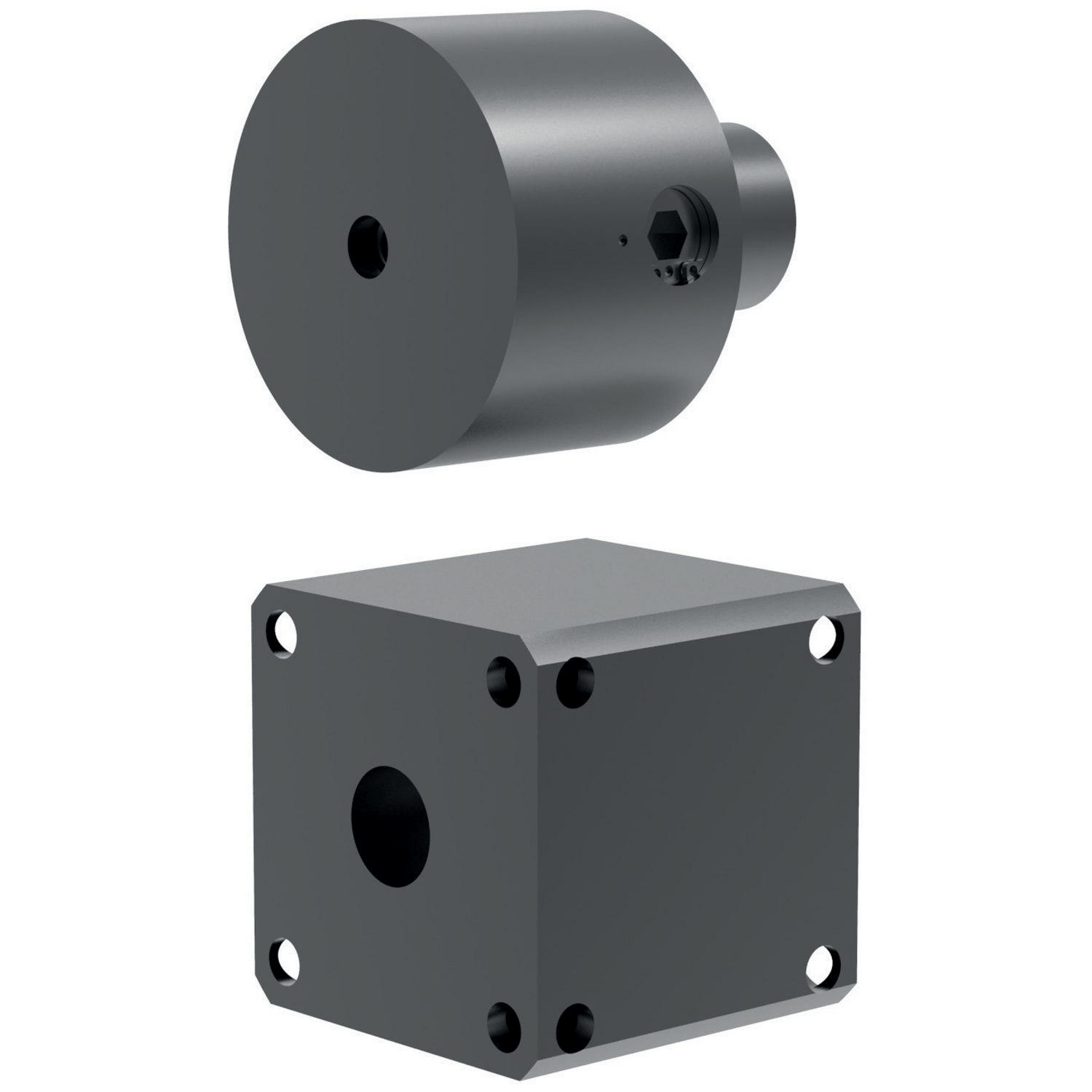

Manual actuators for use with the Miteebite range of ID Xpansion clamps. These Actuators are specifically designed for gripping the ID of blind holes but may also be incorporated in many applications that require a straight draw actuated 90 degrees from the drive screw. They are capable of gripping on bores ranging from 4.1mm to 35.3mm using our standard ID clamps. Both styles of Actuators come completely assembled with the heat-treated cylinders tapped for the following clamp drive screws: M2, M4, M6, M8, M10 and M12.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Application | Shank (mm/inch) | Cylinder thread | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 34502 | Metric | Mill | N/A | M2 | £146.37 | ||
| 1 | 34504 | Metric | Mill | N/A | M4 | £146.37 | ||
| 1 | 34506 | Metric | Mill | N/A | M6 | £146.37 | ||
| 1 | 34508 | Metric | Mill | N/A | M8 | £146.37 | ||
| 1 | 34510 | Metric | Mill | N/A | M10 | £146.37 | ||
| 1 | 34512 | Metric | Mill | N/A | M12 | £146.37 | ||
| 1 | 34602 | Imperial | Lathe | 1 | M2 | £113.17 | ||
| 1 | 34604 | Imperial | Lathe | 1 | M4 | £113.17 | ||
| 1 | 34606 | Imperial | Lathe | 1 | M6 | £113.17 | ||
| 1 | 34608 | Imperial | Lathe | 1 | M8 | £113.17 | ||
| 1 | 34610 | Imperial | Lathe | 1 | M10 | £113.17 | ||
| 1 | 34612 | Imperial | Lathe | 1 | M12 | £113.17 | ||
| 1 | 38602 | Metric | Lathe | 25 | M2 | £ Price on application | n/a | |
| 1 | 38604 | Metric | Lathe | 25 | M4 | £ Price on application | n/a | |
| 1 | 38606 | Metric | Lathe | 25 | M6 | £ Price on application | n/a | |
| 1 | 38608 | Metric | Lathe | 25 | M8 | £ Price on application | n/a | |
| 1 | 38610 | Metric | Lathe | 25 | M10 | £ Price on application | n/a | |
| 1 | 38612 | Metric | Lathe | 25 | M12 | £ Price on application | n/a |
