Mastermill
Electro-permanent Magnetic Chuck for Milling

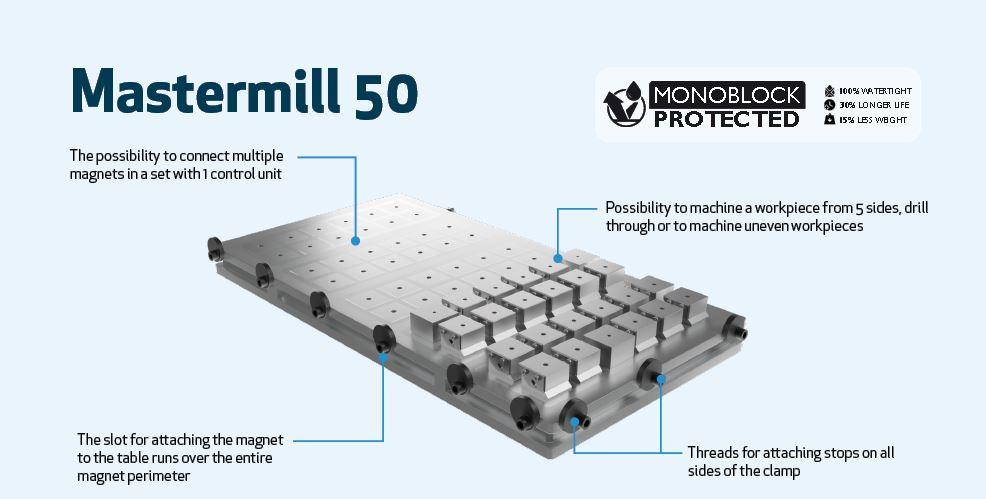

Key Features
- Can connect multiple magnets upto a single control unit
- Ability to machine 5 sides of a component
- 170N/cm2 of holding force - Custom sizes available
- Holds wide range of workpieces with a minimum size of 50 x 110 x 12mm
Description
MasterMill Magnetic Chuck

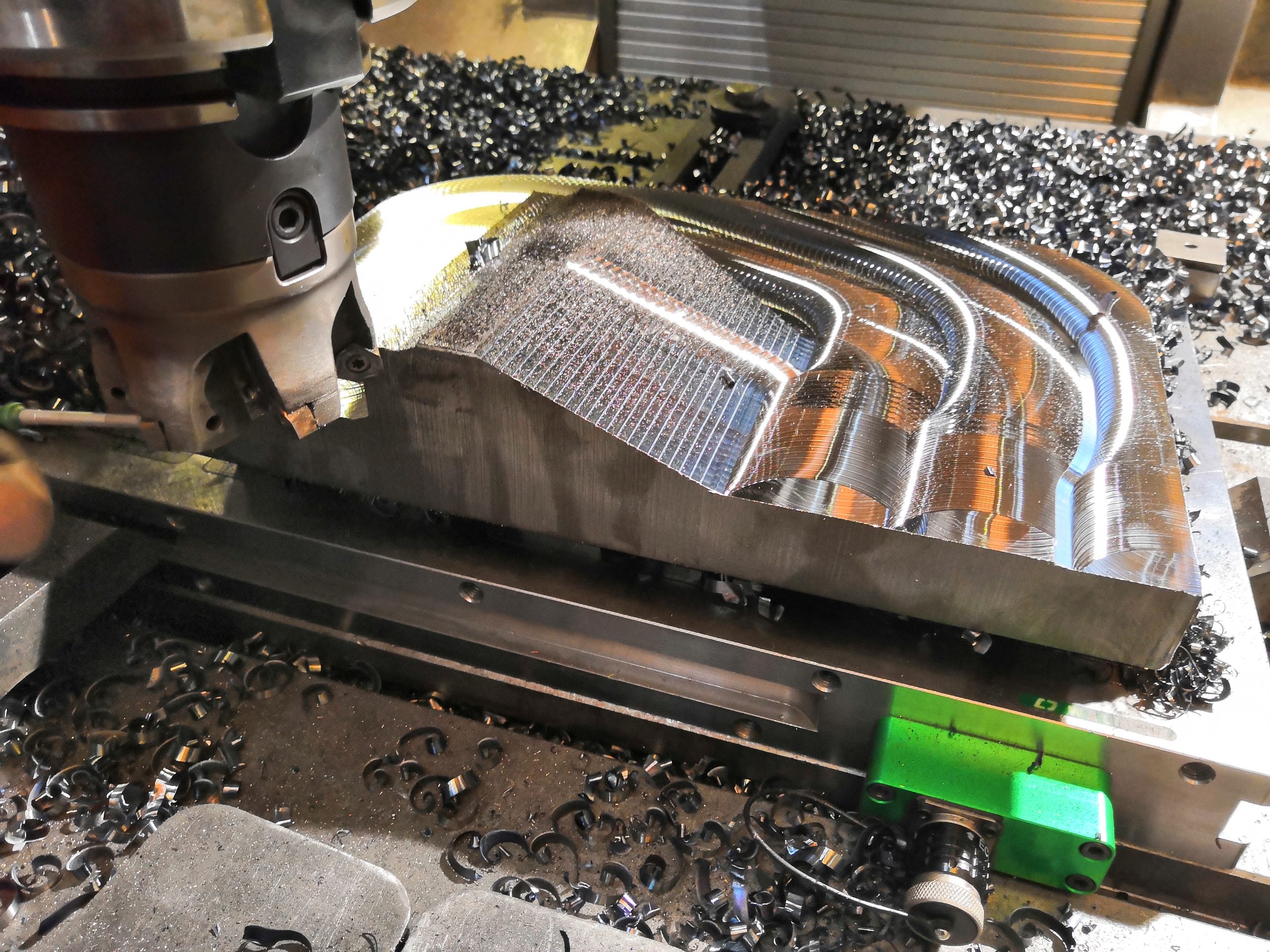

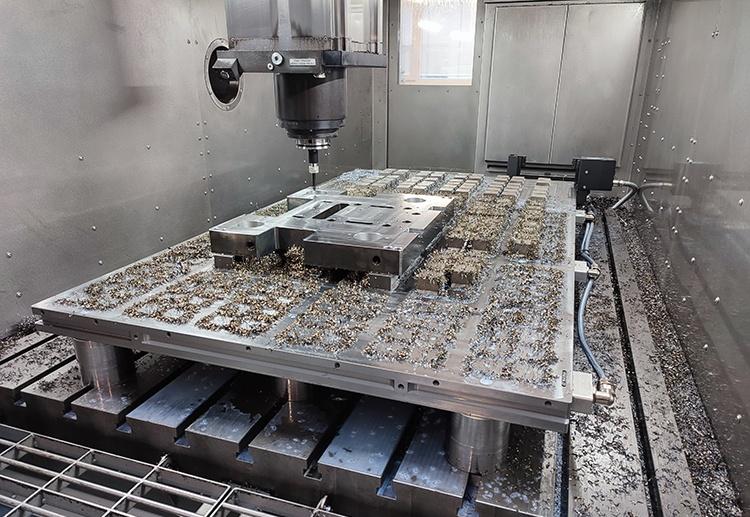

If you are looking for a versatile magnetic chuck for milling and drilling of small and large workpieces The MasterMill Magnetic Chuck . Is the right choice. Using pole extensions, the material can be machined from 5 sides, drilled through, and uneven material can be machined as well. For optimum holding force, the required workpiece thickness is a minimum of 12 mm. Advantages:- Possibility to machine the workpiece from 5 sides, drill through or machine uneven workpieces
- The stop blocks can be moved freely to any side
- Slot round the entire perimeter – for easy attachment to the machine table
- Possibility to perform through going holes for additional fixing to table
- Low compact design
- 6 m-long armoured power supply cable
- Possibility to connect a set of several magnets to a single control unit
- Top plate in steel/stainless steel combination guarantees high mechanical durability and thermal resistance.
Estimated delivery: On Request
Dimensions
| # | Part No | Number of Poles | Width (mm) | Length (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | MM50300430 | 24 | 300 | 430 | 51 | £3,894.00 | ||
| 1 | MM50300490 | 24 | 300 | 490 | 51 | £4,157.00 | ||
| 1 | MM50300600 | 32 | 300 | 600 | 51 | £4,735.00 | ||
| 1 | MM50300800 | 40 | 300 | 800 | 51 | £4,999.00 | ||
| 1 | MM50300900 | 48 | 300 | 900 | 51 | £5,525.00 | ||
| 1 | MM50420430 | 42 | 430 | 51 | £4,994.00 | |||
| 1 | MM50420600 | 48 | 420 | 600 | 51 | £6,210.00 | ||
| 1 | MM50420800 | 60 | 420 | 800 | 51 | £7,841.00 | ||
| 1 | MM50420900 | 72 | 420 | 900 | 51 | £9,210.00 | ||
| 1 | MM50420990 | 72 | 420 | 990 | 51 | £10,155.00 | ||
| 1 | MM50480490 | 42 | 480 | 490 | 51 | £5,735.00 | ||
| 1 | MM50480600 | 56 | 480 | 600 | 51 | £6,999.00 | ||
| 1 | MM50480800 | 70 | 480 | 800 | 51 | £8,577.00 | ||
| 1 | MM50480900 | 84 | 480 | 900 | 51 | £9,629.00 | ||
| 1 | MM50480990 | 84 | 480 | 990 | 51 | £10,050.00 | ||
| 1 | MM50580600 | 64 | 580 | 600 | 51 | £7,997.00 | ||
| 1 | MM50580800 | 80 | 580 | 800 | 51 | £9,472.00 | ||
| 1 | MM50580900 | 96 | 580 | 900 | 51 | £10,261.00 | ||
| 1 | MM50580990 | 96 | 580 | 990 | 51 | £10,841.00 |
